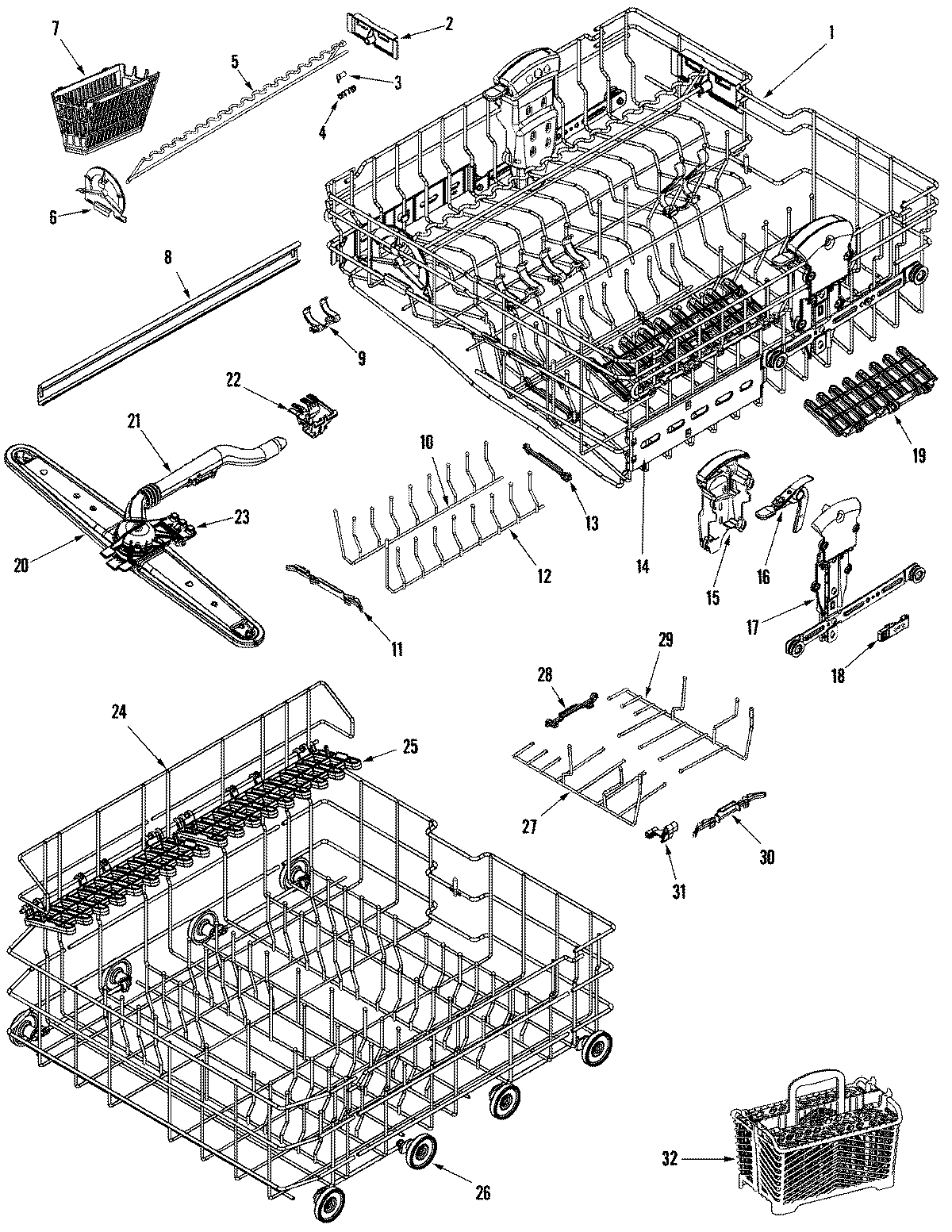

JDB1250AWQ 03 – RAIL & RACK ASSEMBLY

Products

Position	Product
1	MAY 99003214
2	MAY 99003109
3	MAY 99003111
4	MAY 99002715
5	MAY 99003110
6	MAY 99003108
7	W11175758 Whirlpool Dishwasher Basket Ware
8	WP99003282 Whirlpool Dishwasher Rail Stop
8	MAY 99003066
8	MAY 99003069
8	WP99003068 Whirlpool Dishwasher Bearing
9	MAY 99003107
11	WP99003106 Whirlpool Latch Assembly
12	WP99003496 Whirlpool Convertible Row Tine
13	WP99003105 Whirlpool Dishwasher Fold Away Tine Pivot Clip
14	MAY 99003063
15	MAY 99003191
16	MAY 99003192
17	MAY 99003195
17	WPW10153533 Whirlpool Dishwasher Adjuster
17	MAY 99003010
18	MAY 99003193
19	MAY 99003065
20	WP99003070 Whirlpool Dishwasher Wash Arm
21	MAY 99003142
22	99003071 Whirlpool Dishwasher Upper Wash Manifold Clip
23	MAY 99003072
24	MAY 99003099
24	MAY 99003062
25	MAY 99003074
26	WP99003149 Whirlpool Rack Wheel
27	MAY 99003112
28	WP99003003 Whirlpool Dishwasher Convertible Tine Pivot Clip
29	MAY 99003113
30	WP99003115 Whirlpool Dishwasher Clip
31	MAY 99003116
32	WP6-918873 Whirlpool Silverware Basket
32	MAY 99003102
