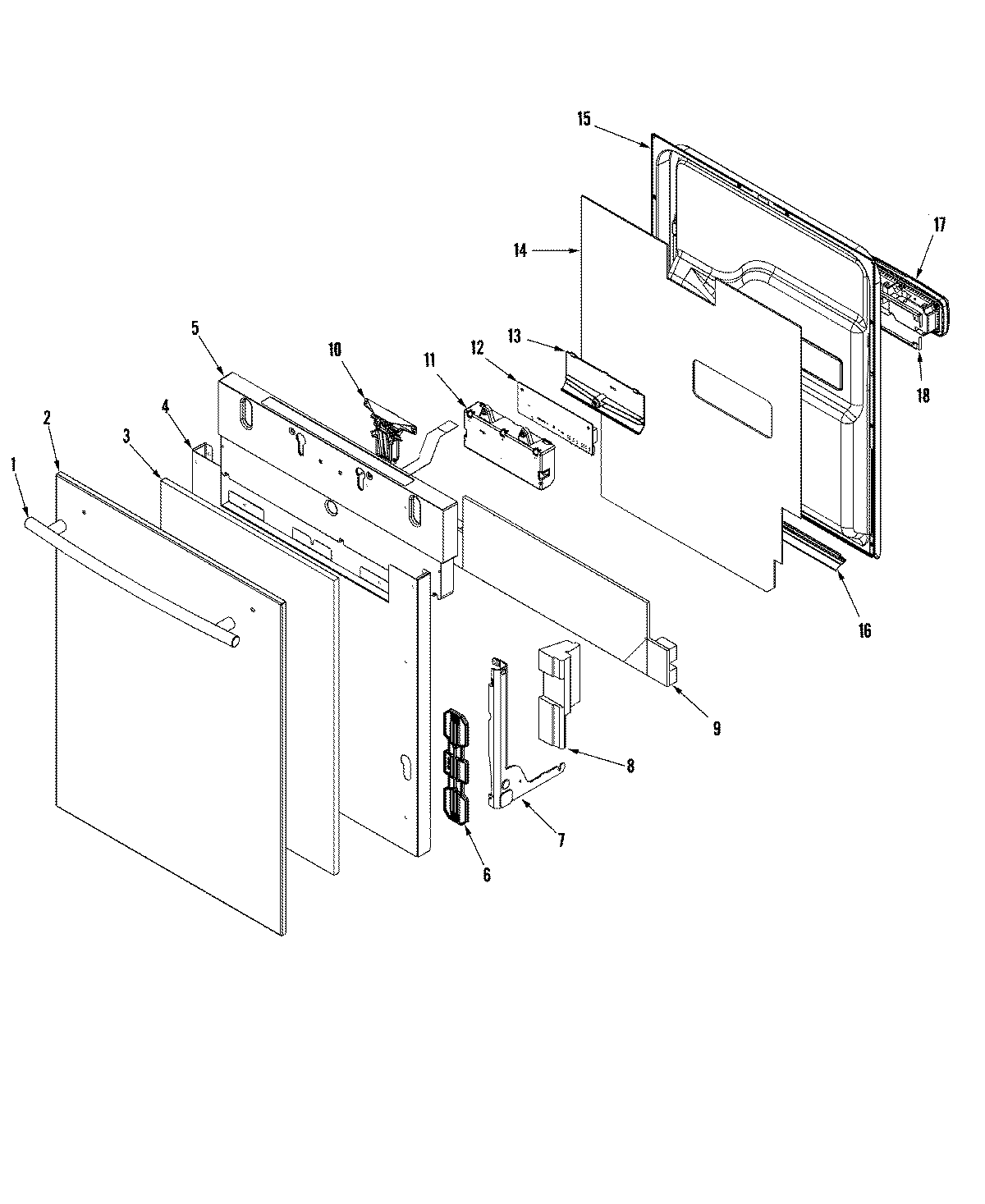

JDB1250AWW 01 – CONTROL PANEL & DOOR

Products

Position	Product
1	SCREW-TRUSS HEAD 1/4-20 T20
1	MAY 99003088
1	W10167659 Whirlpool Dishwasher Plate
2	MAY 99003092
3	MAY 99003093
4	SUPPORT, INNER DOOR (BLK)
4	MAY 99002934
5	MAY 99003139
6	MAY 99003095
6	99003096 Whirlpool Dishwasher Panel Fastener
7	MAY 99003049
7	MAY 99002929
7	MAY 99001075
7	WPW10118637 Whirlpool Dishwasher Bracket
8	MAY 99003047
8	MAY 99003046
9	MAY 99003048
10	MAY 99002751
10	WPW10275768 Whirlpool Door Latch
11	WP99002576 Whirlpool Dishwasher Cover
12	MAY 99003158
12	MAY 99003432
12	MAY 99003614
13	MAY 99002575
14	MAY 99003044
15	MAY 99003140
15	WPY912620 Whirlpool Dishwasher Screw
16	MAY 99003045
17	MAY 99002270
17	MAY 99003060
17	MAY 99003059
18	SCREW, No.8X1/2 HEX WASHER HEAD
18	MAY 99002465
