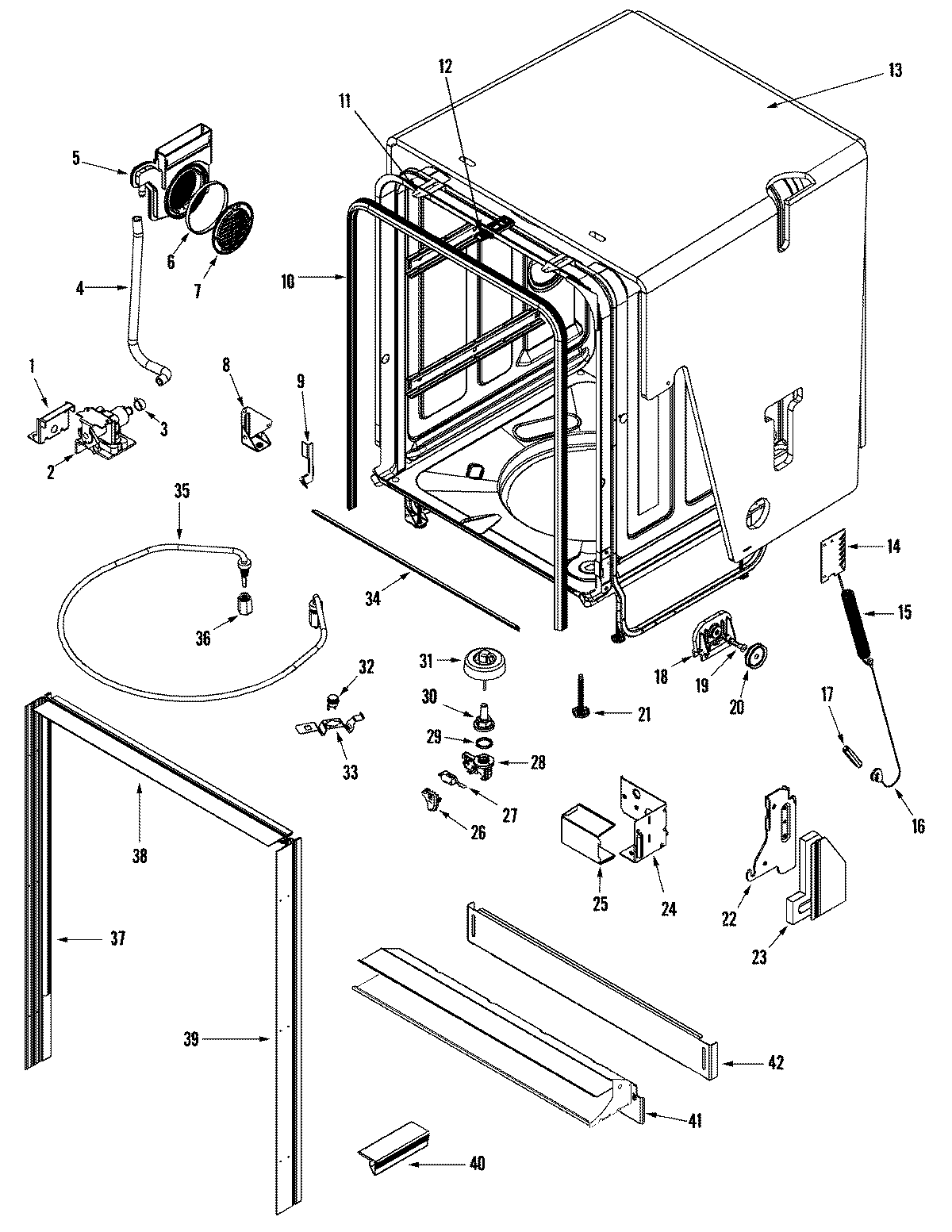

JDB1250AWW 05 – TUB
Written by
in
JDB1250AWW 05 – TUB
Products
Position
Product
1
MAY 99002629
2
W11082871 Whirlpool Dishwasher Inlet Valve
2
MAY 99002553
3
WP596669 Whirlpool Hose Clamp
4
WP99002852 Whirlpool Dishwasher Injector Hose
5
MAY 99003028
6
WP99002150 Whirlpool Dishwasher Air Seal
7
MAY 99003078
8
BRACKET, SUPPORT (LT)
9
MAY 99003038
9
WP99003039 Whirlpool Dishwasher Trim
10
WP99003337 Whirlpool Door Seal
11
MAY 99002648
12
MAY 99003357
12
WP99002644 Whirlpool Dishwasher Door Striker
13
WPW10223013 Whirlpool Dishwasher Insulation Pad
13
FASTENER, INSULATION
14
6-918346 Whirlpool Dishwasher Bracket
15
WP99003118 Whirlpool Door Spring
16
WP99003446 Whirlpool Door Cable
18
MAY 99002607
18
MAY 99003686
19
MAY 99002609
19
MAY 99003688
19
MAY 99003687
20
WP99002608 Whirlpool Dishwasher Cable Roller
21
WPW10143258 Whirlpool Dishwasher Leg Leveler
22
MAY 99002927
22
MAY 99002928
23
BACKER, HINGE SEAL (RT)
23
MAY 99003151
23
BACKER, HINGE SEAL (RT)
23
BACKER, HINGE SEAL (LT)
24
BRACKET, JUNCTION BOX SUPPORT
24
SCREW 10-32X.400 (T-20 HEAD)
25
MAY 912365
25
MAY 99002638
26
MAY 99003079
27
MAY 99002631
28
MAY 99003031
29
W10833055 Whirlpool Dishwasher Standpipe
30
WPW10268755 Whirlpool Dishwasher Float
31
MAY 99003080
32
MAY 99002633
33
MAY 99001008
34
WP99003041 Whirlpool Dishwasher Trim
35
W10283681 Whirlpool Dishwasher Heater
35
MAY 99002973
36
MAY 99003033
37
MAY 99003128
37
MAY 99003034
38
MAY 99003036
39
MAY 99003035
39
MAY 99002692
39
MAY 99003129
40
GAP SEAL, TOE KICK (WHT)
41
MAY 99003153
41
MAY 99003131
42
MAY 99002698
42
SCREW, ACCESS PANEL
42
MAY 99002766
43
MAY 99003087
←
