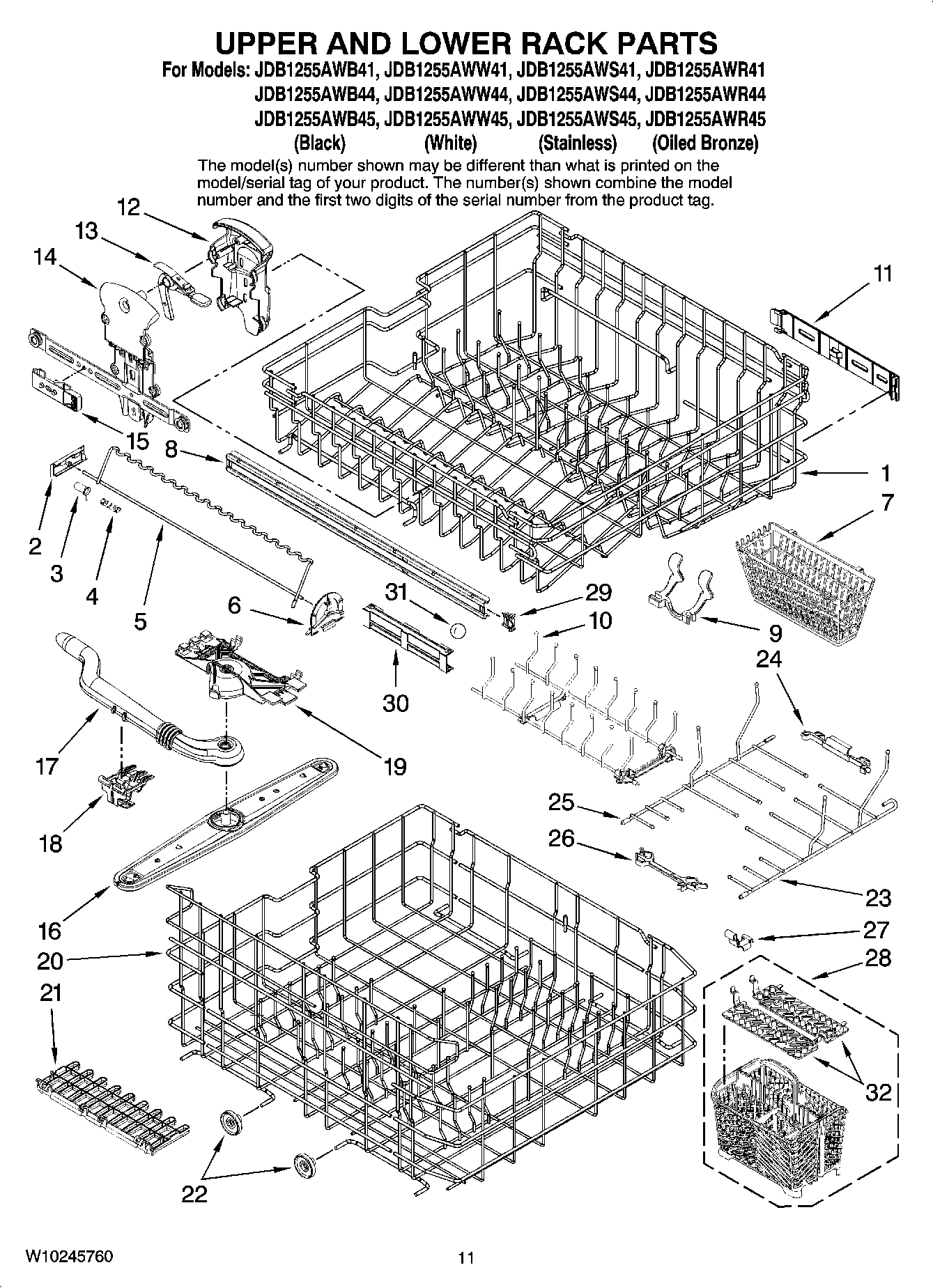

JDB1255AWB45 09 – UPPER AND LOWER RACK PARTS

JDB1255AWB45 09 – UPPER AND LOWER RACK PARTS

Written by

in

JDB1255AWB45 09 – UPPER AND LOWER RACK PARTS

Products

PositionProduct
1MAY W10137106
2VARILOCK (REAR)
3MAY 99003245
4MAY 99002715
5MAY 99003246
6VARILOCK (FRT)
7MAY 99003248
8MAY W10144736
9MAY 99003249
10WP99003496 Whirlpool Convertible Row Tine
11MAY 99003250
11MAY 99003251
12MAY 99003277
13MAY 99003276
14MAY W10153535
14MAY W10153536
15MAY 99003278
16Wash Arm, Top (with Retainer)
17MAY 99003142
1899003071 Whirlpool Dishwasher Upper Wash Manifold Clip
19MAY 99003072
20MAY W10137099
21SHELF, CUP (UPR)
22WP99003149 Whirlpool Rack Wheel
23TINE, CONV.(FRONT)
24PIVOT, CONVERTIBLE TINE
25TINE, CONV.(REAR)
26MAY W10191636
27MAY 99003116
28BASKET, SILVERWARE (SPLIT/FIT)
29MAY W10169391
30MAY 99003069
31WP99003068 Whirlpool Dishwasher Bearing
32MAY 99003270
