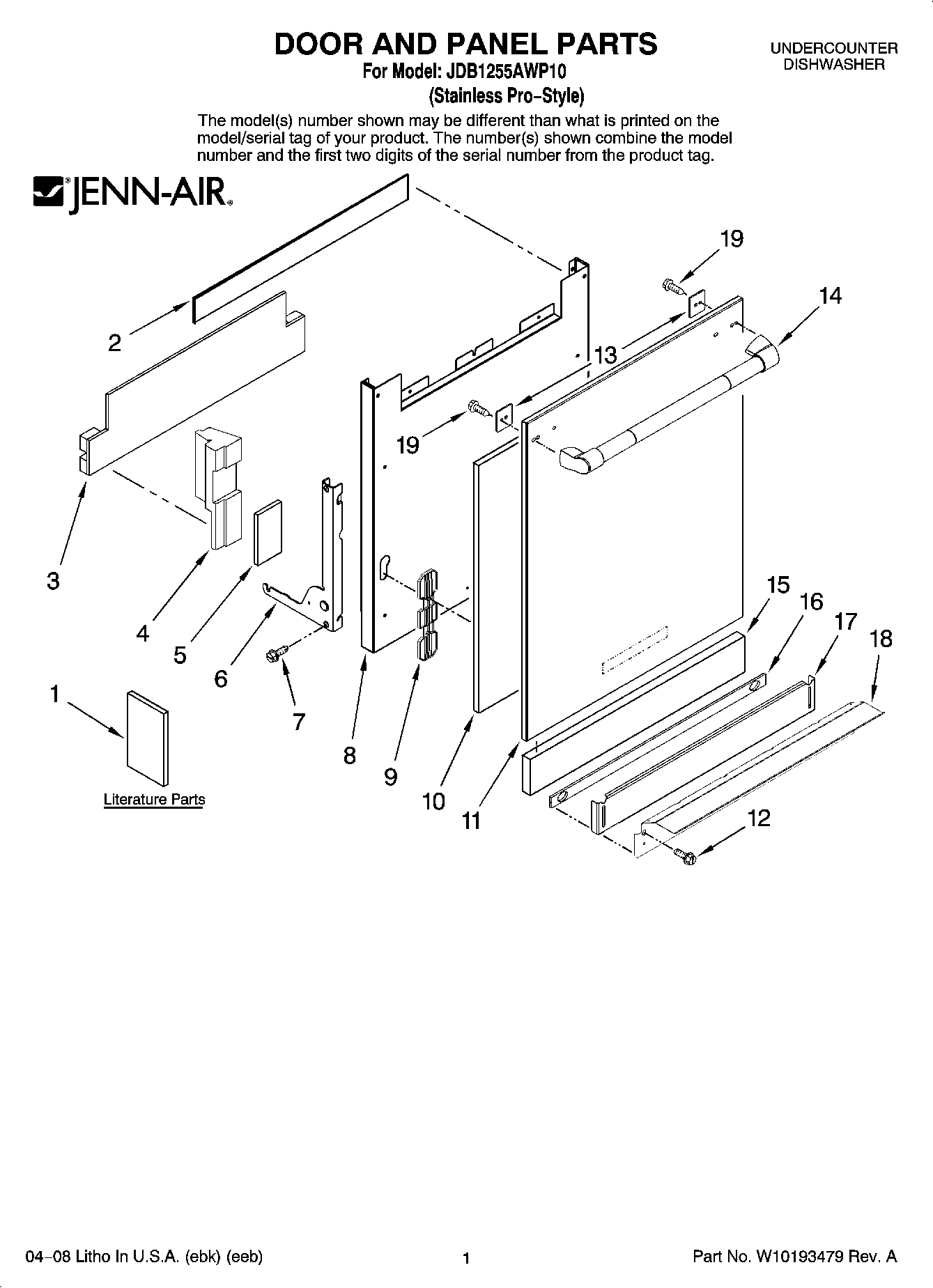

JDB1255AWP10 01 – DOOR AND PANEL PARTS

JDB1255AWP10 01 – DOOR AND PANEL PARTS

Written by

in

JDB1255AWP10 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10164024
1MAY W10119999
1MAY W10158012
2DAMPER (2“ X 20“)
3MAY 99003048
4MAY 99003046
4MAY 99003047
5MAY 99003049
6MAY W10118635
6MAY W10118636
7MAY 99001075
8SUPPORT, INNER DOOR (BLK)
9MAY 99003095
10MAY 99003093
12WP6-912366 Whirlpool Dishwasher Screw
13W10167659 Whirlpool Dishwasher Plate
14Handle, Door (S.Steel (Pro- Style Assy))
15WP6-920587 Whirlpool Dishwasher Shield
16Damper, Toe Panel (Black)
17PANEL, TOE (W/DAMPER-BLK)
18SUPPORT, FRONT (W/SEALS)(BLK)
19SCREW-TRUSS HEAD 10-24 T20
