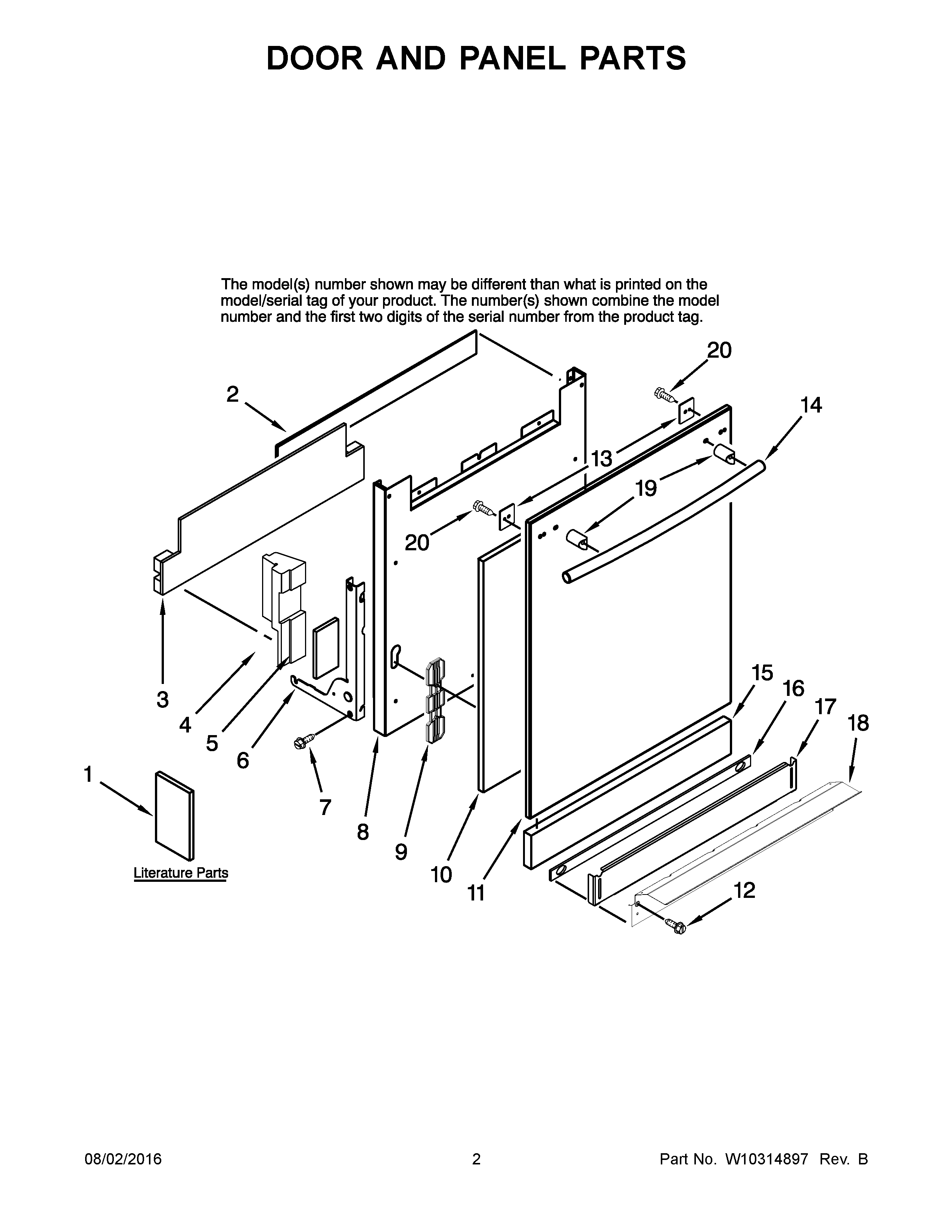

JDB1255AWP2 02 – DOOR AND PANEL PARTS

JDB1255AWP2 02 – DOOR AND PANEL PARTS

Written by

in

JDB1255AWP2 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1BMAY W10157785
1MAY W10212195
1AMAY W10260101
2DAMPER (2“ X 20“)
3MAY 99003048
4AMAY 99003047
4MAY 99003046
5MAY 99003049
6AMAY W10118637
6MAY W10118638
7MAY 99001075
8SUPPORT, INNER DOOR (BLK)
9MAY 99003095
10MAY 99003093
11DPanel, Front (S.Steel(Pro-Style))
11CMAY W10111560
11MAY 99003090
11BMAY W10166535
11AMAY 99003092
12WP6-912366 Whirlpool Dishwasher Screw
12ASCREW, ACCESS PANEL
13MAY W10167659
14MAY W10191101
14AHandle, Door (S.Steel (Pro- Style Assy))
15WP6-920587 Whirlpool Dishwasher Shield
16Damper, Toe Panel (Black)
16AMAY 99002698
17PANEL, TOE (W/DAMPER-BLK)
17AMAY 99002766
18MAY 99002591
18AMAY 99002593
19MAY Y6918667
20SCREW-TRUSS HEAD 1/4-20 T20
