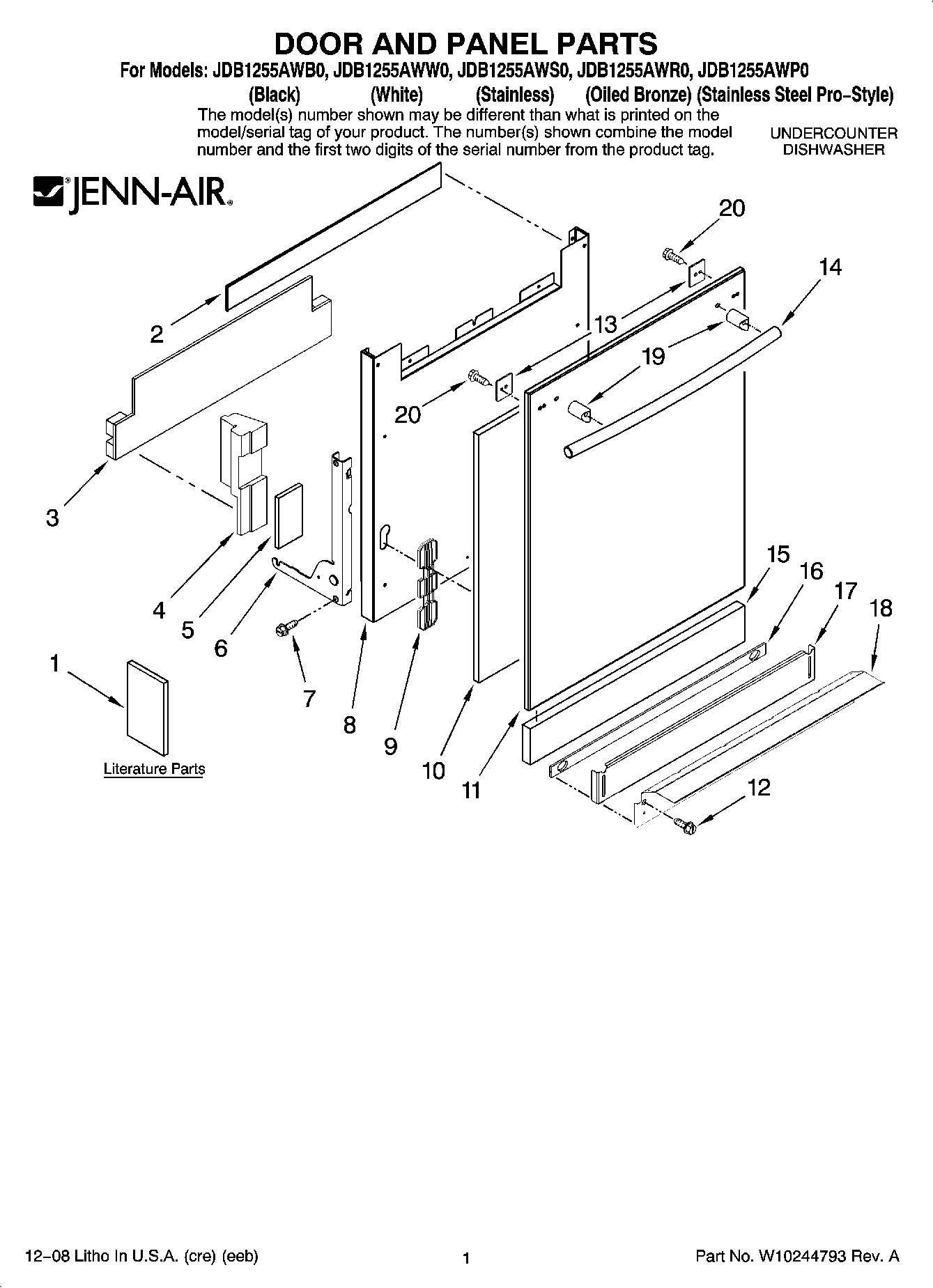

JDB1255AWR0 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	MAY W10208028
1	MAY W10158012
1	MAY W10157785
2	DAMPER (2“ X 20“)
3	MAY 99003048
4	MAY 99003046
4	MAY 99003047
5	MAY 99003049
6	MAY W10118637
6	MAY W10118638
7	MAY 99001075
8	SUPPORT, INNER DOOR (BLK)
9	MAY 99003095
10	MAY 99003093
11	Panel, Front (S.Steel(Pro-Style))
11	MAY W10111560
11	MAY 99003090
11	MAY W10166535
11	MAY 99003092
12	WP6-912366 Whirlpool Dishwasher Screw
12	SCREW, ACCESS PANEL
13	MAY W10167659
14	Handle, Door (S.Steel (Pro- Style Assy))
14	MAY W10191101
15	WP6-920587 Whirlpool Dishwasher Shield
16	Damper, Toe Panel (Black)
16	MAY 99002698
17	PANEL, TOE (W/DAMPER-BLK)
17	MAY 99002766
18	MAY 99002591
18	MAY 99002593
19	MAY Y6918667
20	SCREW-TRUSS HEAD 1/4-20 T20
