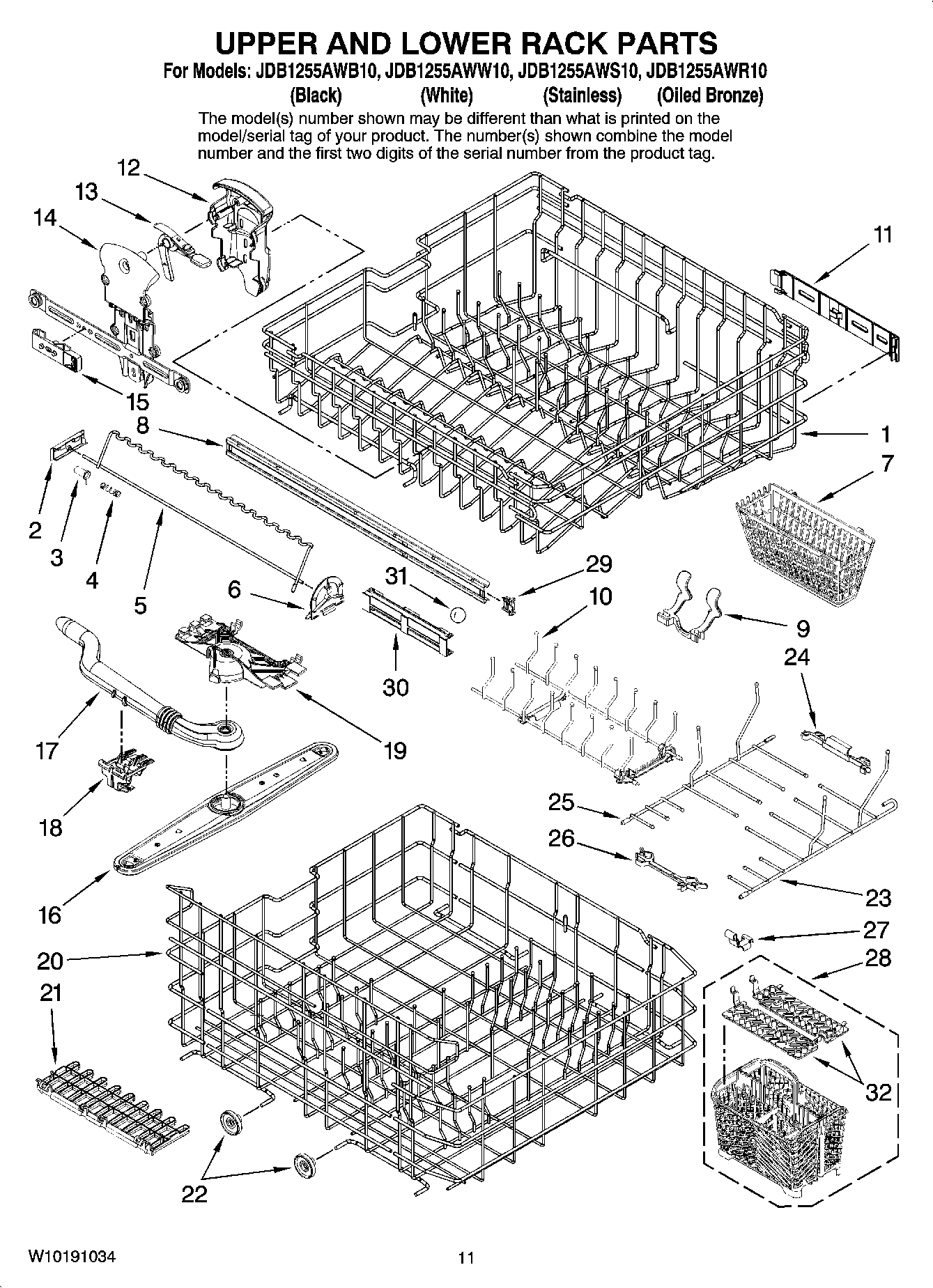

JDB1255AWS10 09 – UPPER AND LOWER RACK PARTS

Products

Position	Product
1	MAY W10137106
2	VARILOCK (REAR)
3	MAY 99003245
4	MAY 99002715
5	MAY 99003246
6	VARILOCK (FRT)
7	MAY 99003248
8	MAY W10144736
9	MAY 99003249
10	WP99003496 Whirlpool Convertible Row Tine
11	MAY 99003250
11	MAY 99003251
12	MAY 99003277
13	MAY 99003276
14	MAY W10153535
14	MAY W10153536
15	MAY 99003278
16	Wash Arm, Top (with Retainer)
17	MAY 99003142
18	99003071 Whirlpool Dishwasher Upper Wash Manifold Clip
19	MAY 99003072
20	MAY W10137099
21	SHELF, CUP (UPR)
22	WP99003149 Whirlpool Rack Wheel
23	TINE, CONV.(FRONT)
24	PIVOT, CONVERTIBLE TINE
25	TINE, CONV.(REAR)
26	MAY W10191636
27	MAY 99003116
28	BASKET, SILVERWARE (SPLIT/FIT)
29	MAY W10169391
30	MAY 99003069
31	WP99003068 Whirlpool Dishwasher Bearing
32	MAY 99003270
