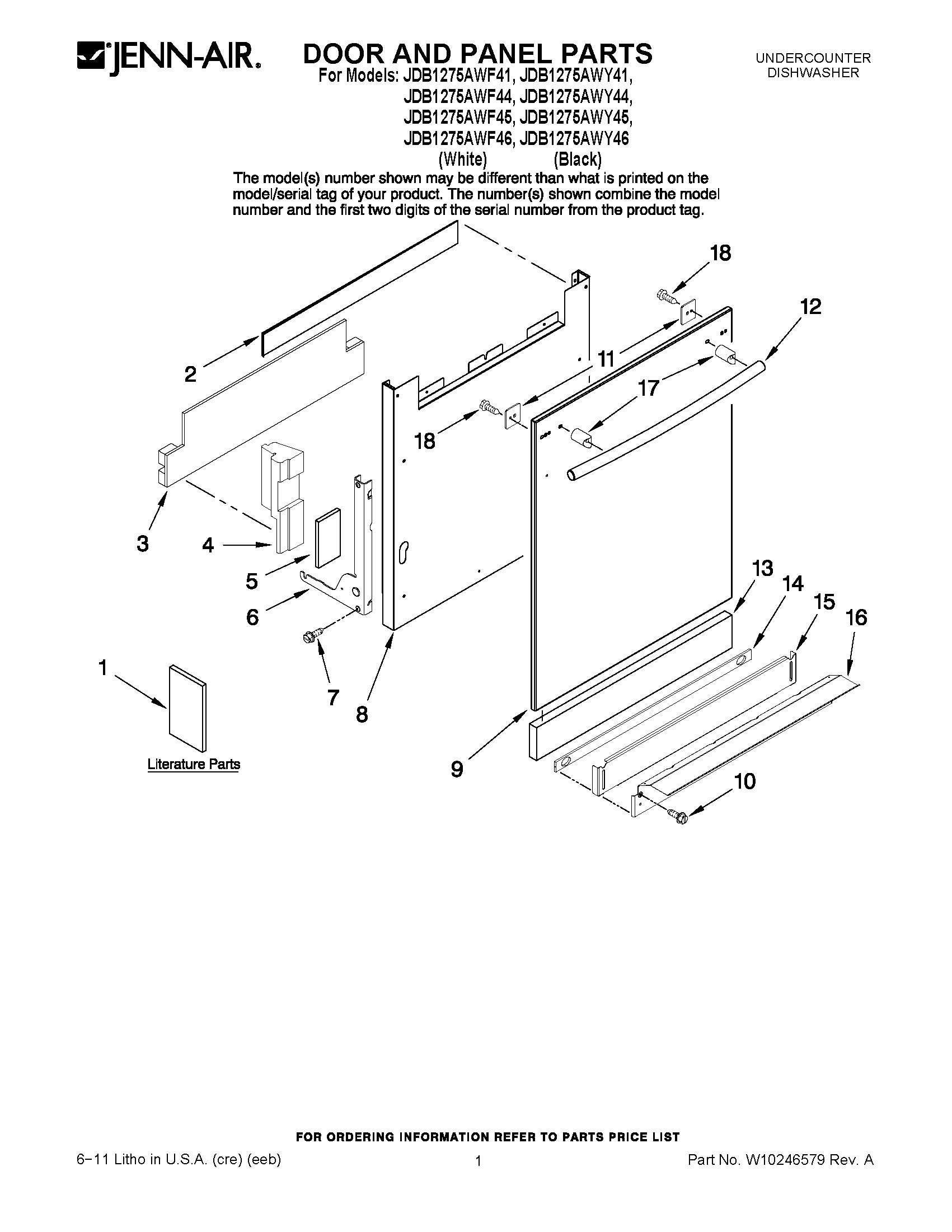

JDB1275AWF41 01 – DOOR AND PANEL PARTS

JDB1275AWF41 01 – DOOR AND PANEL PARTS

Written by

in

JDB1275AWF41 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10158012
1MAY W10119999
1MAY W10164024
2MAY 99003044
3MAY 99003048
4MAY 99003047
4MAY 99003046
5MAY 99003049
6MAY W10118635
6MAY W10118636
7MAY 99001075
8Support, Inner Door (White)
8SUPPORT, INNER DOOR (BLK)
9MAY 99003095
10MAY 99003093
11Panel, Front (Black Glass)
11Panel, Front (White Glass)
12SCREW, ACCESS PANEL
12WP6-912366 Whirlpool Dishwasher Screw
13W10167659 Whirlpool Dishwasher Plate
14MAY 99003088
15WP6-920587 Whirlpool Dishwasher Shield
16Damper, Toe Panel (Black)
16MAY 99002698
17MAY 99002766
17PANEL, TOE (W/DAMPER-BLK)
18SUPPORT, FRONT (W/SEALS)(BLK)
18SUPPORT, FRONT (W/SEALS)(WHT)
