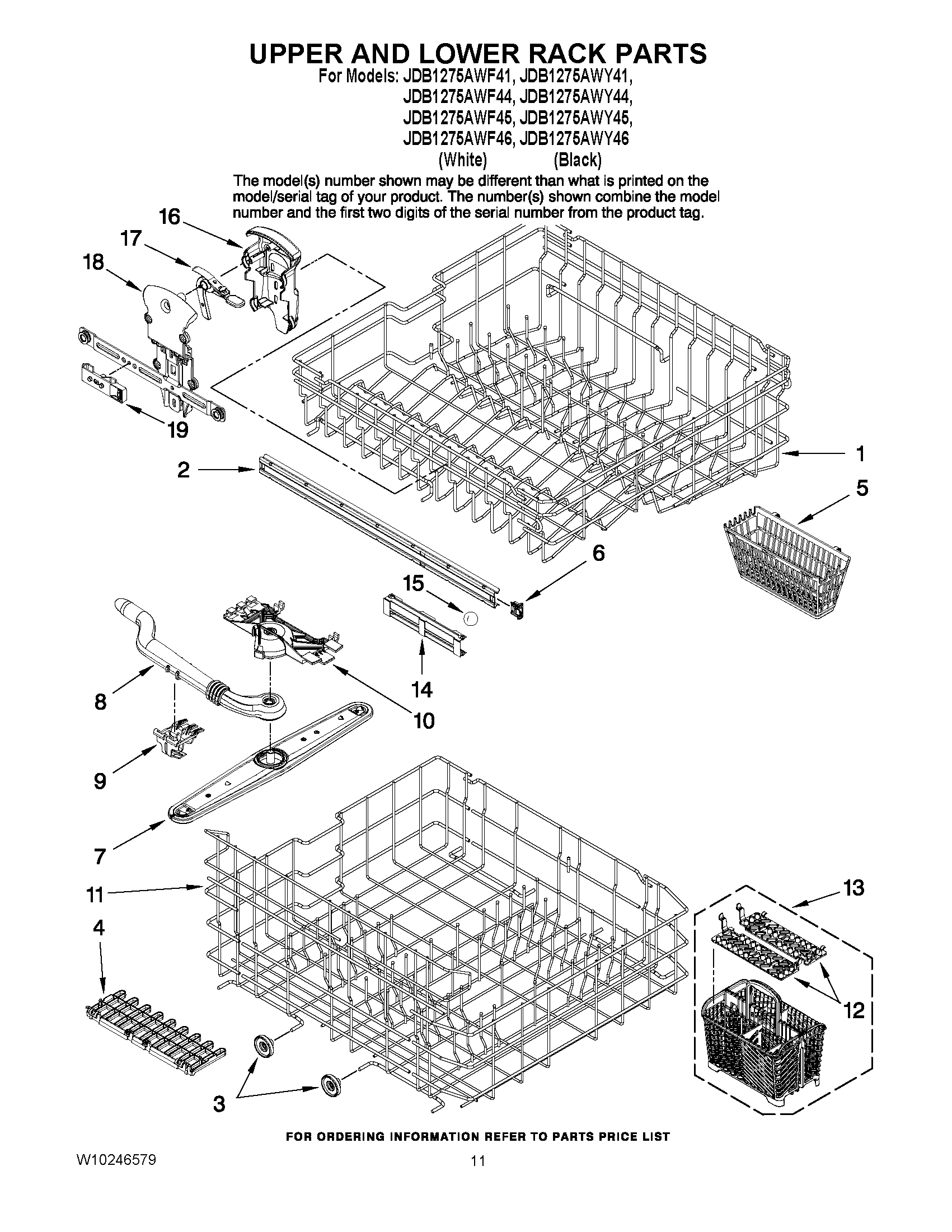

JDB1275AWF46 09 – UPPER AND LOWER RACK PARTS

JDB1275AWF46 09 – UPPER AND LOWER RACK PARTS

Written by

in

JDB1275AWF46 09 – UPPER AND LOWER RACK PARTS

Products

PositionProduct
1MAY W10137106
2MAY W10144736
3WHEEL ASSEMBLY (LWR)
4SHELF, CUP (UPR)
5MAY 99003270
5MAY 99003248
6MAY W10169391
7Wash Arm, Top (with Retainer)
8MAY 99003142
999003071 Whirlpool Dishwasher Upper Wash Manifold Clip
10MAY 99003072
11MAY W10137099
12MAY 6-918869
13BASKET, SILVERWARE (SPLIT/FIT)
14MAY 99003069
15WP99003068 Whirlpool Dishwasher Bearing
16MAY 99003277
17MAY 99003276
18MAY W10153535
18MAY W10153536
19MAY 99003278
