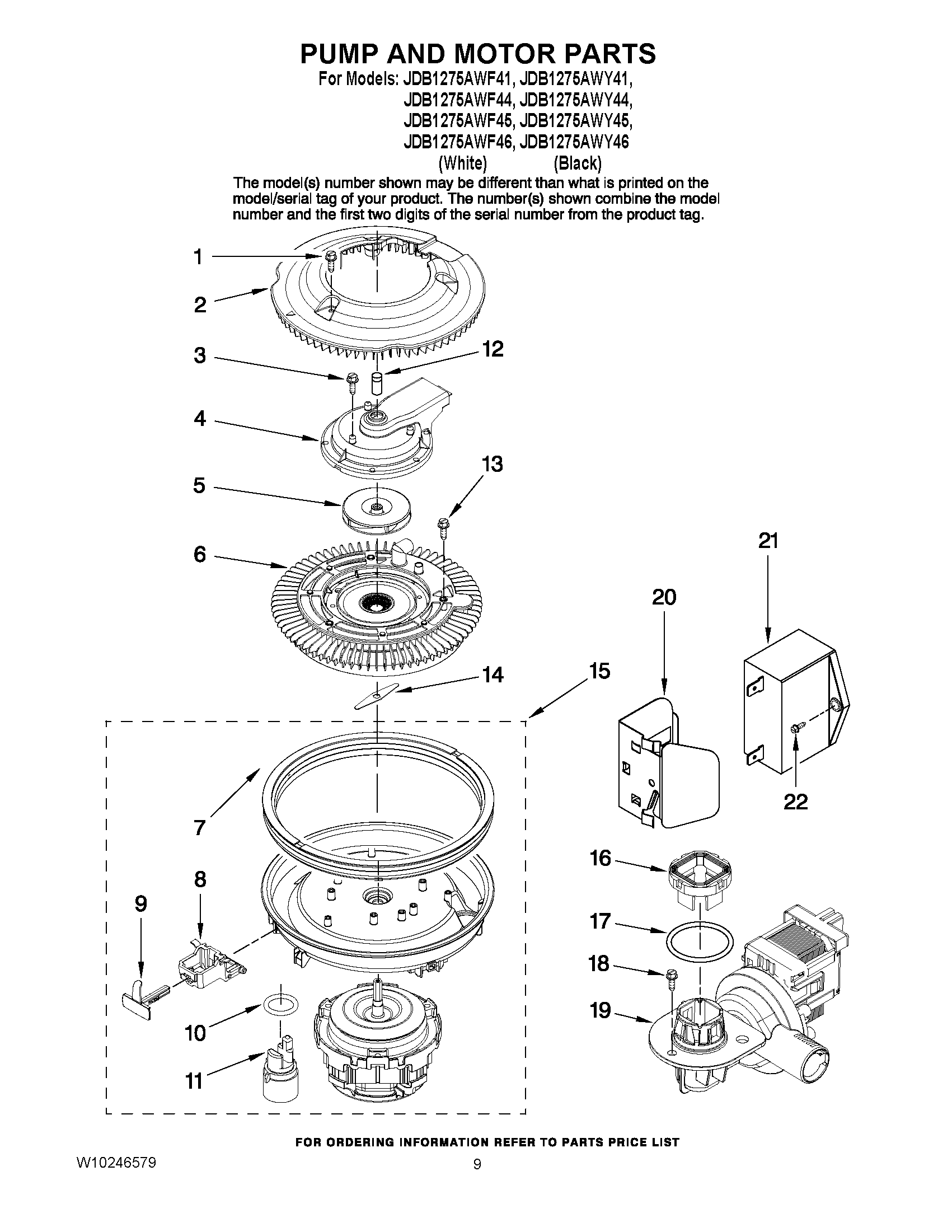

JDB1275AWY45 08 – PUMP AND MOTOR PARTS

Products

PositionProduct
1MAY 99002666
2GUARD, FILTER (DARK GREY)
3SCREW, STAINLESS PAN HEAD
4MAY 99003145
5WP99002659 Whirlpool Impeller
6MAY W10142623
712002361 Whirlpool Dishwasher Gasket, Pump (W/SILICONE)
8MAY 99003056
9MAY 99003057
1099002651 Whirlpool Dishwasher O-RING, TURBIDITY Sensor
11MAY W10120019
12MAY 99003697
13SCREW, DISCHARGE HOUSING
14MAY 99003427
15WASH MOTOR ASSY SEAL NOT INCL
16MAY 99003309
17MAY 99002857
18SCREW, TRUSS HEAD (10-18X.75)
19MAY W10200518
20MAY W10167912
21CAPACITOR, MOTOR
22SCREW 10-32X.400 (T-20 HEAD)
