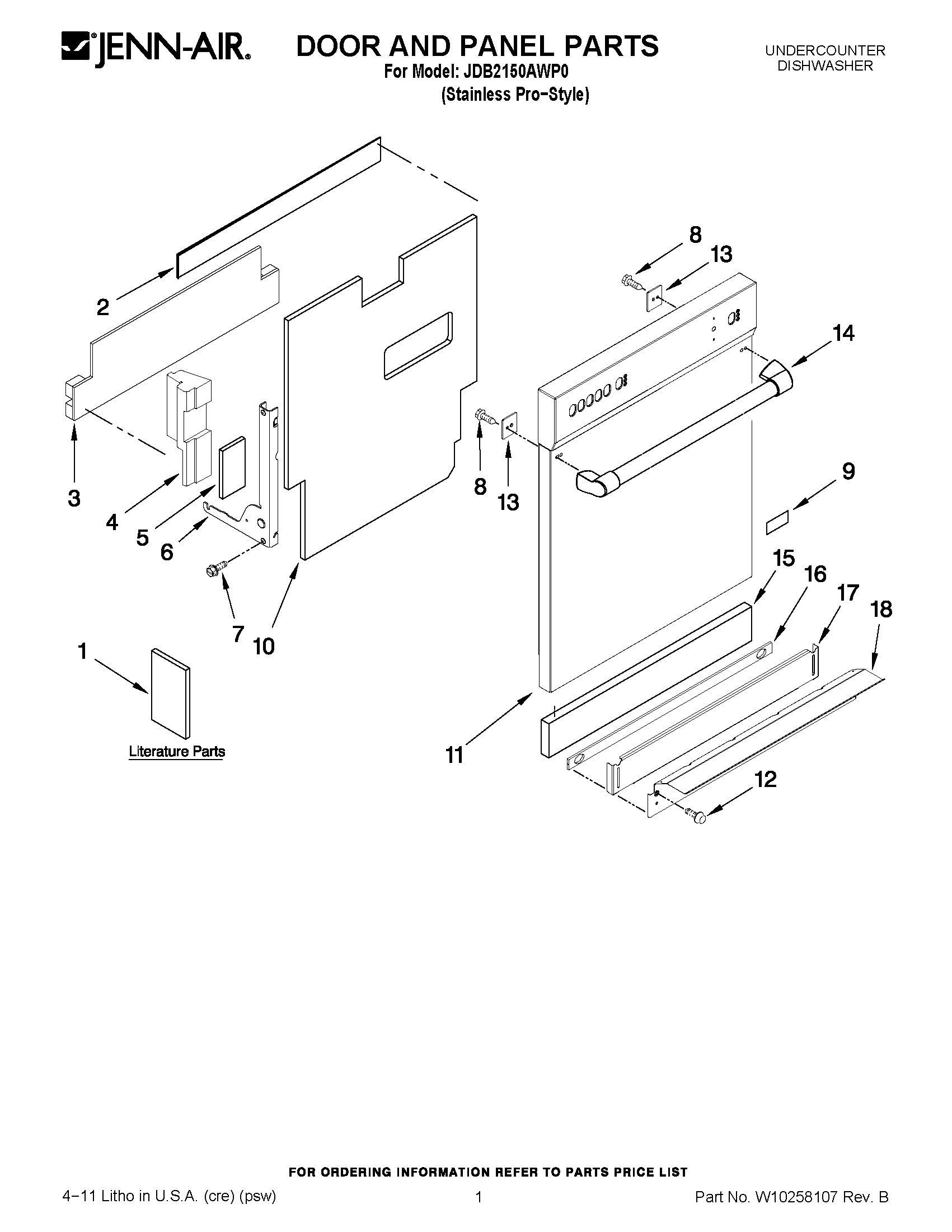

JDB2150AWP0 01 – DOOR AND PANEL PARTS

JDB2150AWP0 01 – DOOR AND PANEL PARTS

Written by

in

JDB2150AWP0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10158012
1MAY W10208021
1MAY W10157785
2DAMPER (2“ X 20“)
3MAY 99003048
4MAY 99003047
4MAY 99003046
5MAY 99003049
6MAY W10118637
6MAY W10118638
7MAY 99001075
8SCREW-TRUSS HEAD 1/4-20 T20
9NAMEPLATE (STAINLESS)
10MAY 99003044
11Panel, Front
12SCREW, ACCESS PANEL
12WP6-912366 Whirlpool Dishwasher Screw
13MAY W10167659
14Handle, Door (S.Steel (Pro- Style Assy))
15WP6-920587 Whirlpool Dishwasher Shield
16Damper, Toe Panel (Black)
16MAY 99002698
17MAY 99002766
17PANEL, TOE (W/DAMPER-BLK)
18SUPPORT, FRONT (W/SEALS)(BLK)
