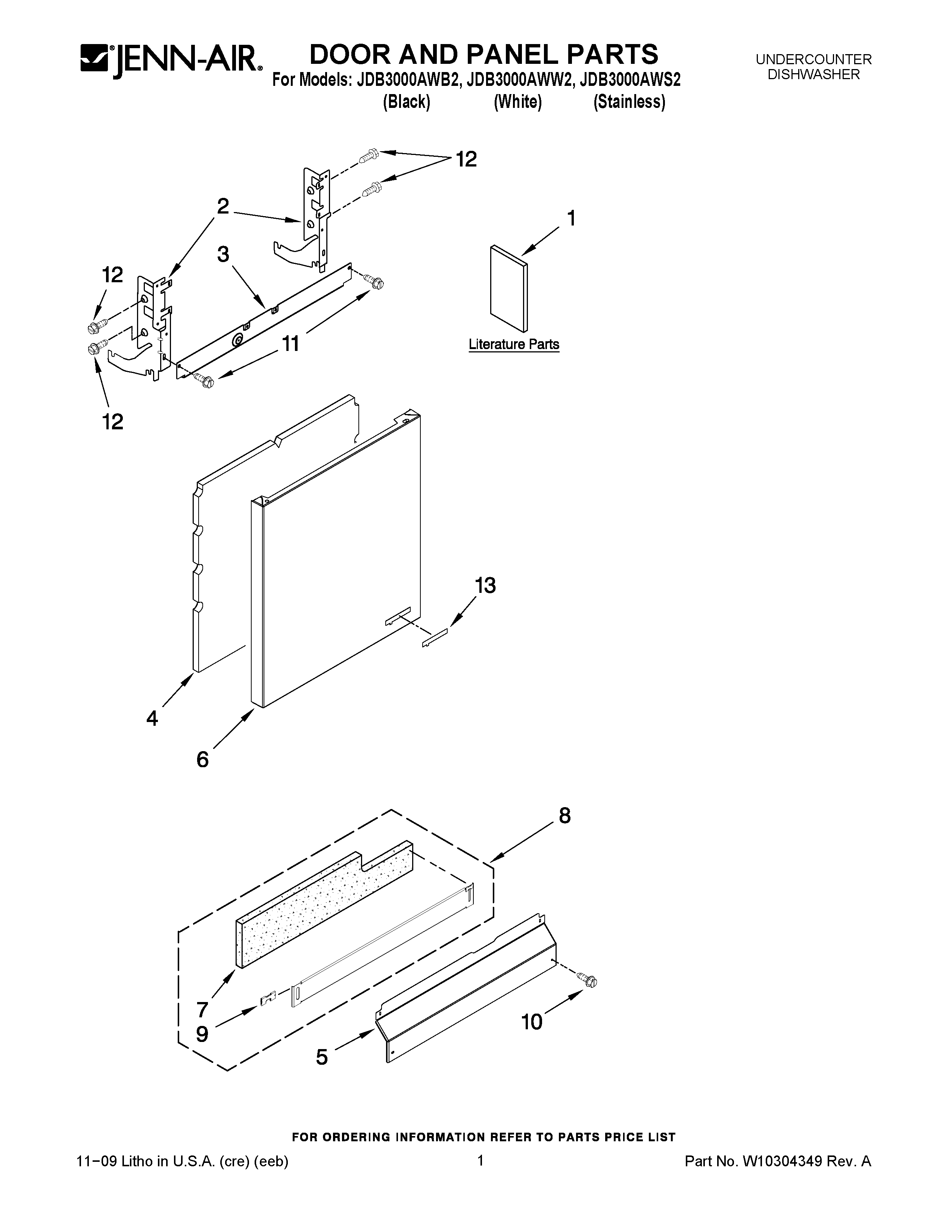

JDB3000AWB2 01 – DOOR AND PANEL PARTS

JDB3000AWB2 01 – DOOR AND PANEL PARTS

Written by

in

JDB3000AWB2 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10208698
1MAY W10208699
1MAY W10208727
1TECH SHEET
1MAY W10208728
2MAY 8534853
2MAY 8534854
3MAY 8268983
4MAY W10073520
5ACCESS PANEL (BLACK)
5MAY 8573256
6MAY W10234555
6MAY W10234553
6MAY W10234554
7INSULATION, ACCESS PANEL
8TOE PANEL (INCLUDES ITEM 9) (BLACK)
8TOE PANEL (INCLUDES ITEM 9) (WHITE)
9CLIP, GROUNDING
10SCREW (BLACK)
10WP3400836 Whirlpool Dishwasher Screw
10MAY 3400865
11Screw
12SCREW
13ASSEMBLY, BADGE (STAINLESS)
13ASSEMBLY, BADGE (BLACK)
13ASSEMBLY, BADGE (WHITE)
