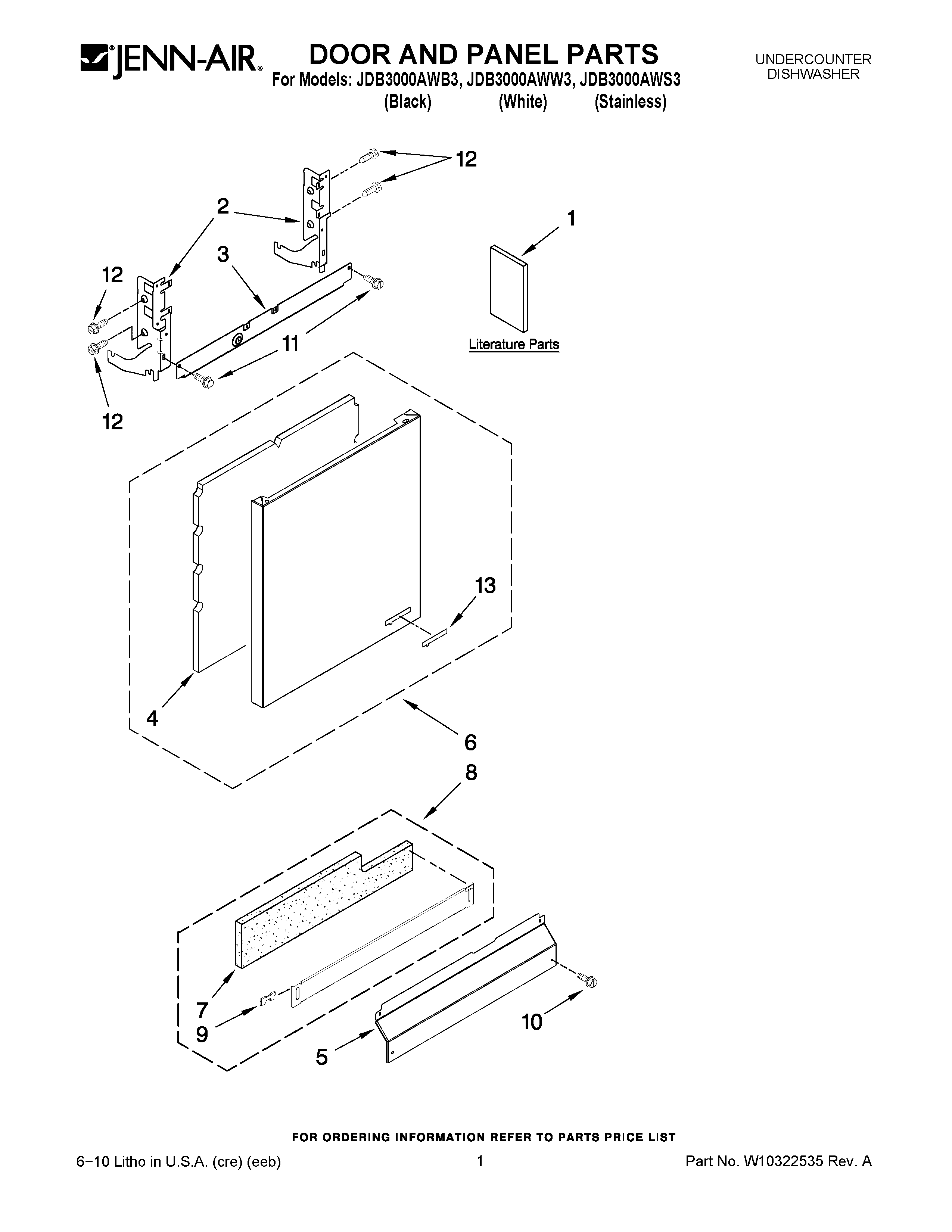

JDB3000AWB3 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10300215
1MAY W10300214
1MAY W10208728
1MAY W10208727
1TECH SHEET
2MAY 8534853
2MAY 8534854
3MAY 8268983
4MAY W10073520
5ACCESS PANEL (BLACK)
5MAY 8573256
6MAY W10234553
6MAY W10234554
6MAY W10234555
7INSULATION, ACCESS PANEL
8TOE PANEL (INCLUDES ITEM 9) (WHITE)
8TOE PANEL (INCLUDES ITEM 9) (BLACK)
9CLIP, GROUNDING
10WP3400836 Whirlpool Dishwasher Screw
10MAY 3400865
10SCREW (BLACK)
11Screw
12SCREW
13ASSEMBLY, BADGE (WHITE)
13ASSEMBLY, BADGE (BLACK)
13ASSEMBLY, BADGE (STAINLESS)
