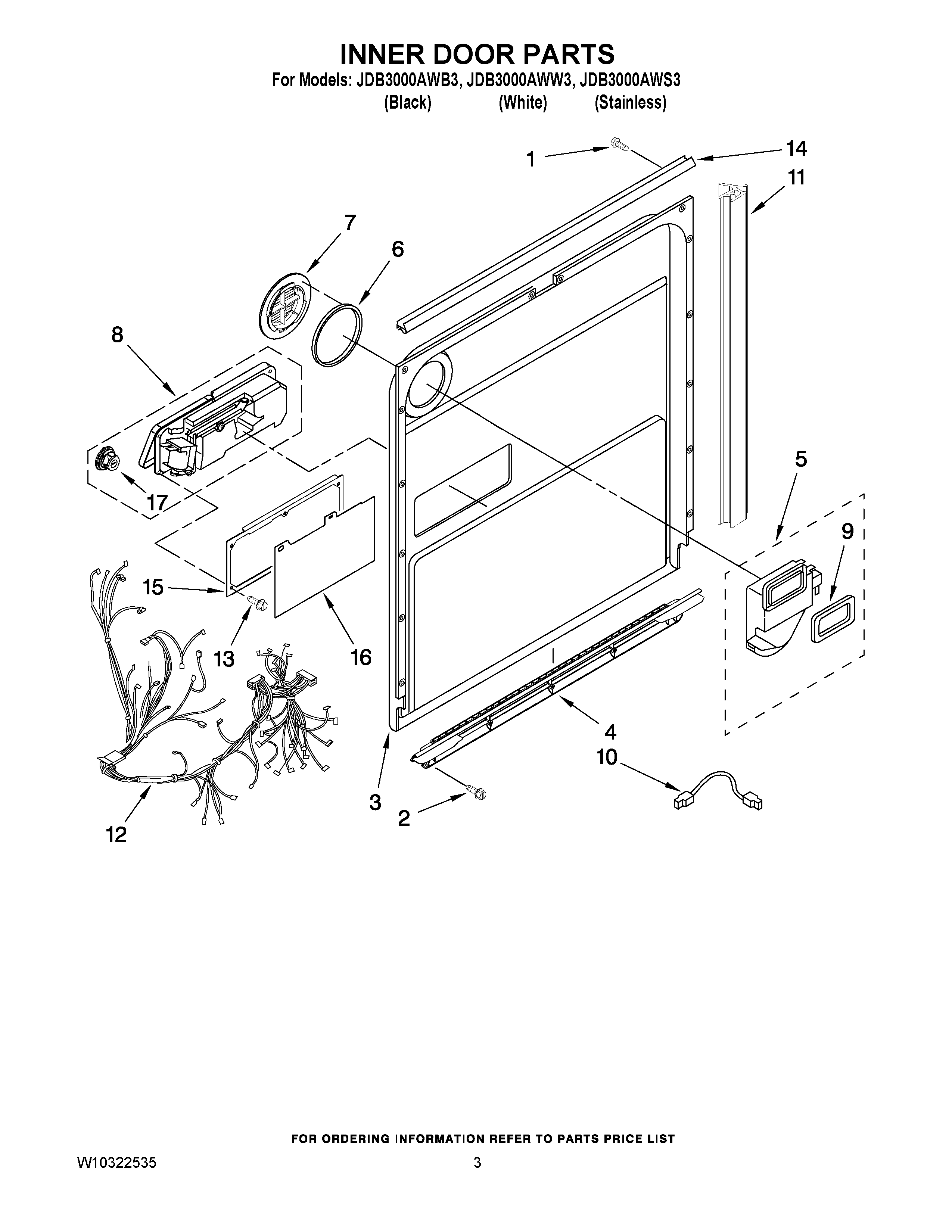

JDB3000AWB3 03 – INNER DOOR PARTS
Written by
in
JDB3000AWB3 03 – INNER DOOR PARTS
Products
Position
Product
1
SCREW
2
MAY 8281217
3
INNER DOOR MASTIC ASSEMBLY
4
MAY W10077883
5
VENT ASSEMBLY
6
MAY 8269259
7
MAY W10077877
8
MAY W10238413
9
SEAL, FRONT
10
MAY 8545608
11
SEAL, SIDE
12
WIRING HARNESS
13
MAY W10177098
14
MAY 8535660
15
BRACKET, DISPENSER
16
SHIELD, DISPENSER
17
MAY 8564929
←
