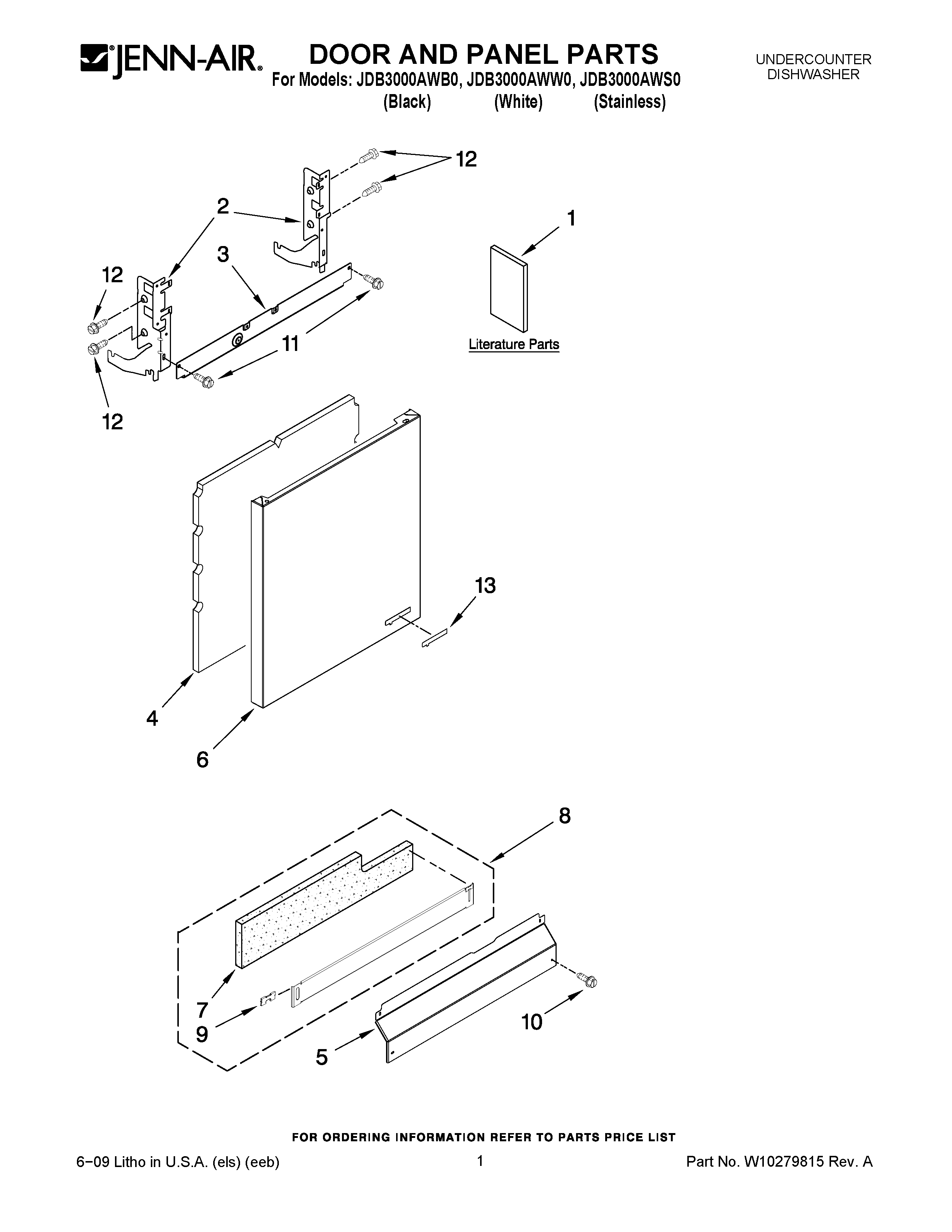

JDB3000AWS0 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	MAY W10208698
1	MAY W10208699
1	MAY W10208727
1	TECH SHEET
1	MAY W10208728
2	MAY 8534853
2	MAY 8534854
3	MAY 8268983
4	MAY W10073520
5	ACCESS PANEL (BLACK)
5	MAY 8573256
6	MAY W10234555
6	MAY W10234553
6	MAY W10234554
7	INSULATION, ACCESS PANEL
8	TOE PANEL (INCLUDES ITEM 9) (BLACK)
8	TOE PANEL (INCLUDES ITEM 9) (WHITE)
9	CLIP, GROUNDING
10	SCREW (BLACK)
10	WP3400836 Whirlpool Dishwasher Screw
10	MAY 3400865
11	Screw
12	SCREW
13	ASSEMBLY, BADGE (STAINLESS)
13	ASSEMBLY, BADGE (BLACK)
13	ASSEMBLY, BADGE (WHITE)
