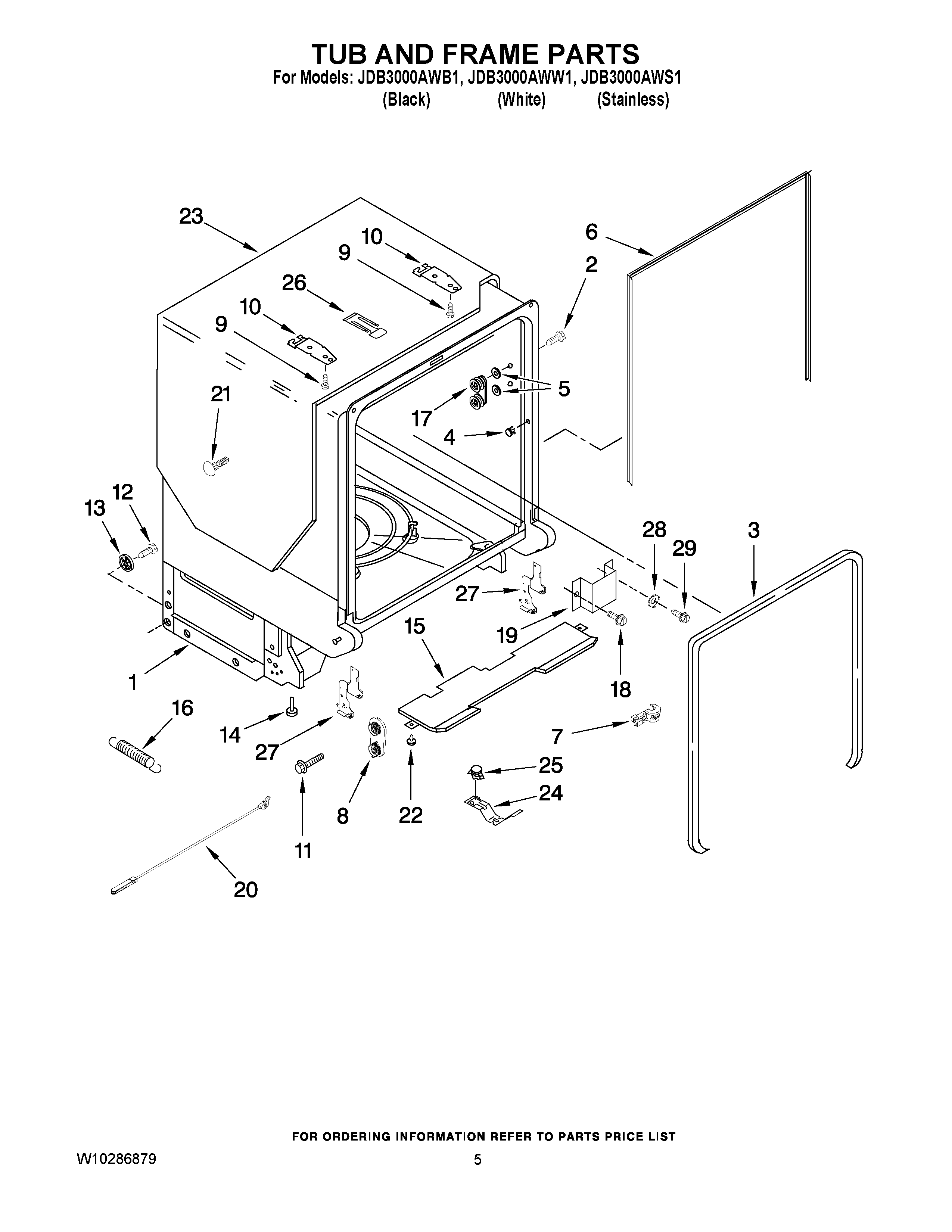

JDB3000AWS1 05 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10213830
2	SCREW
3	MAY W10112096
4	MAY W10082838
5	MAY 9743002
6	MAY 8269110
7	MAY 8573061
8	DOOR BALANCE ASSEMBLY
9	MAY 3367670
10	MAY 8269145
11	SCREW
12	SCREW
13	WHEEL, LEG
14	MAY 8524584
15	INSULATION, BOTTOM
16	MAY 8270020
17	WHEEL & MOUNT ASSEMBLY (ALSO ORDER No.5)
18	MAY 3400892
19	MAY 8268991
20	MAY 8535568
21	RETAINER, PUSH
22	MAY 3400924
23	MAY 8573239
24	MAY 9742648
25	MAY 661566
25	MAY W10185369
26	STRIKE, LATCH
27	MAY W10185368
28	WASHER, PRONGED CUP
29	MAY 3400014
