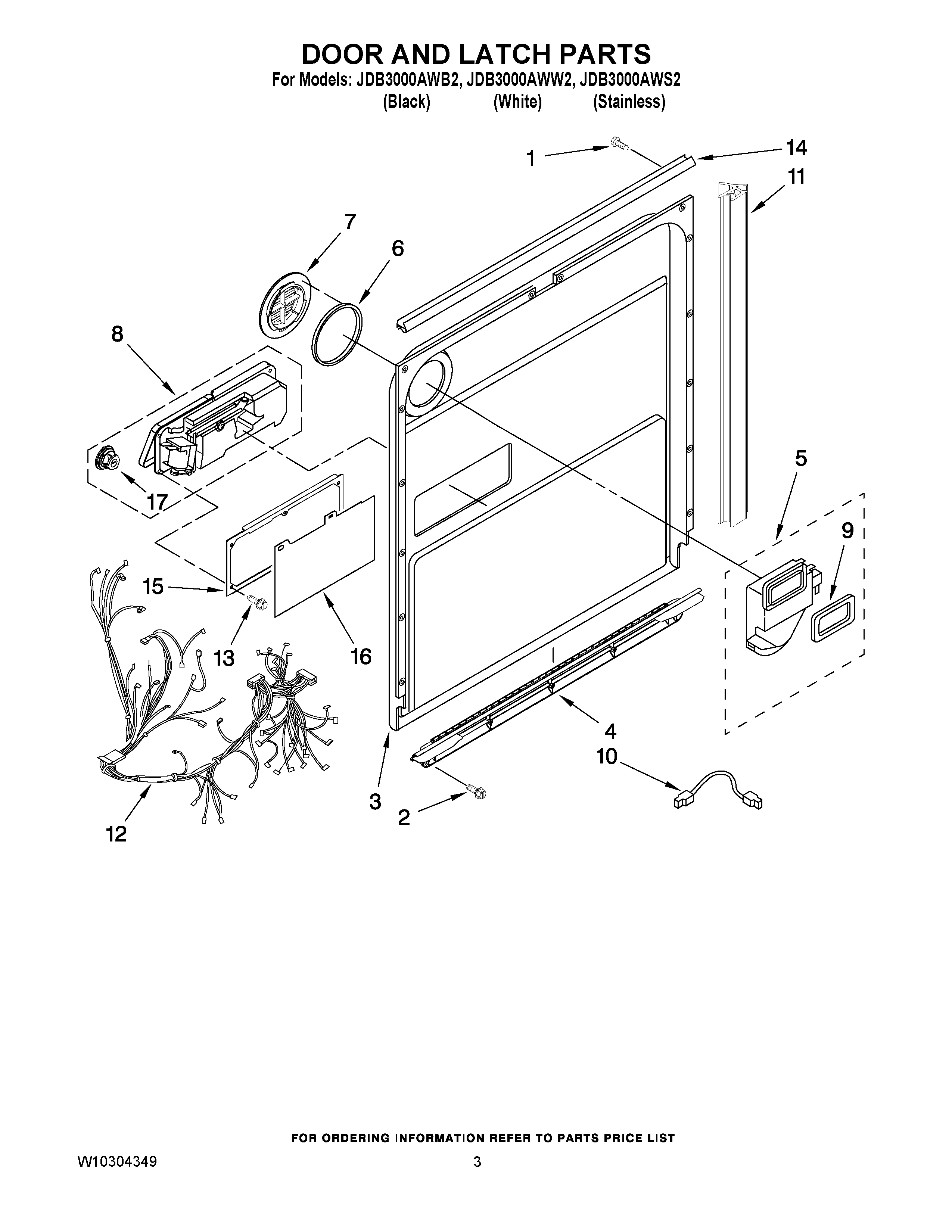

JDB3000AWS2 03 – DOOR AND LATCH PARTS

JDB3000AWS2 03 – DOOR AND LATCH PARTS

Written by

in

JDB3000AWS2 03 – DOOR AND LATCH PARTS

Products

Position	Product
1	SCREW
2	MAY 8281217
3	INNER DOOR MASTIC ASSEMBLY
4	MAY W10077883
5	VENT ASSEMBLY
6	MAY 8269259
7	MAY W10077877
8	MAY W10238413
9	SEAL, FRONT
10	MAY 8545608
11	SEAL, SIDE
12	WIRING HARNESS
13	MAY W10177098
14	MAY 8535660
15	BRACKET, DISPENSER
16	SHIELD, DISPENSER
17	MAY 8564929
