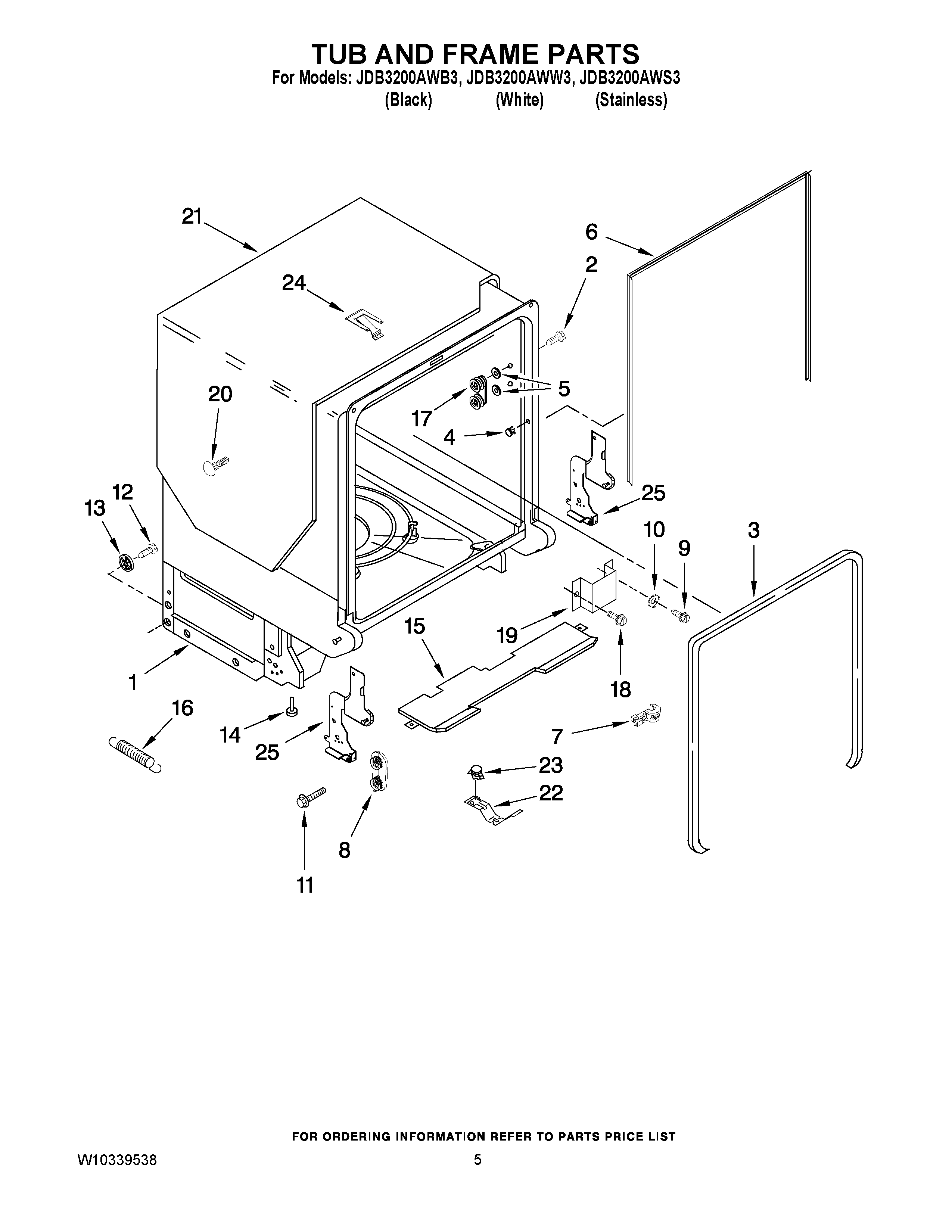

JDB3200AWB3 05 – TUB AND FRAME PARTS

Products

Position	Product
1	TUB ASSEMBLY
2	SCREW
3	MAY W10112096
4	MAY W10082838
5	MAY 9743002
6	MAY 8269110
7	MAY 8573061
8	DOOR BALANCE ASSEMBLY
9	MAY 3400014
10	WASHER, PRONGED CUP
11	SCREW
12	SCREW
13	WHEEL, LEG
14	MAY 8524584
15	INSULATION, BOTTOM
16	SPRING, DOOR BALANCE
17	WHEEL & MOUNT ASSEMBLY (ALSO ORDER No.5)
18	MAY 3400892
19	MAY 8268991
20	RETAINER, PUSH
21	MAY 8573240
22	MAY 9742648
23	MAY 661566
24	MAY W10317686
25	MAY W10185368
25	MAY W10185369
