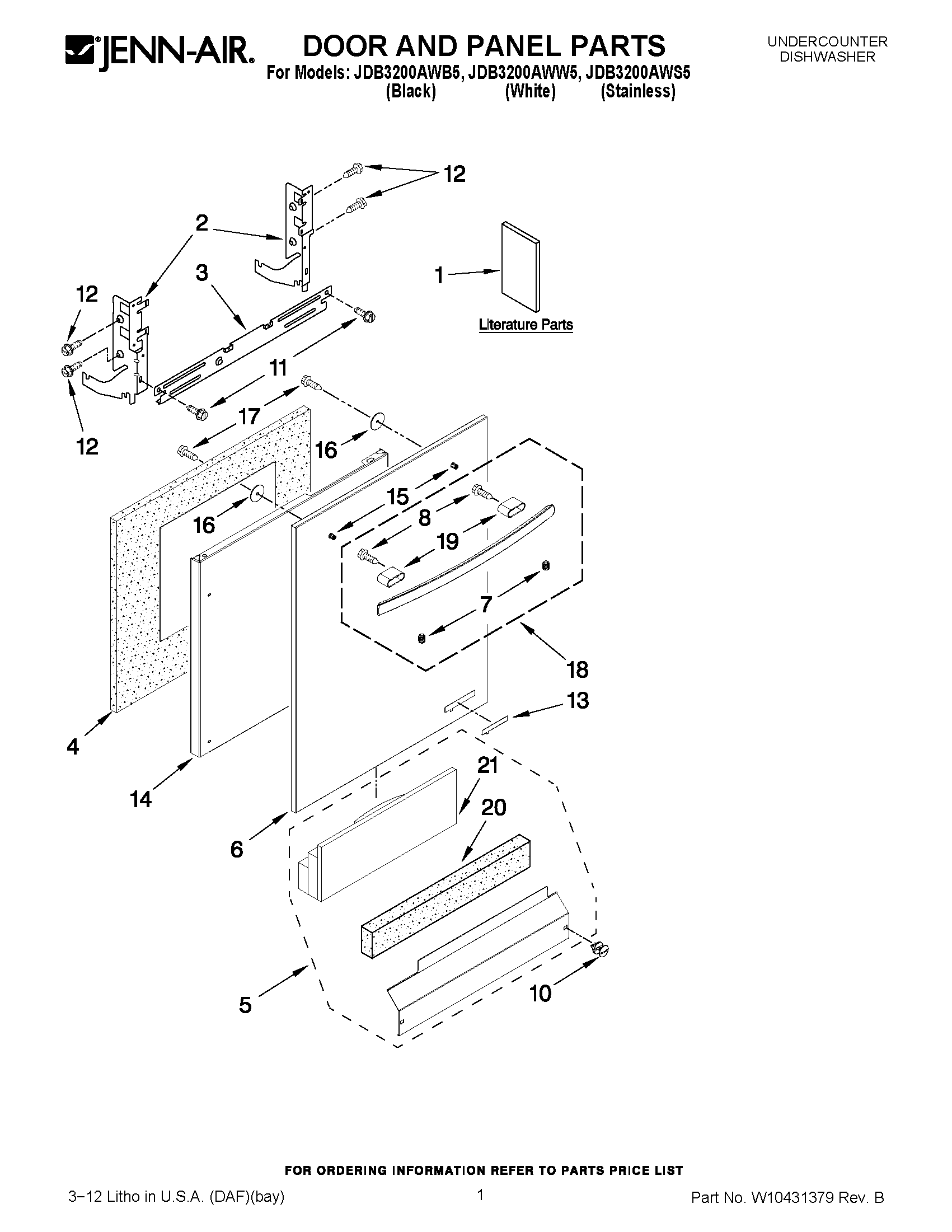

JDB3200AWB5 01 – DOOR AND PANEL PARTS

JDB3200AWB5 01 – DOOR AND PANEL PARTS

Written by

in

JDB3200AWB5 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10395346
1TECH SHEET
1MAY W10300217
1MAY W10300216
1MAY W10321619
2MAY 8534853
2MAY 8534854
3MAY 8268983
4INSULATION, FRONT PANEL
5MAY W10368715
5MAY W10368716
6MAY W10234556
6MAY W10234557
6MAY W10234558
7MAY W10276608
8MAY W10201588
10SCREW (WHITE)
10SCREW (BLACK)
11Screw
12SCREW
13ASSEMBLY, BADGE (STAINLESS)
13ASSEMBLY, BADGE (WHITE)
13ASSEMBLY, BADGE (BLACK)
14MAY W10380059
14PANEL, CUSTOM 6“ (BLACK)
15STUD, MOUNTING
16PLATE, BACKING
17MAY W10123421
18MAY W10208769
18MAY W10208767
18MAY W10208768
19MAY W10056277
19MAY W10056278
19MAY W10056279
19MAY W10056281
19MAY W10056280
19MAY W10056282
20INSULATION, TOE PANEL
21MAY W10350437
