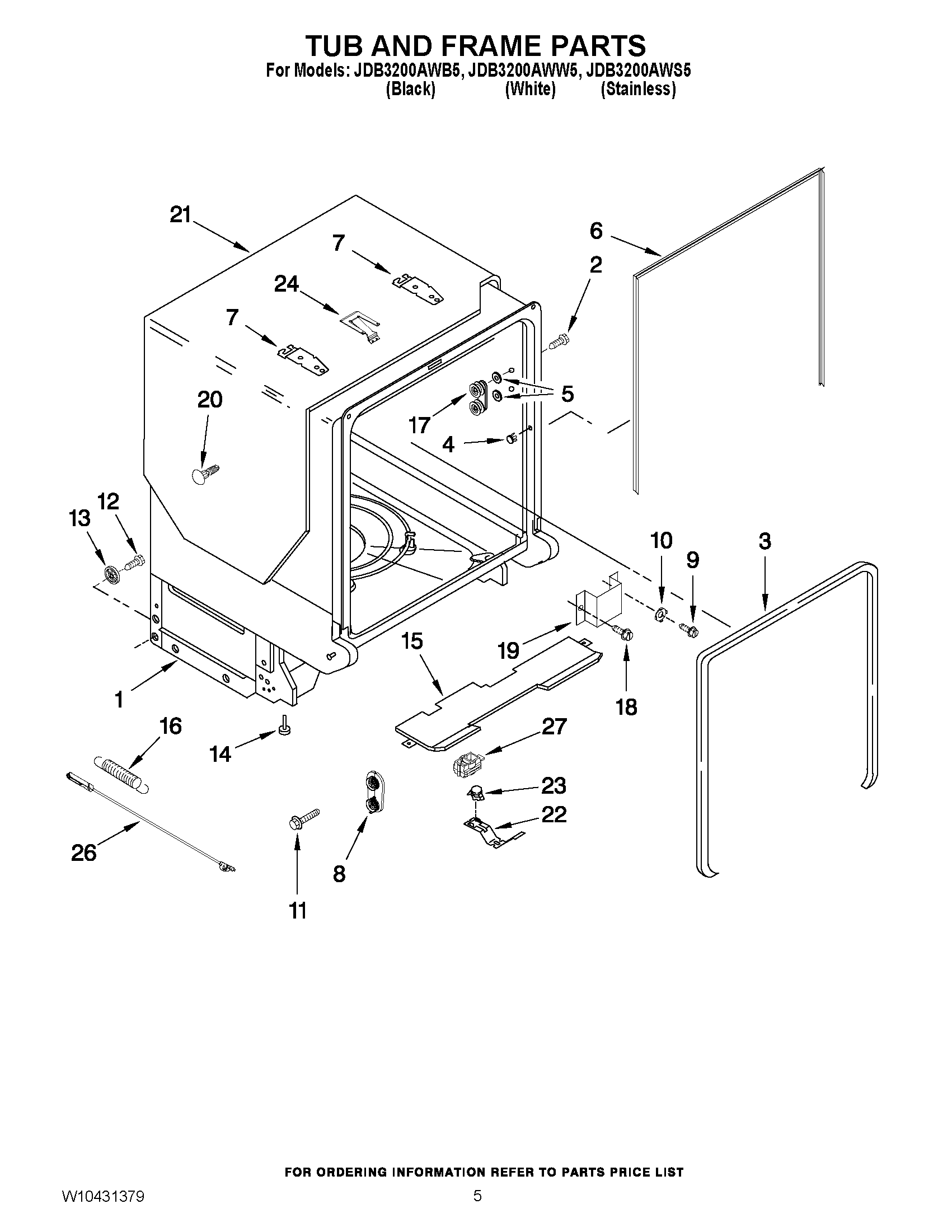

JDB3200AWB5 05 – TUB AND FRAME PARTS

Products

Position	Product
1	TUB ASSEMBLY
2	MAY W10348407
3	MAY W10112096
4	MAY W10082838
5	MAY 9743002
6	MAY 8269110
7	MAY 8269145
8	DOOR BALANCE ASSEMBLY
9	MAY 3400014
10	WASHER, PRONGED CUP
11	SCREW
12	MAY W10348411
13	WHEEL, LEG
14	MAY 8524584
15	INSULATION BOTTOM
16	SPRING, DOOR BALANCE
17	WHEEL & MOUNT ASSEMBLY (ALSO ORDER No.5)
18	MAY 3400892
19	MAY 8268991
20	RETAINER, PUSH
21	MAY 8573240
22	MAY W10450559
23	MAY W10339474
24	MAY W10317686
26	CABLE, DOOR ASSEMBLY
27	MAY W10292870
