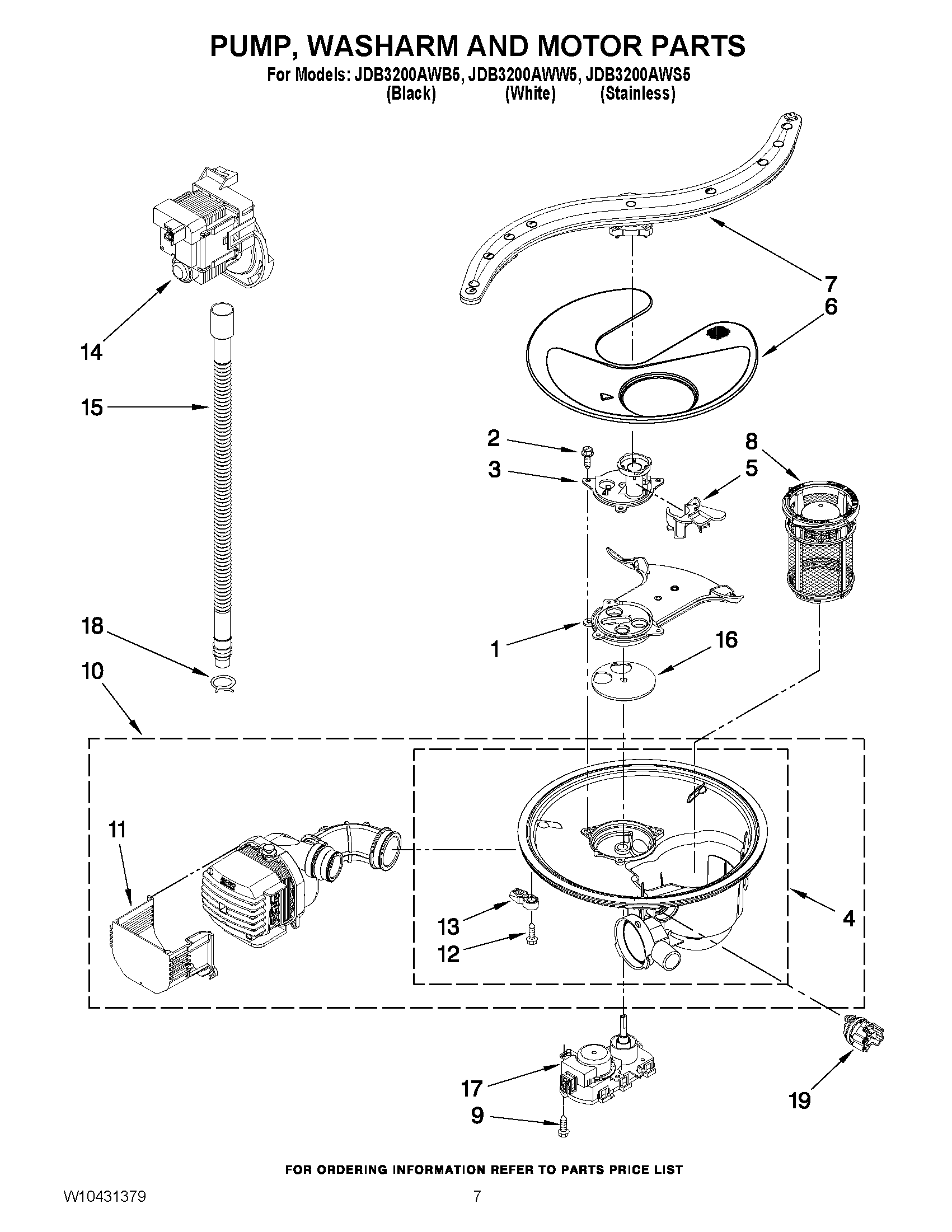

JDB3200AWB5 06 – PUMP, WASHARM AND MOTOR PARTS

Written by

Products

Position	Product
1	MAY 8579241
2	MAY W10348405
3	MAY W10324447
4	SUMP WITH SEAL (INCLUDES ITEMS 12, 13 AND 2 HOSE CLAMPS)
5	MAY 8579298
6	MAY 8579253
7	MAY W10195665
8	MAY W10393351
9	MAY 9741232
10	MAY W10234615
11	MAY 8579272
12	MAY W10348407
13	TAB, SUMP
14	MAY W10158351
15	MAY 8269144
16	MAY 8579251
17	MAY W10056349
18	MAY 370445
19	MAY W10134017
