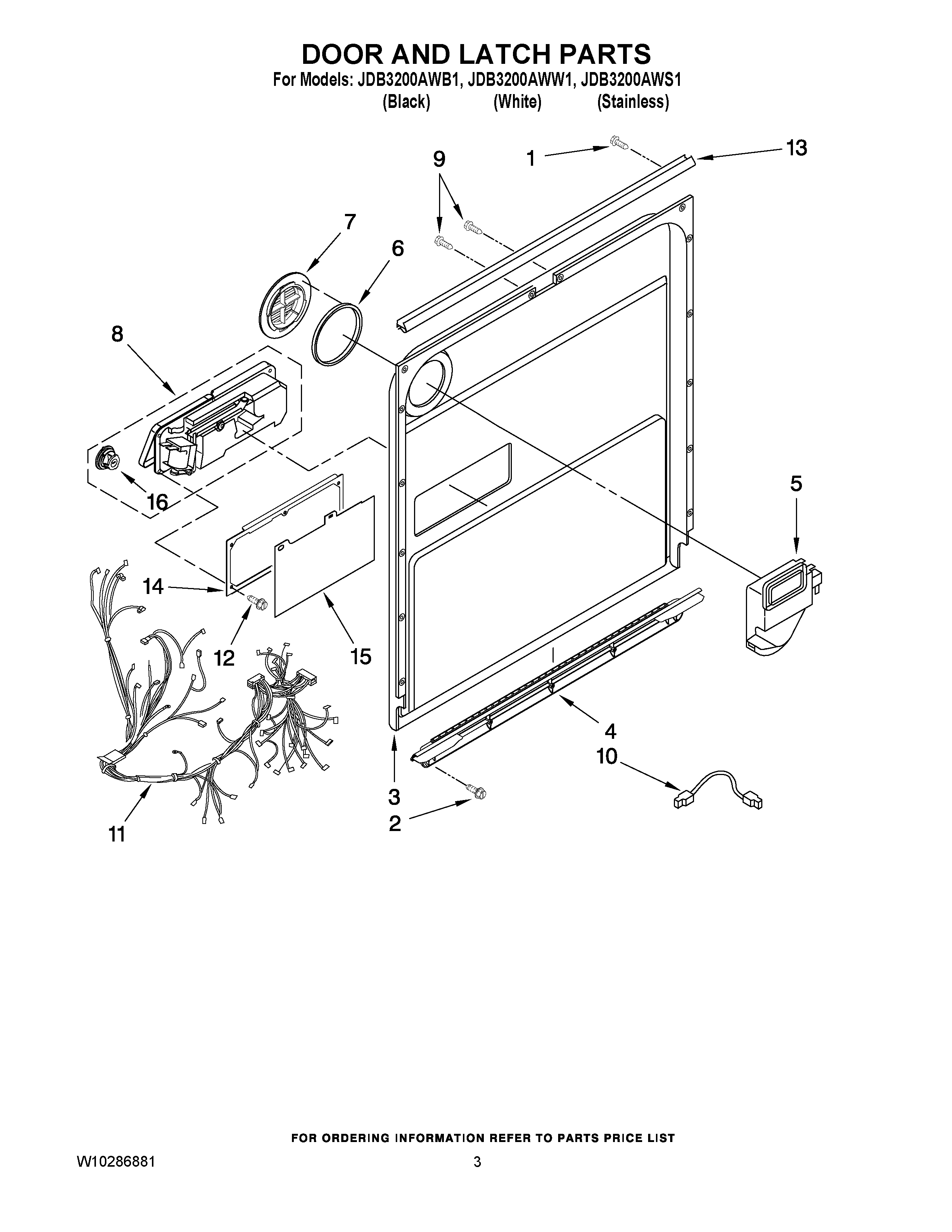

JDB3200AWS1 03 – DOOR AND LATCH PARTS

JDB3200AWS1 03 – DOOR AND LATCH PARTS

Written by

in

JDB3200AWS1 03 – DOOR AND LATCH PARTS

Products

Position	Product
1	SCREW
2	MAY 8281217
3	INNER DOOR MASTIC ASSEMBLY
4	MAY W10077883
5	MAY 8572611
6	MAY 8269259
7	MAY W10077877
8	MAY W10238413
9	MAY 8533965
10	MAY 8545608
11	MAY W10137633
12	MAY W10177098
13	MAY 8535660
14	BRACKET, DISPENSER
15	SHIELD, DISPENSER
16	MAY 8564929
