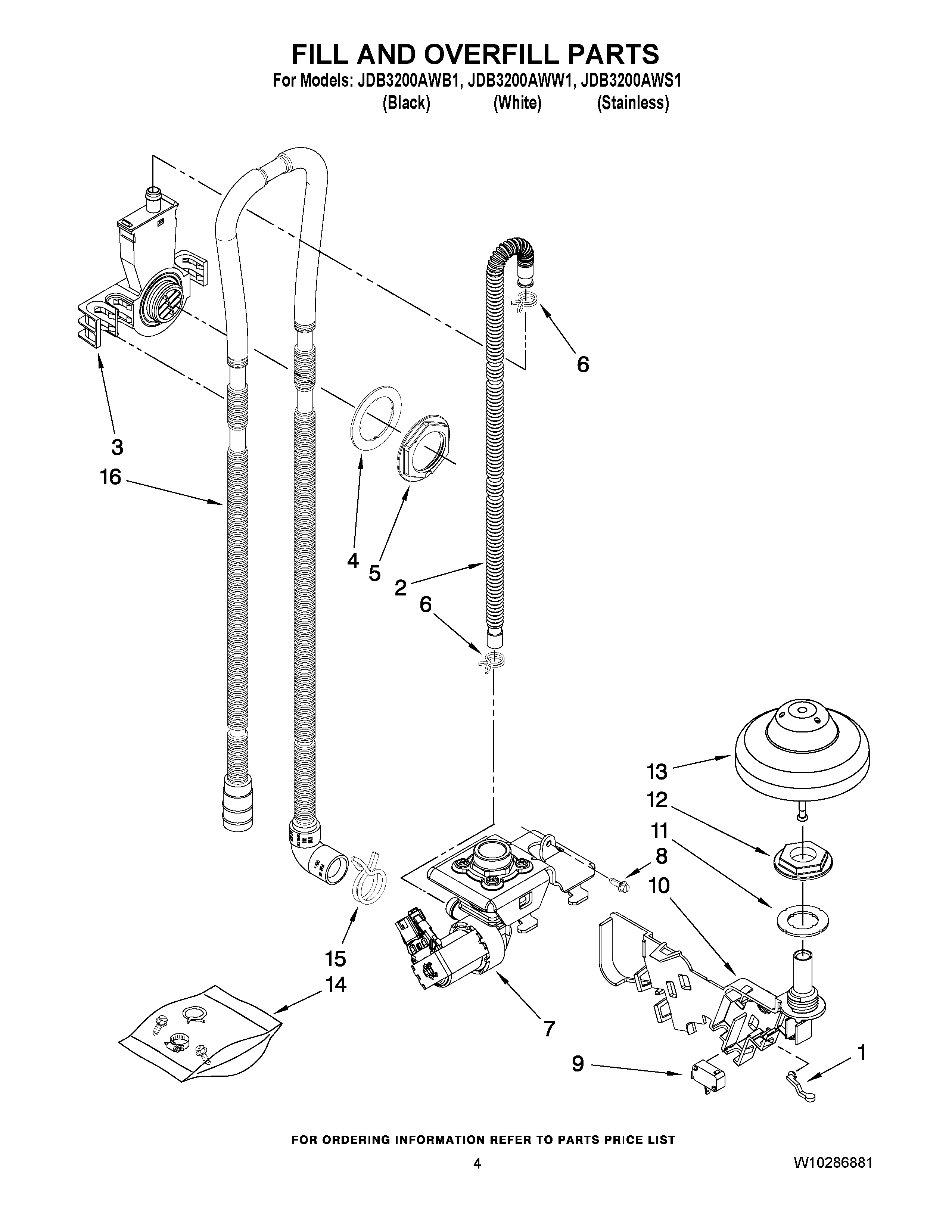

JDB3200AWS1 04 – FILL AND OVERFILL PARTS

Products

Position	Product
1	LEVER, OVERFLOW SWITCH
2	MAY 8531412
3	MAY 8531325
4	MAY 8531323
5	NUT, WATER INLET (ALSO ORDER ITEM 4)
6	MAY 371505
7	MAY W10219506
8	Screw
9	SWITCH, OVERFILL
10	STANDPIPE, OVERFILL (ALSO INCLUDES ITEM 13)
11	MAY 8531743
12	MAY 9741998
13	MAY W10077871
14	MISCELLANEOUS PARTS BAG (INCLUDES 2 SCREWS & 2 HOSE CLAMPS)
15	MAY 356138
16	MAY W10137608
