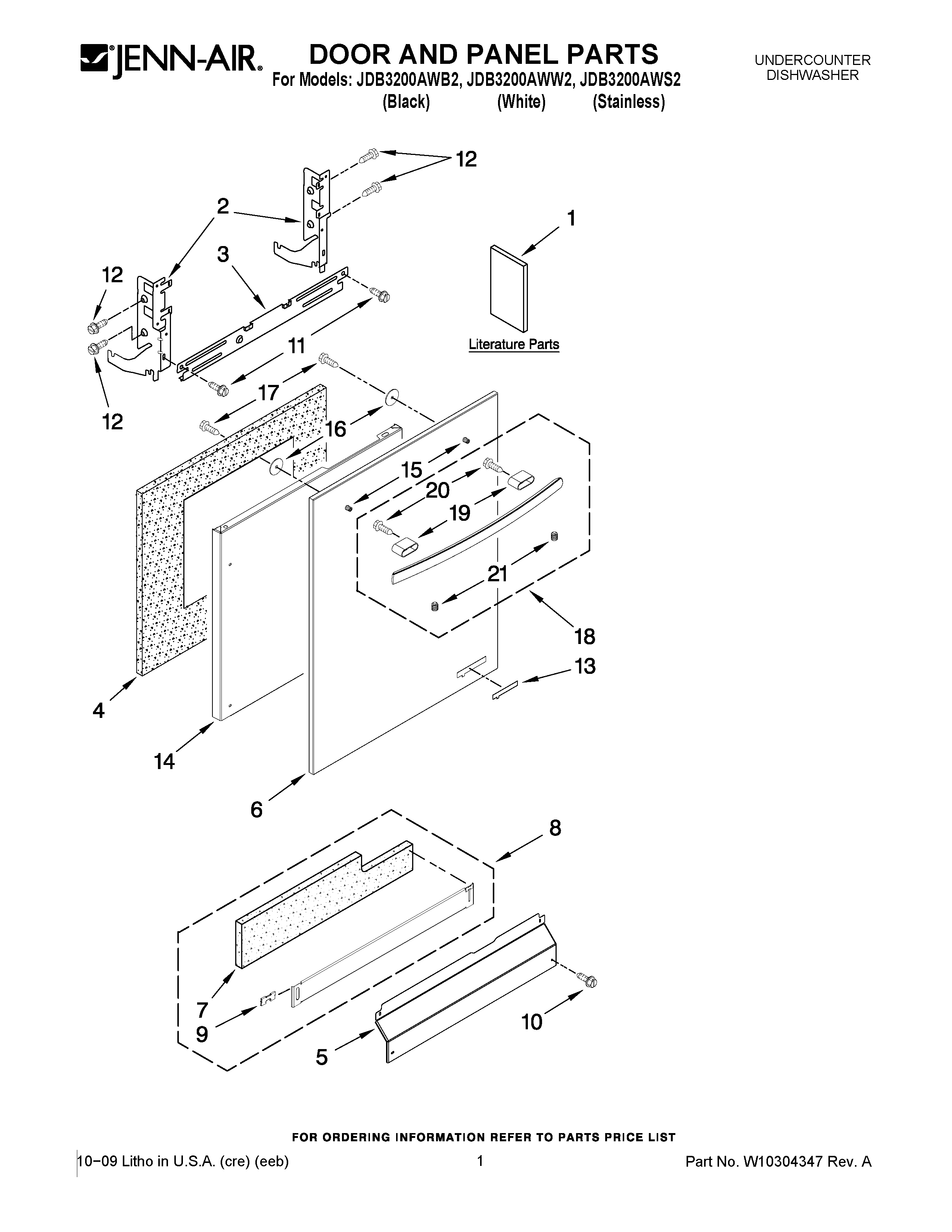

JDB3200AWS2 01 – DOOR AND PANEL PARTS

JDB3200AWS2 01 – DOOR AND PANEL PARTS

Written by

in

JDB3200AWS2 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10208700
1MAY W10208729
1MAY W10208727
1MAY W10208701
2MAY 8534854
2MAY 8534853
3MAY 8268983
4INSULATION, FRONT PANEL
5ACCESS PANEL (BLACK)
6MAY W10234558
6MAY W10234557
6MAY W10234556
7MAY 8268581
8TOE PANEL (INCLUDES ITEMS 7 & 9) (WHITE)
8TOE PANEL (INCLUDES ITEMS 7 & 9) (BLACK)
9CLIP, GROUNDING
10MAY 3400865
10WP3400836 Whirlpool Dishwasher Screw
10SCREW (BLACK)
11Screw
12SCREW
13ASSEMBLY, BADGE (STAINLESS)
13ASSEMBLY, BADGE (BLACK)
13ASSEMBLY, BADGE (WHITE)
14PANEL, CUSTOM 6“ (BLACK)
14MAY W10234564
15STUD, MOUNTING
16PLATE, BACKING
17MAY W10123421
18MAY W10208767
18MAY W10208768
18MAY W10208769
19MAY W10056277
19MAY W10056278
19MAY W10056279
20MAY W10201588
21MAY W10276608
