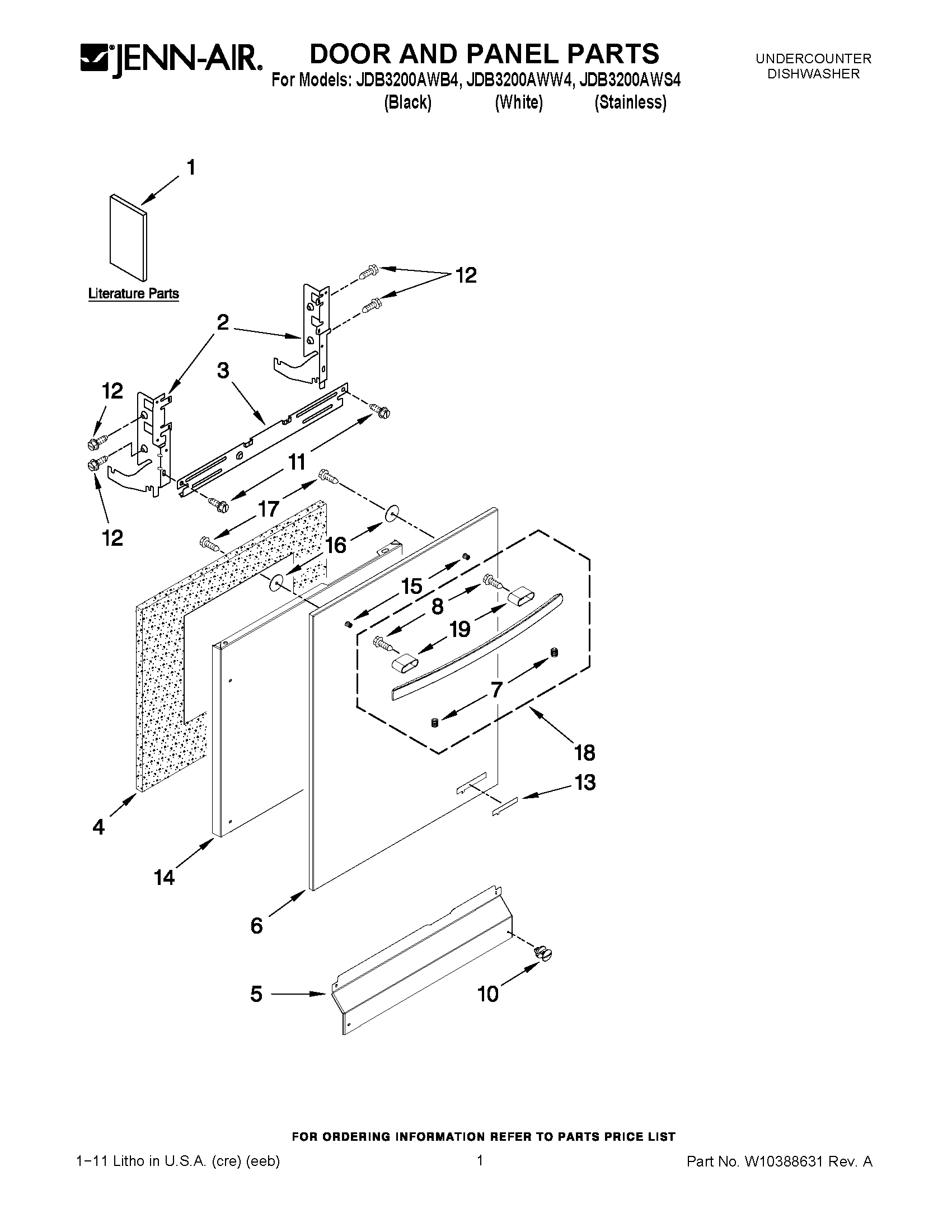

JDB3200AWS4 01 – DOOR AND PANEL PARTS

JDB3200AWS4 01 – DOOR AND PANEL PARTS

Written by

in

JDB3200AWS4 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10300217
1MAY W10300216
1TECH SHEET
1MAY W10158347
1MAY W10282554
1MAY W10311173
2MAY 8534854
2MAY 8534853
3MAY 8268983
4INSULATION, FRONT PANEL
5MAY W10369029
5MAY W10369030
6MAY W10234556
6MAY W10234558
6MAY W10234557
7MAY W10276608
8MAY W10201588
10SCREW (WHITE)
10SCREW (BLACK)
11Screw
12SCREW
13ASSEMBLY, BADGE (BLACK)
13ASSEMBLY, BADGE (STAINLESS)
13ASSEMBLY, BADGE (WHITE)
14PANEL, CUSTOM 6“ (BLACK)
14MAY W10234564
15STUD, MOUNTING
16PLATE, BACKING
17MAY W10123421
18MAY W10208768
18MAY W10208767
18MAY W10208769
19MAY W10056277
19MAY W10056278
19MAY W10056279
