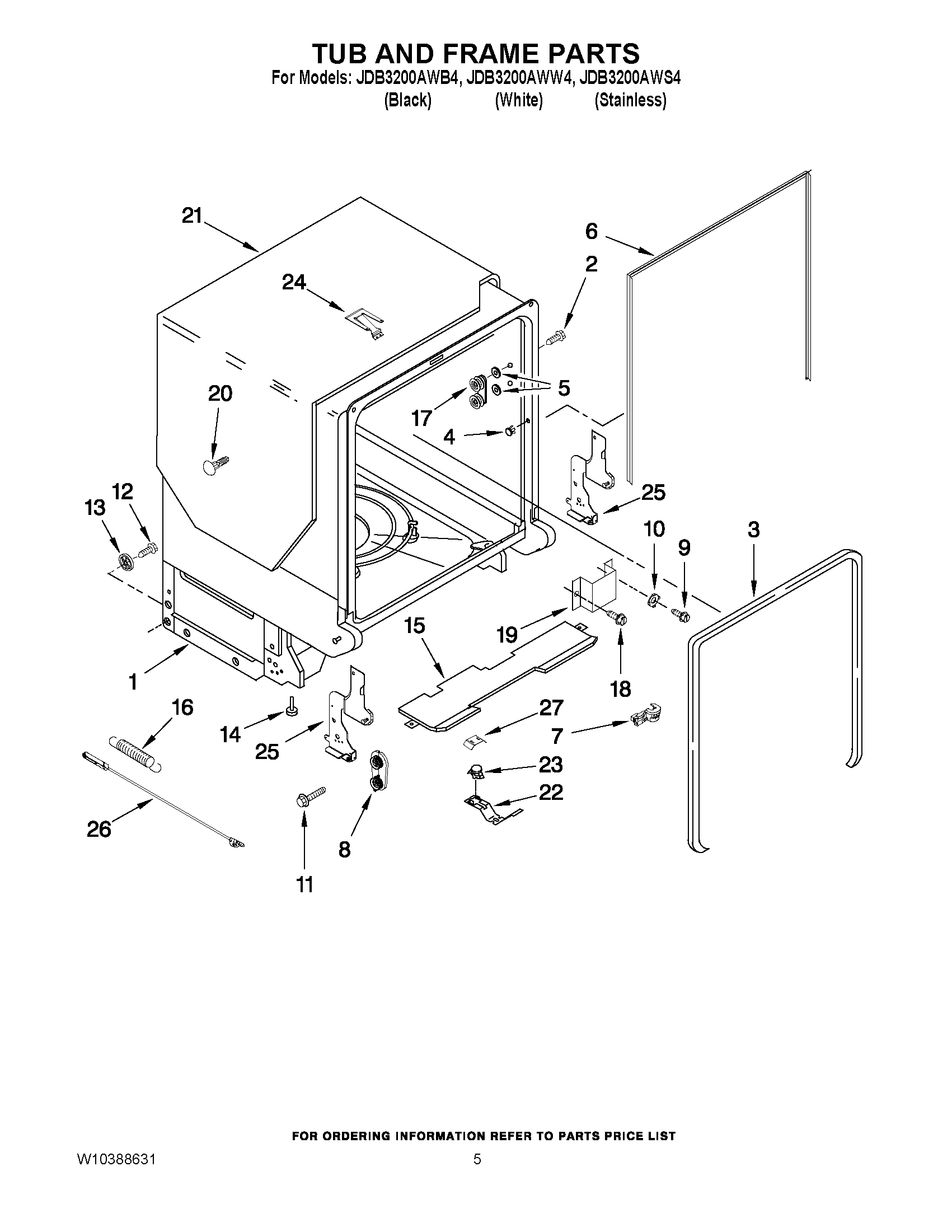

JDB3200AWW4 05 – TUB AND FRAME PARTS

Products

PositionProduct
1TUB ASSEMBLY
2SCREW
3MAY W10112096
4MAY W10082838
5MAY 9743002
6MAY 8269110
7MAY 8573061
8DOOR BALANCE ASSEMBLY
9MAY 3400014
10WASHER, PRONGED CUP
11SCREW
12SCREW
13WHEEL, LEG
14MAY 8524584
15INSULATION BOTTOM
16SPRING, DOOR BALANCE
17WHEEL & MOUNT ASSEMBLY (ALSO ORDER No.5)
18MAY 3400892
19MAY 8268991
20RETAINER, PUSH
21MAY 8573240
22MAY 9742648
23MAY 661566
24MAY W10317686
25MAY W10185369
25MAY W10185368
26CABLE, DOOR ASSEMBLY
27MAY W10321574
