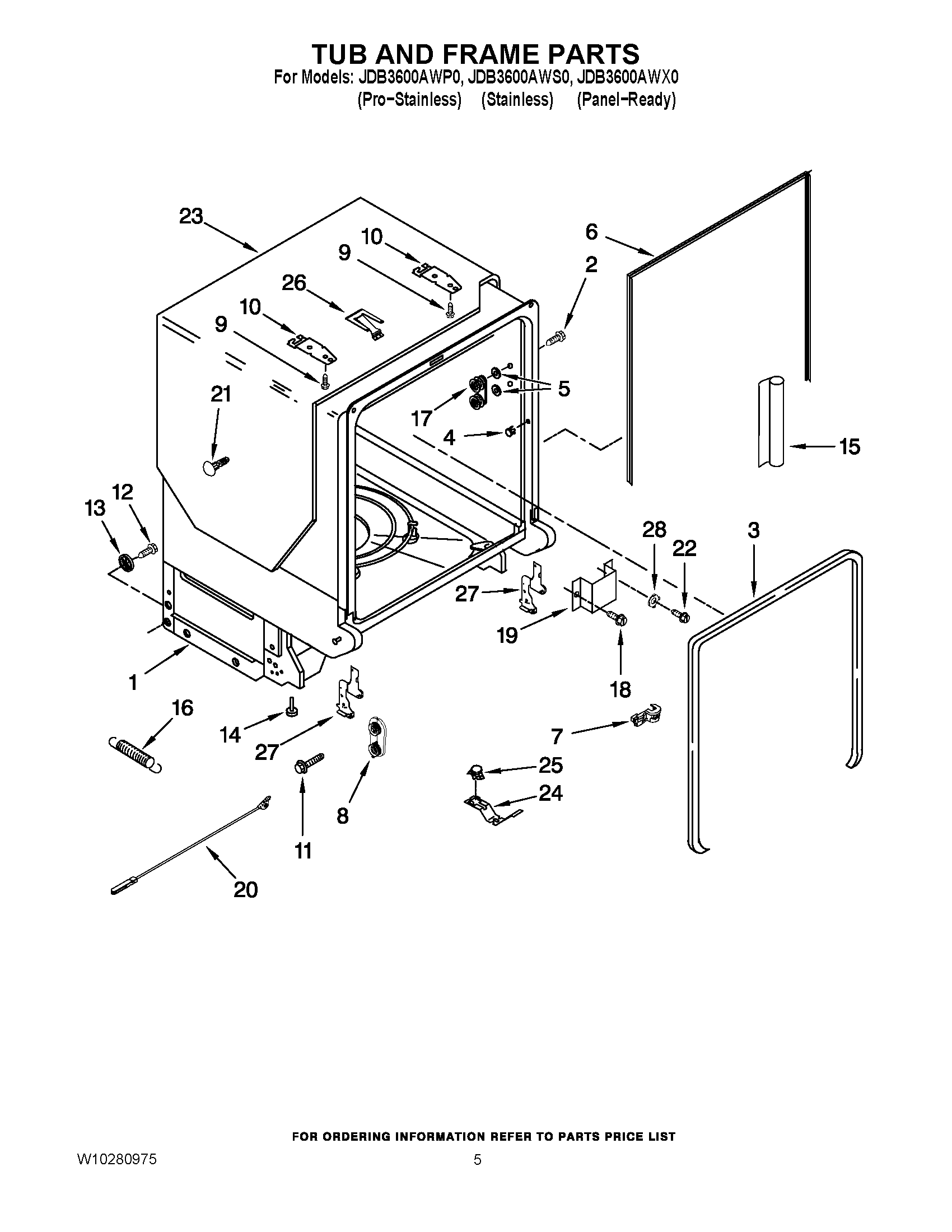

JDB3600AWP0 05 – TUB AND FRAME PARTS

Products

Position	Product
1	TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY)
2	SCREW
3	MAY W10112096
4	MAY W10082838
5	MAY 9743002
6	SEAL, CABINET
7	MAY 8573061
8	DOOR BALANCE ASSEMBLY
9	MAY 3367670
10	MAY 8269145
11	SCREW
12	SCREW
13	WHEEL, LEG
14	MAY 8524584
15	BARRIER,MOISTURE
16	SPRING, DOOR BALANCE
17	WHEEL & MOUNT ASSEMBLY (ALSO ORDER No.5)
18	MAY 3400892
19	MAY 8268991
20	MAY 8535568
21	RETAINER, PUSH
22	MAY 3400014
23	MAY 8573239
24	MAY 9742648
25	MAY W10185369
25	MAY 661566
26	MAY W10077370
27	MAY W10185368
28	WASHER, PRONGED CUP
