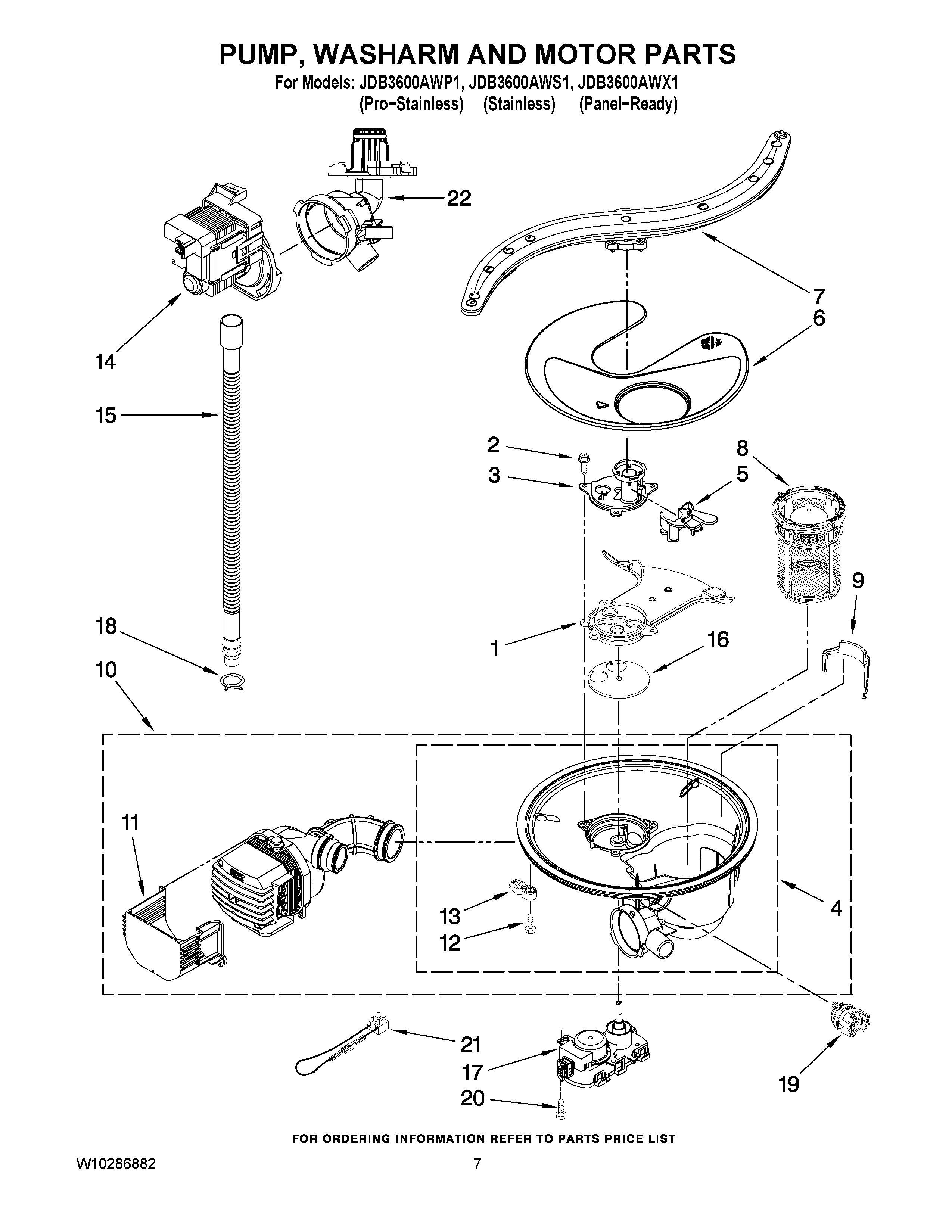

JDB3600AWP1 06 – PUMP, WASHARM AND MOTOR PARTS

Products

Position	Product
2	MAY 3400069
3	MAY 8579241
4	SUMP WITH SEAL (INCLUDES ITEMS 12, 13 AND 2 HOSE CLAMPS)
5	MAY 8579298
6	MAY 8579253
7	MAY W10234638
8	MAY W10234631
9	MAY W10056308
10	MAY W10234567
11	MAY 8579272
12	SCREW
13	MAY 8579289
14	MAY W10158351
15	MAY 8269144
16	MAY 8579251
17	MOTOR DIVERTER VALVE (INCLUDES ITEM 21)
18	MAY 356138
19	MAY W10134017
20	MAY 9741232
21	FUSE, IN-LINE
22	DE-COUPLED DRAIN ASSEMBLY
