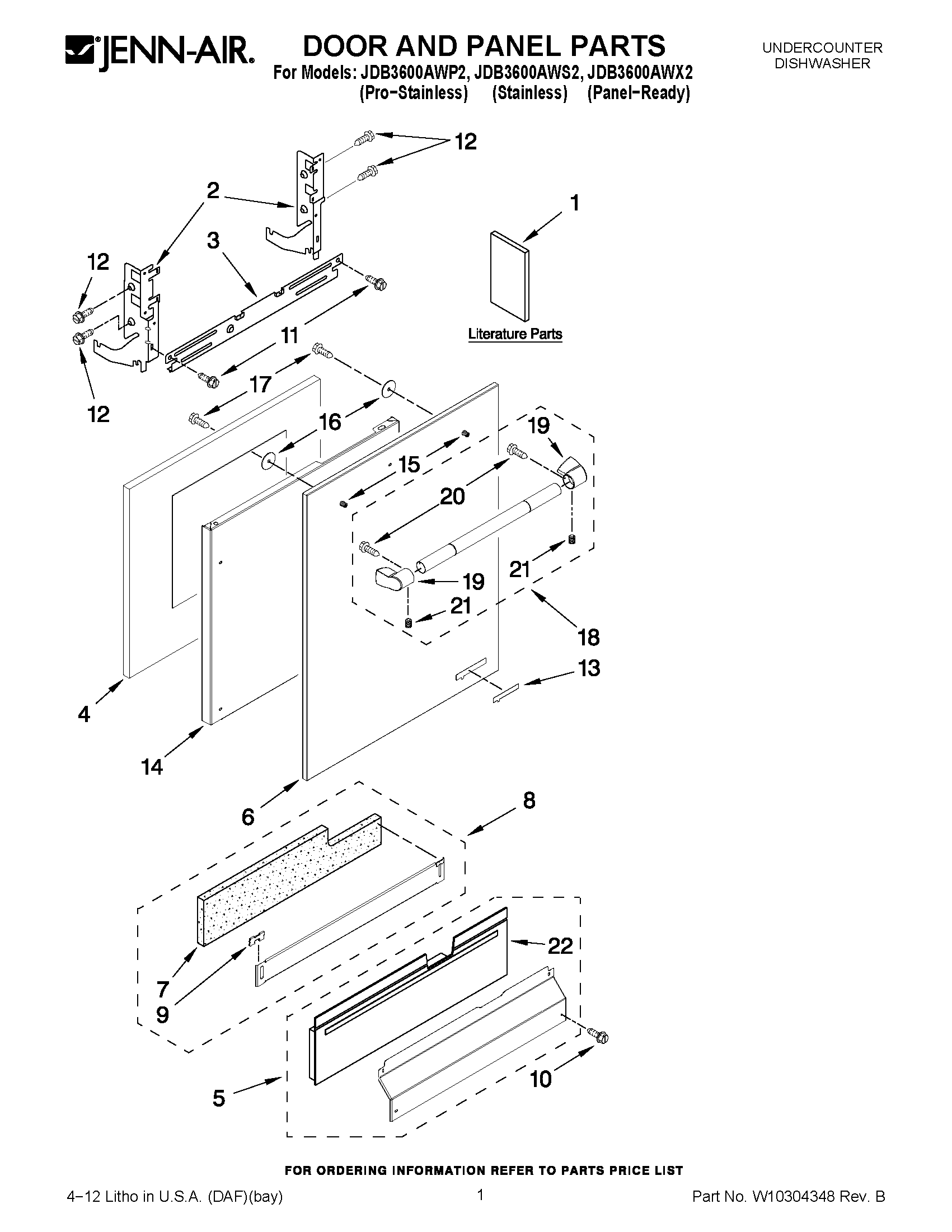

JDB3600AWP2 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	MAY W10247484
1	MAY W10208701
1	MAY W10208700
1	MAY W10208727
1	TECH SHEET
1	MAY W10158347
2	MAY 8534853
2	MAY 8534854
3	MAY 8268983
4	INSULATION, FRONT PANEL
5	MAY W10287593
6	MAY W10234559
6	MAY W10234556
7	MAY W10056273
8	TOE PANEL (INCLUDES ITEMS 7 & 9) (BLACK)
9	CLIP, GROUNDING
10	SCREW (BLACK)
11	Screw
12	SCREW
13	NAMEPLATE (STAINLESS)
14	PANEL, CUSTOM 6`` (BLACK)
15	STUD, MOUNTING
16	PLATE, BACKING
17	MAY W10123421
18	HANDLE, DOOR
18	MAY W10056289
19	MAY W10194838
19	MAY W10194837
20	MAY W10276608
21	SCREW, SET
22	PAD, BARRIER
