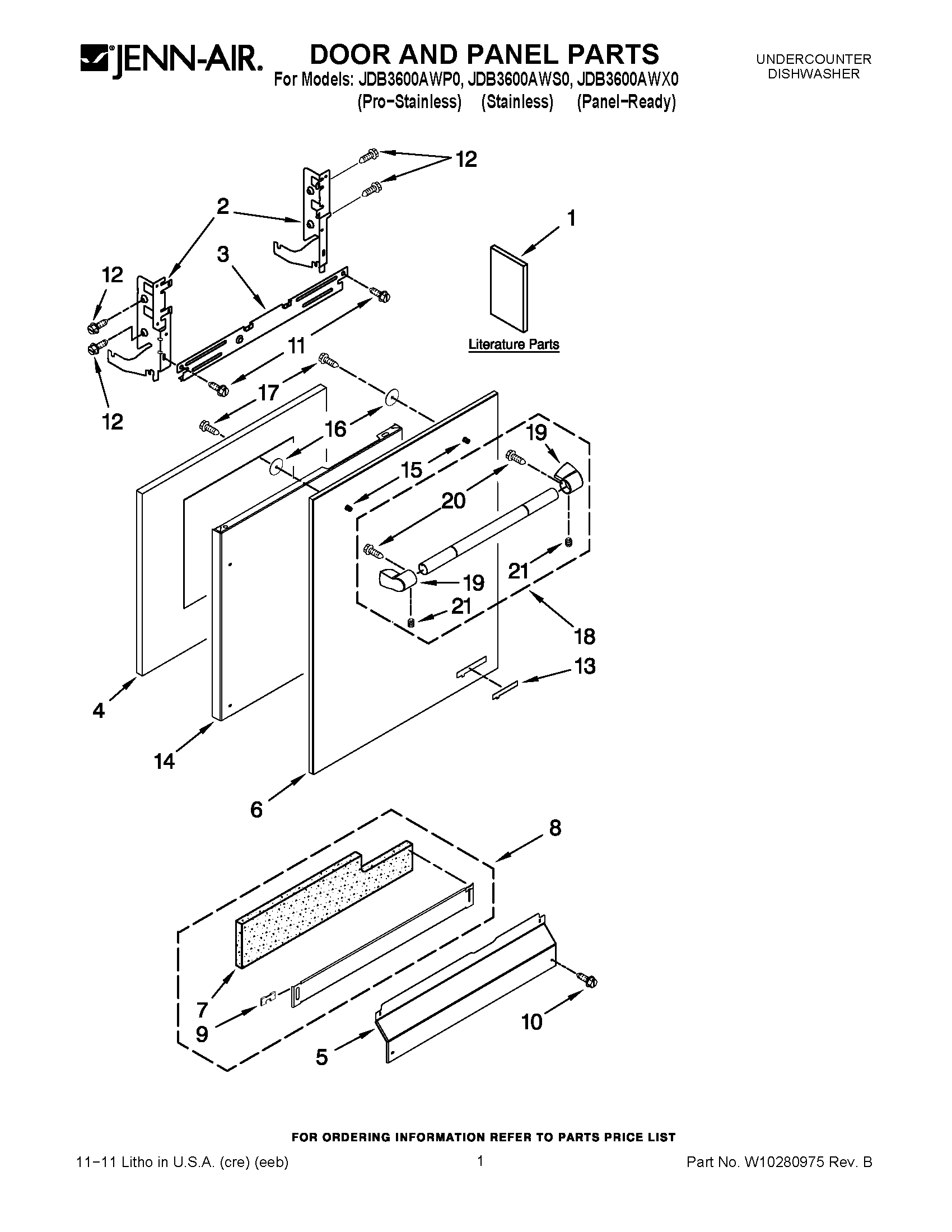

JDB3600AWS0 01 – DOOR AND PANEL PARTS

JDB3600AWS0 01 – DOOR AND PANEL PARTS

Written by

in

JDB3600AWS0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10253625
1MAY W10208701
1MAY W10208700
1MAY W10208727
2MAY 8534853
2MAY 8534854
3MAY 8268983
4INSULATION, FRONT PANEL
5ACCESS PANEL (BLACK)
6MAY W10234556
6MAY W10234558
7MAY W10056273
8TOE PANEL (INCLUDES ITEMS 7 & 9)
9CLIP, GROUNDING
10SCREW (BLACK)
11Screw
12SCREW
13NAMEPLATE (STAINLESS)
13ASSEMBLY, BADGE (STAINLESS)
14PANEL, CUSTOM 6“ (BLACK)
15STUD, MOUNTING
16PLATE, BACKING
17MAY W10123421
18HANDLE, DOOR
18MAY W10056289
19MAY W10194837
19MAY W10194838
20MAY M02073038
21SCREW, SET
