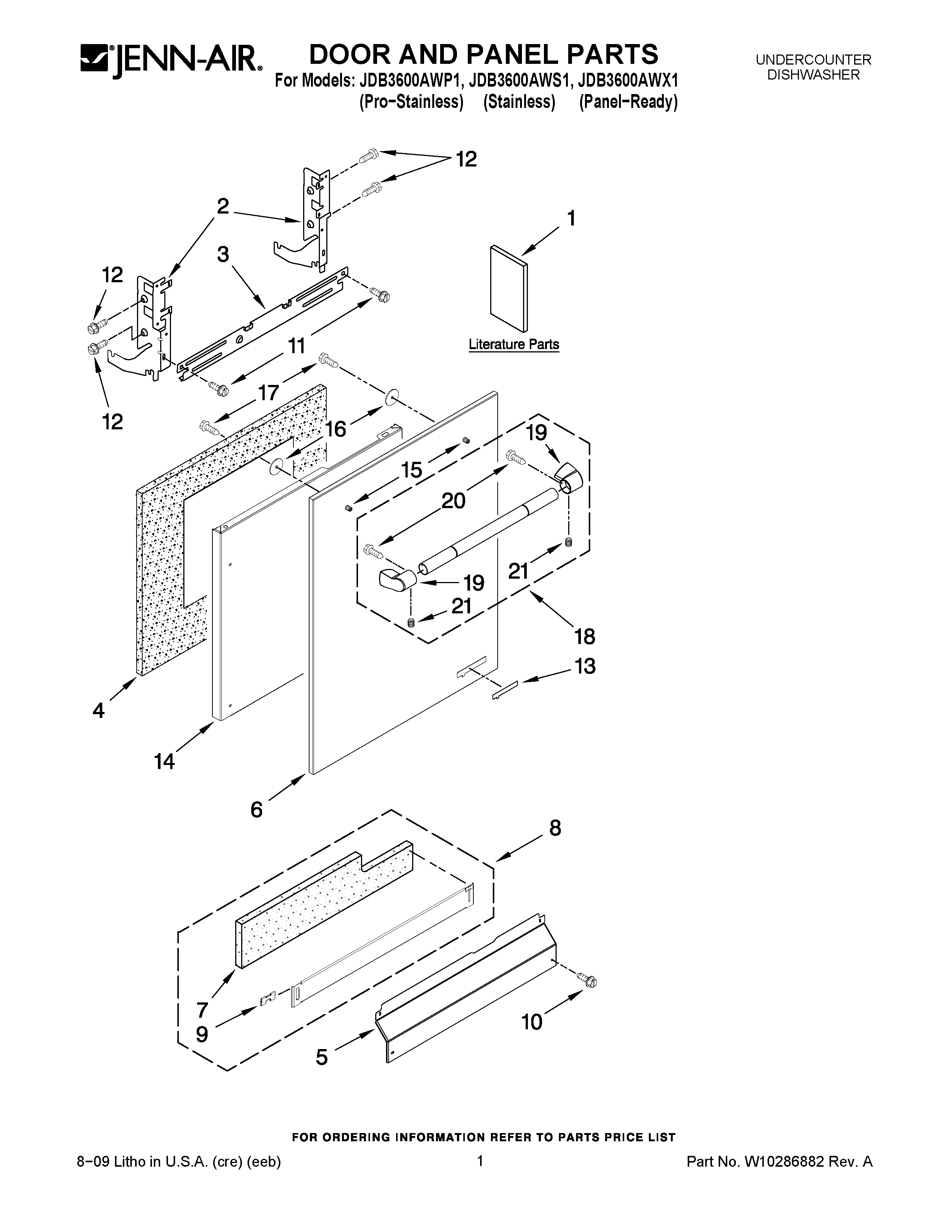

JDB3600AWS1 01 – DOOR AND PANEL PARTS

JDB3600AWS1 01 – DOOR AND PANEL PARTS

Written by

in

JDB3600AWS1 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	MAY W10208700
1	MAY W10247484
1	MAY W10208727
1	MAY W10208701
2	MAY 8534853
2	MAY 8534854
3	MAY 8268983
4	INSULATION, FRONT PANEL
5	ACCESS PANEL (BLACK)
6	MAY W10234556
6	MAY W10234559
6	MAY W10234558
7	MAY W10056273
8	TOE PANEL (INCLUDES ITEMS 7 & 9)
9	CLIP, GROUNDING
10	SCREW (BLACK)
11	Screw
12	SCREW
13	NAMEPLATE (STAINLESS)
14	PANEL, CUSTOM 6“ (BLACK)
15	STUD, MOUNTING
16	PLATE, BACKING
17	MAY W10123421
18	HANDLE, DOOR
19	MAY W10194838
19	MAY W10194837
20	MAY M02073038
21	SCREW, SET
