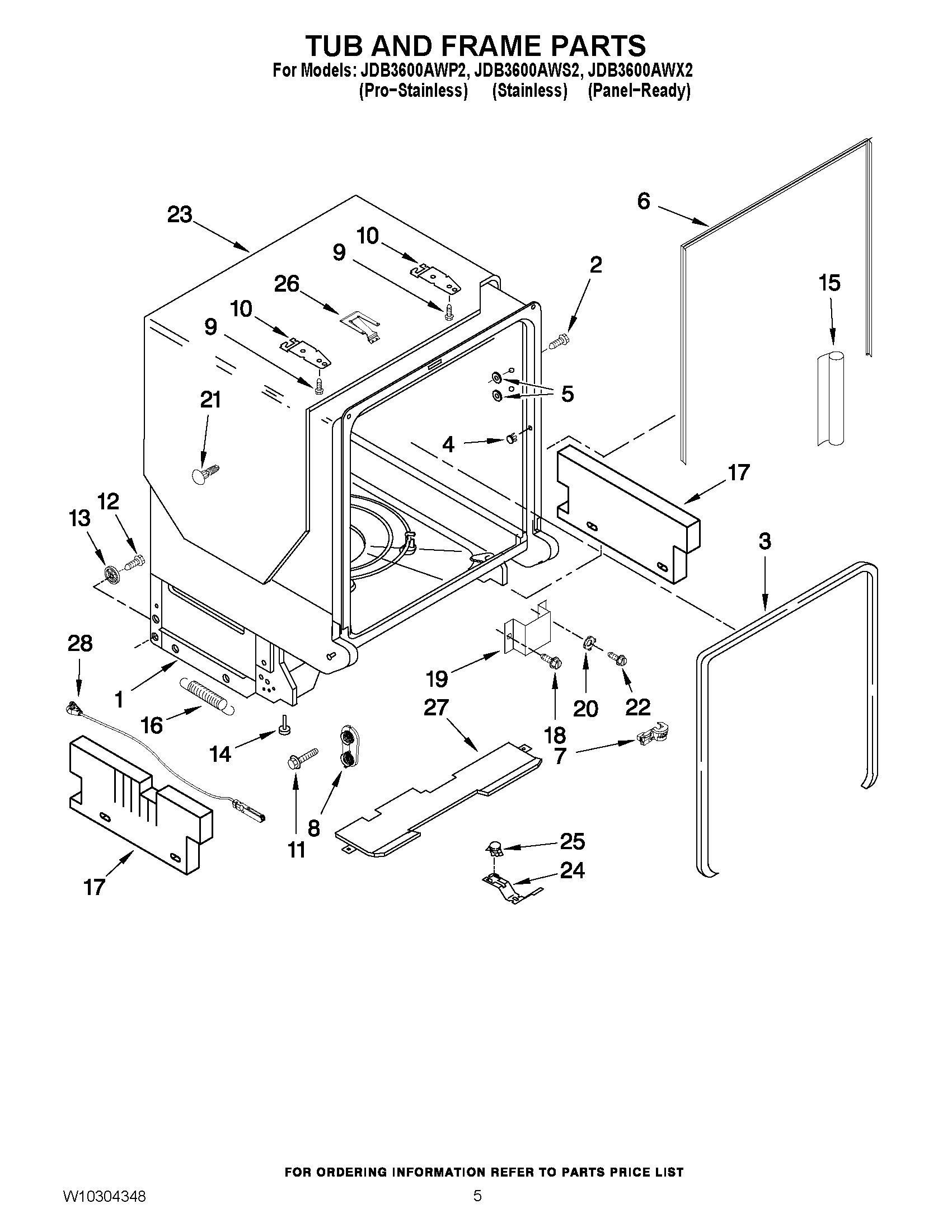

JDB3600AWS2 05 – TUB AND FRAME PARTS

JDB3600AWS2 05 – TUB AND FRAME PARTS

Written by

in

JDB3600AWS2 05 – TUB AND FRAME PARTS

Products

Position	Product
1	TUB ASSEMBLY
2	SCREW
3	MAY W10112096
4	MAY W10082838
5	MAY 9743002
6	SEAL, CABINET
7	MAY 8573061
8	DOOR BALANCE ASSEMBLY
9	MAY 3367670
10	MAY 8269145
11	SCREW
12	SCREW
13	WHEEL, LEG
14	MAY 8524584
15	BARRIER,MOISTURE
16	SPRING, DOOR BALANCE
17	SIDE SHIELD (RIGHT AND LEFT)
18	MAY 3400892
19	MAY 8268991
20	WASHER, PRONGED CUP
21	RETAINER, PUSH
22	MAY 3400014
23	MAY 8573239
24	MAY 9742648
25	MAY 661566
26	MAY W10077370
27	INSULATION, BOTTOM
28	CABLE, DOOR ASSEMBLY
