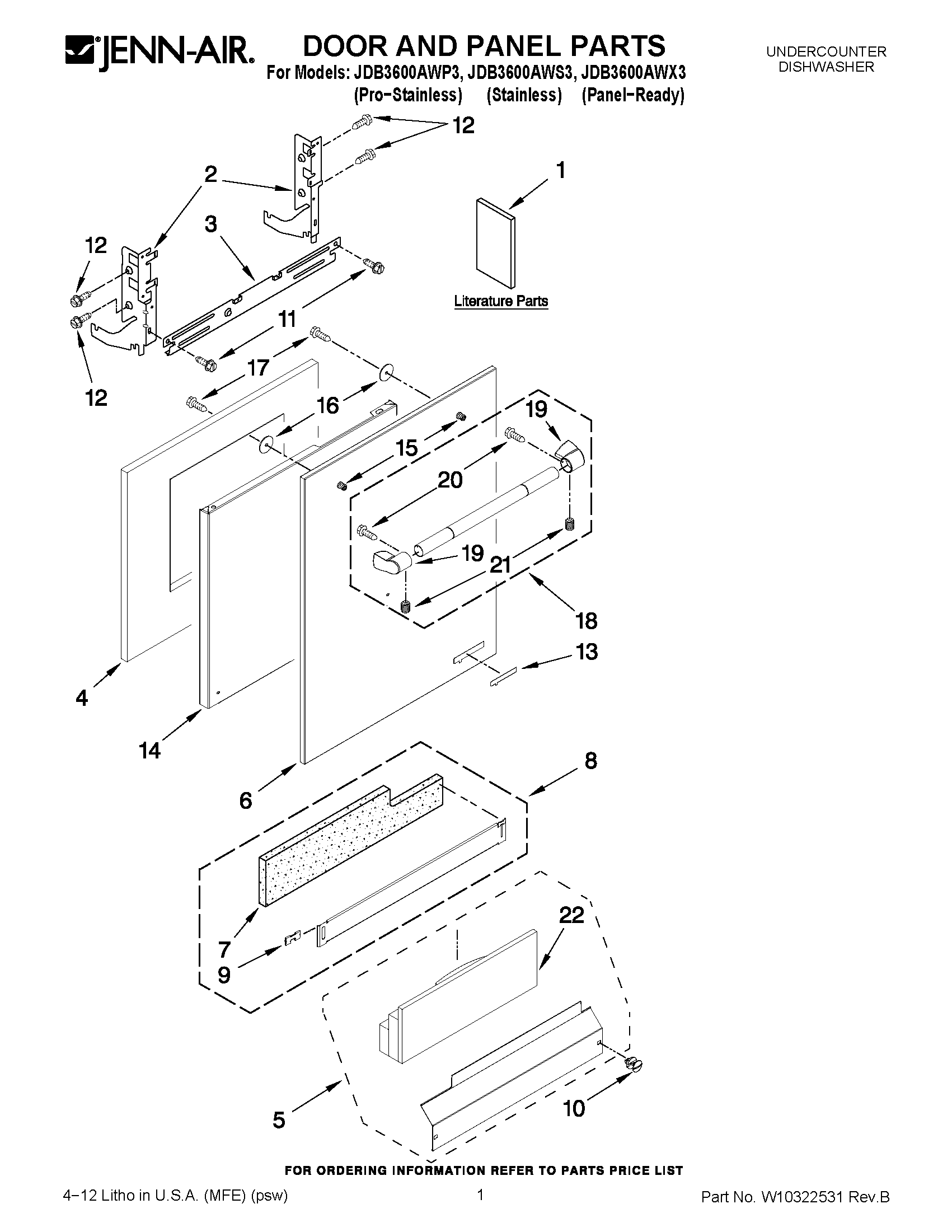

JDB3600AWS3 01 – DOOR AND PANEL PARTS

JDB3600AWS3 01 – DOOR AND PANEL PARTS

Written by

in

JDB3600AWS3 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10282554
1MAY W10158347
1TECH SHEET
1MAY W10395347
1MAY W10300216
1MAY W10300217
2MAY 8534854
2MAY 8534853
3MAY 8268983
4INSULATION, FRONT PANEL
5MAY W10287593
6MAY W10234559
6MAY W10234558
7INSULATION, TOE PANEL
8TOE PANEL (INCLUDES ITEMS 7 & 9) (BLACK)
9CLIP, GROUNDING
10SCREW (BLACK)
11Screw
12SCREW
13NAMEPLATE (STAINLESS)
14PANEL, CUSTOM 6“ (BLACK)
15STUD, MOUNTING
16PLATE, BACKING
17MAY W10123421
18MAY W10194841
18MAY W10208769
19MAY W10194838
19MAY W10194837
20MAY M0207303
21SCREW, SET
22MAY W10350437
