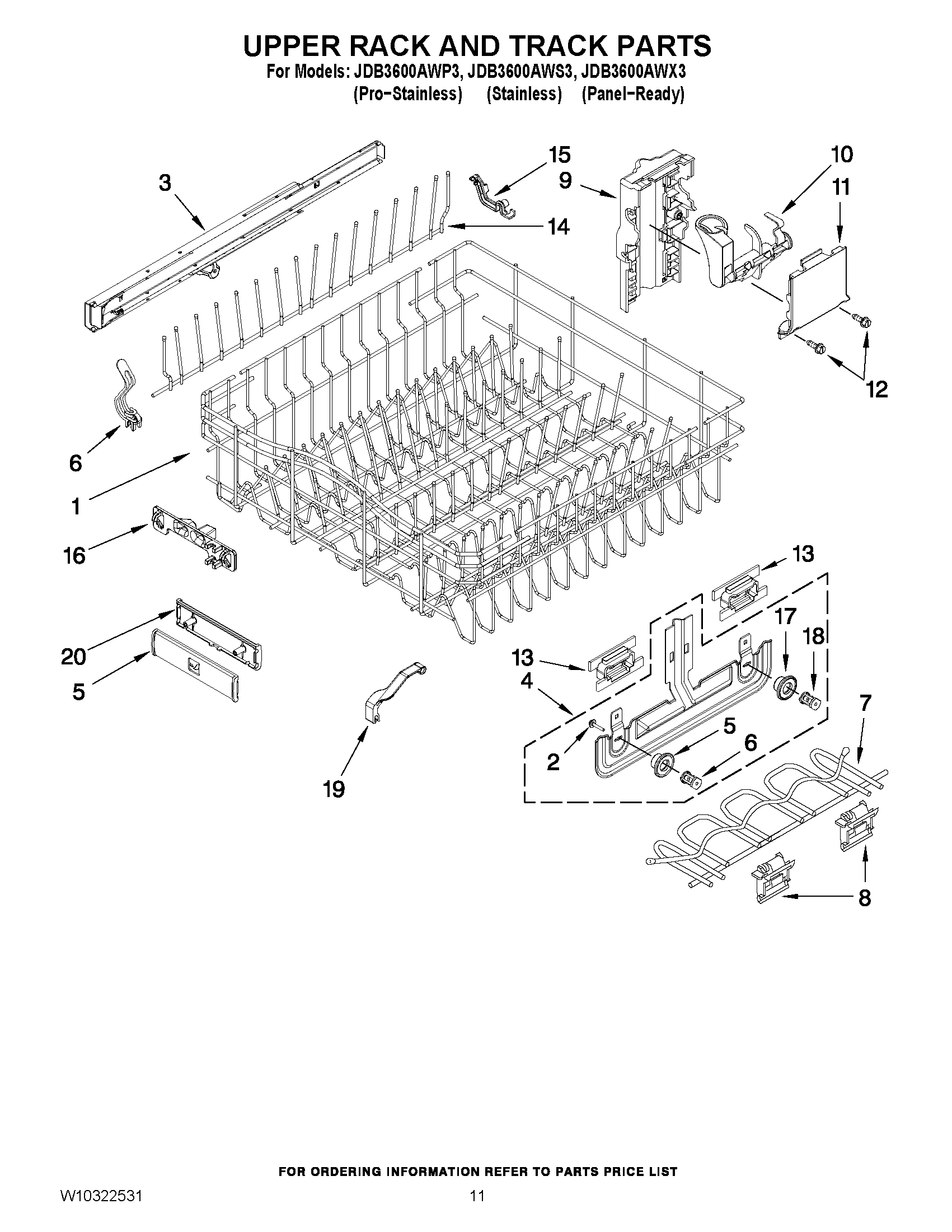

JDB3600AWS3 09 – UPPER RACK AND TRACK PARTS – Aparts

JDB3600AWS3 09 – UPPER RACK AND TRACK PARTS

Products

Position	Product
1	DISHRACK, UPPER
2	SCREW STATIONARY
3	MAY W10247512
3	MAY W10247511
4	ADJUSTER, ASSEMBLY
5	MAY W10056297
6	MAY W10238406
7	MAY W10208697
8	MAY W10238407
9	MAY W10238416
10	MAY W10238418
10	MAY W10238417
11	MAY W10238419
12	MAY 9741232
13	MAY W10238420
14	TINE, FOLD DOWN
15	MAY W10238404
16	MAY W10238405
17	MAY 8270138
18	MAY 8268703
19	CLIP, DISPENSER GUARD
20	MAY W10056298
