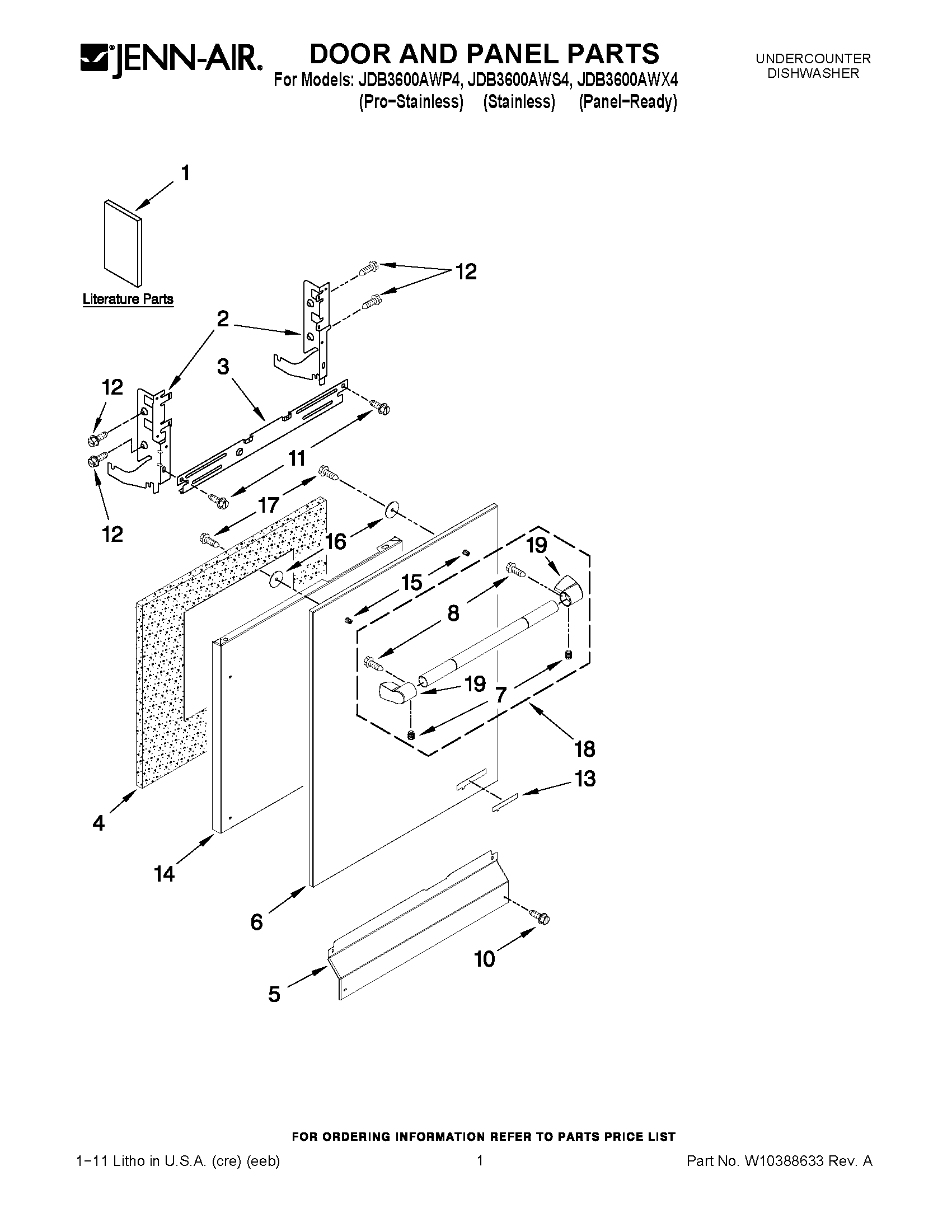

JDB3600AWS4 01 – DOOR AND PANEL PARTS

JDB3600AWS4 01 – DOOR AND PANEL PARTS

Written by

in

JDB3600AWS4 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10300217
1MAY W10300216
1TECH SHEET
1MAY W10158347
1MAY W10282554
1MAY W10311174
2MAY 8534854
2MAY 8534853
3MAY 8268983
4INSULATION, FRONT PANEL
5ACCESS PANEL (BLACK) (INCL.INSULATION)
6MAY W10234556
6MAY W10234559
6MAY W10234558
7SCREW, SET
8MAY M02073030
10SCREW (BLACK)
11Screw
12SCREW
13NAMEPLATE (STAINLESS)
14PANEL, CUSTOM 6“ (BLACK)
15STUD, MOUNTING
16PLATE, BACKING
17MAY W10123421
18MAY W10056289
18HANDLE, DOOR
19MAY W10194837
19MAY W10194838
