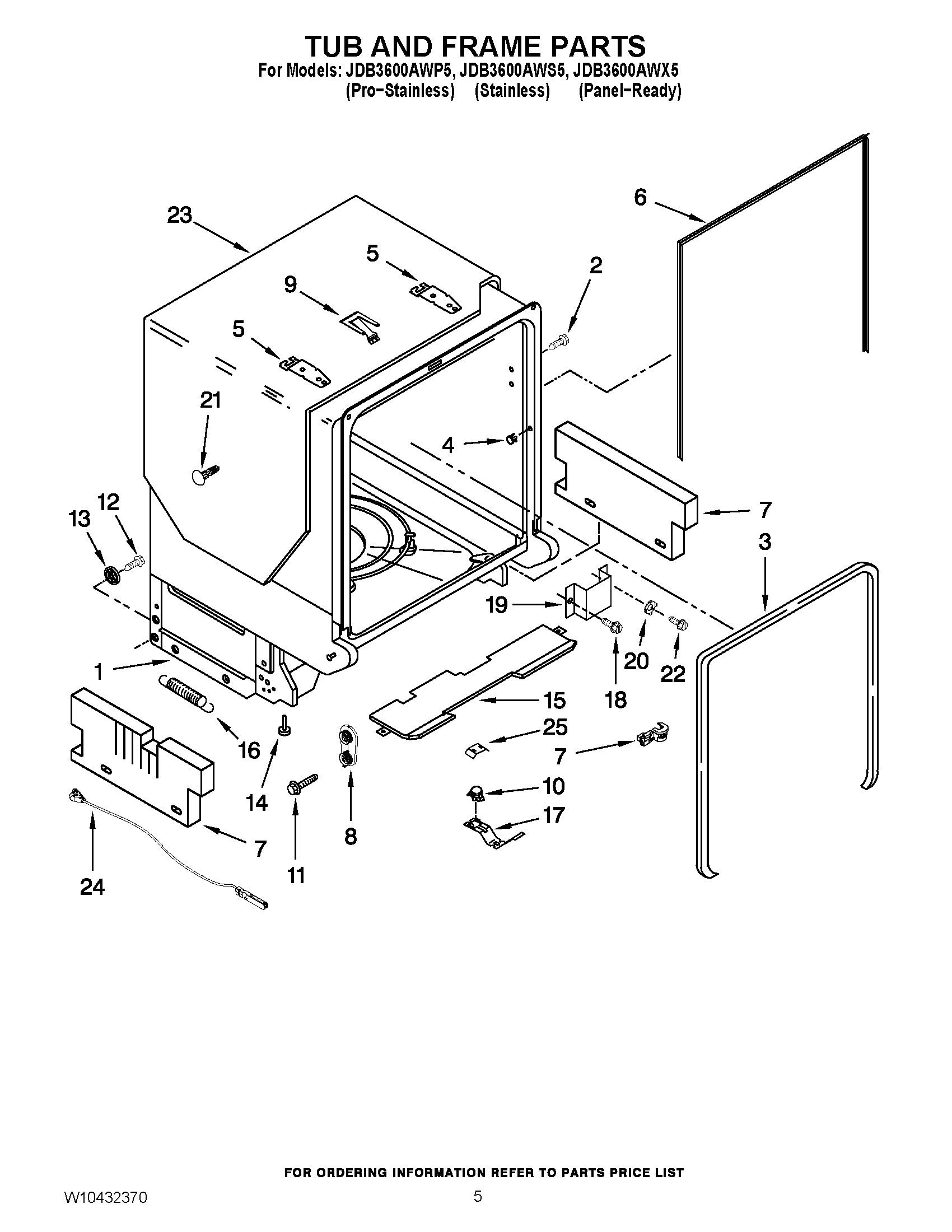

JDB3600AWS5 05 – TUB AND FRAME PARTS

JDB3600AWS5 05 – TUB AND FRAME PARTS

Written by

in

JDB3600AWS5 05 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10390317
2	MAY W10348407
3	MAY W10112096
4	MAY W10082838
5	MAY 8269145
6	SEAL, CABINET
7	SIDE SHIELD (RIGHT AND LEFT)
8	DOOR BALANCE ASSEMBLY
9	MAY W10317686
10	MAY W10339474
11	SCREW
12	MAY W10348411
13	WHEEL, LEG
14	MAY 8524584
15	INSULATION BOTTOM
16	SPRING, DOOR BALANCE
17	MAY W10450559
18	MAY 3400892
19	MAY 8268991
20	WASHER, PRONGED CUP
21	RETAINER, PUSH
22	MAY 3400014
23	MAY 8573239
24	CABLE, DOOR ASSEMBLY
25	MAY W10292870
