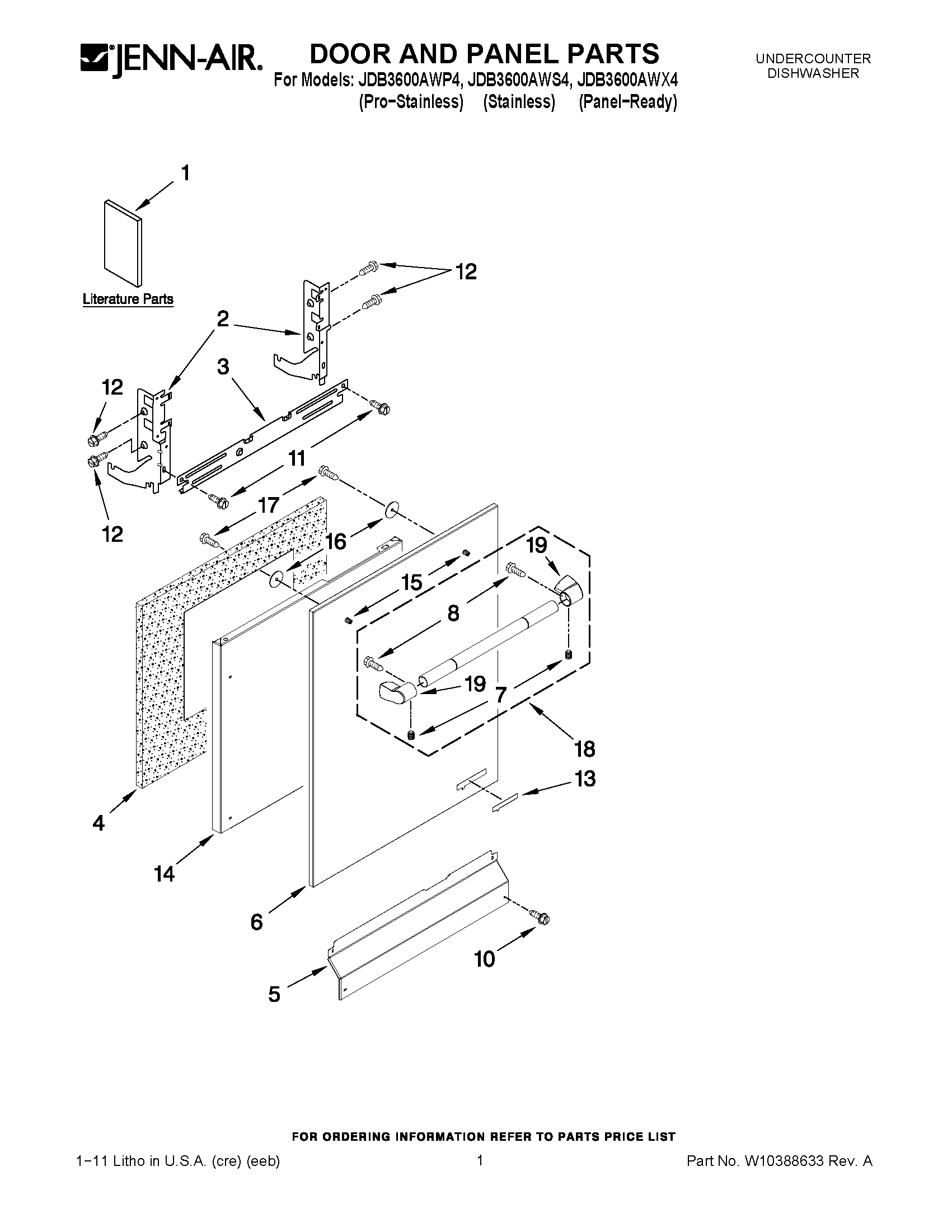

JDB3600AWX4 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	MAY W10300217
1	MAY W10300216
1	TECH SHEET
1	MAY W10158347
1	MAY W10282554
1	MAY W10311174
2	MAY 8534854
2	MAY 8534853
3	MAY 8268983
4	INSULATION, FRONT PANEL
5	ACCESS PANEL (BLACK) (INCL.INSULATION)
6	MAY W10234556
6	MAY W10234559
6	MAY W10234558
7	SCREW, SET
8	MAY M02073030
10	SCREW (BLACK)
11	Screw
12	SCREW
13	NAMEPLATE (STAINLESS)
14	PANEL, CUSTOM 6`` (BLACK)
15	STUD, MOUNTING
16	PLATE, BACKING
17	MAY W10123421
18	MAY W10056289
18	HANDLE, DOOR
19	MAY W10194837
19	MAY W10194838
