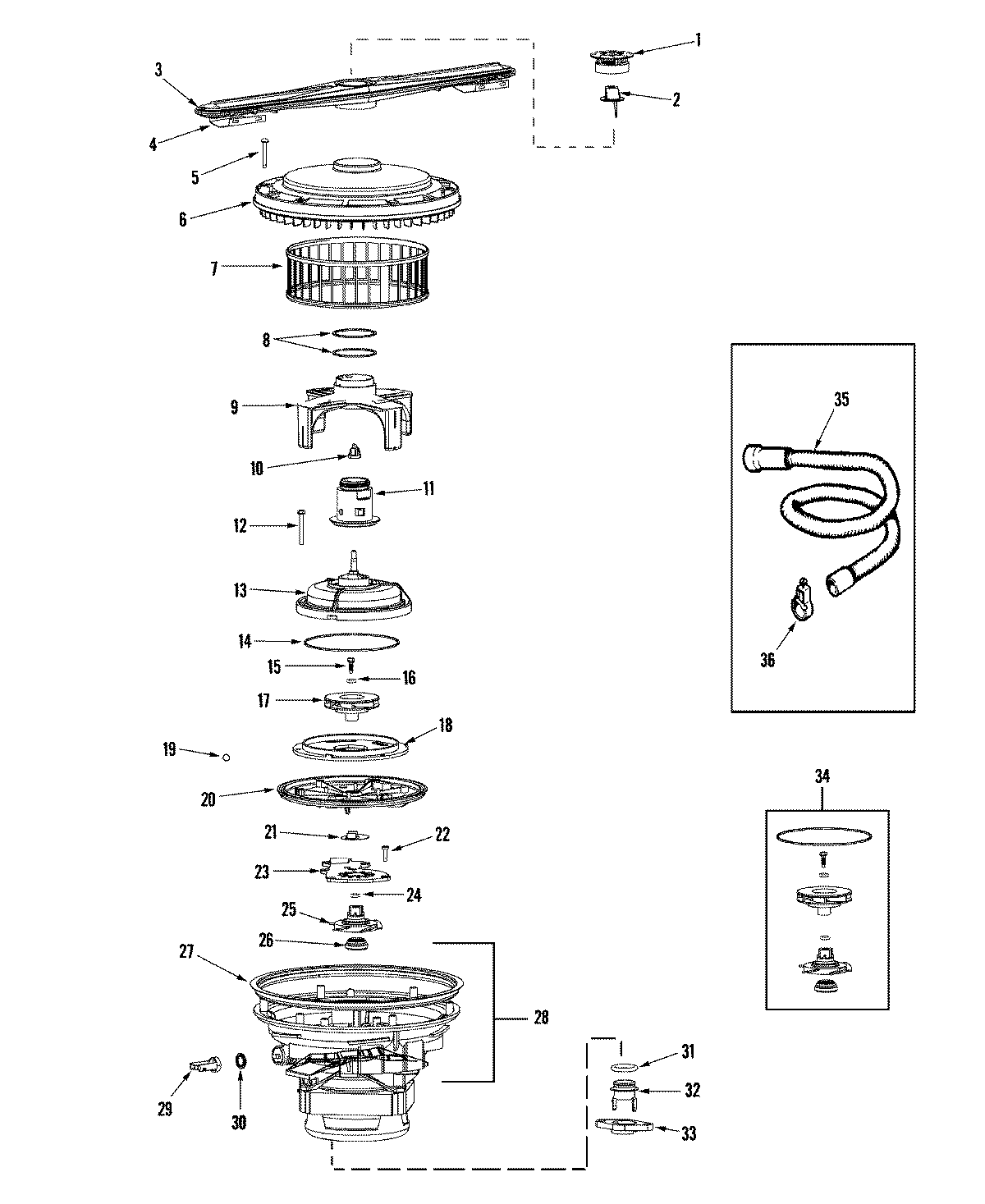

JDB3610AWE 03 – PUMP & MOTOR

Products

Position	Product
2	MAY 99002424
3	MAY 99002419
4	MAY 99002288
5	MAY 912622
6	MAY 99002466
7	WP99001791 Whirlpool Dishwasher Pump Filter
8	MAY 912313
9	MAY 99002043
10	MAY 99001426
12	MAY 912383
13	MAY 99002461
14	MAY 99001326
15	MAY 910654
16	WP910934 Whirlpool Dishwasher O-Ring
17	WP99002069 Whirlpool Dishwasher Impeller
18	MAY 99002279
19	MAY 99002423
20	MAY 99002280
21	MAY 912310
22	61002031 Whirlpool Air Conditioner Handle Screw
23	MAY 912309
24	MAY 912510
25	MAY 903304
26	MAY 902882
27	MAY 912529
28	MAY 99002481
29	MAY 99001800
30	MAY 99001799
31	99001979 Whirlpool Dishwasher Pump Thermostat O-Ring
32	MAY 99002070
33	SCREW, No.8X1/2 HEX WASHER HEAD
33	MAY 99001980
34	MAY 99002103
35	WP99001782 Whirlpool Dishwasher Drain Hose
36	WP616099 Whirlpool Clamp
