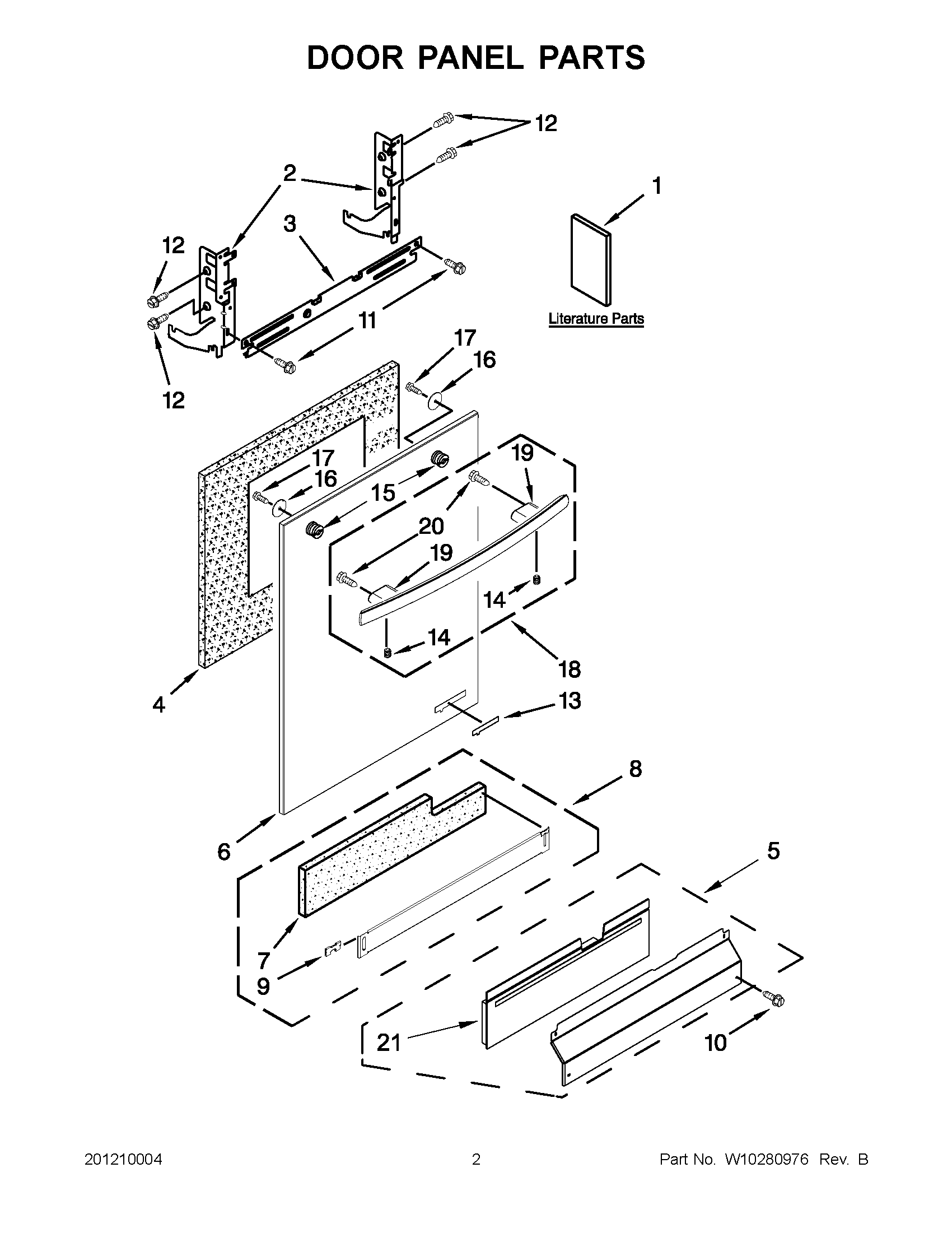

JDB3650AWF0 01 – DOOR PANEL PARTS

Products

Position	Product
1	MAY W10208700
1	MAY W10208727
1	MAY W10208701
1	MAY W10247484
1	TECH SHEET
1	MAY W10158347
2	MAY 8534854
2	MAY 8534853
3	MAY 8268983
4	MAY W10073520
5	MAY W10287592
5	MAY W10194851
6	PANEL, FULL FRONT (INCLUDES ITEMS 4, 13, 14, 16 & 17) (BRONZE)
6	PANEL, FULL FRONT (INCLUDES ITEMS 4, 13, 14, 16 & 17) (STAINLESS)
6	PANEL, FULL FRONT (INCLUDES ITEMS 4, 13, 14, 16 & 17) (BLACK)
7	MAY 8268581
8	TOE PANEL (INCLUDES ITEMS 7 & 9) (WHITE)
8	TOE PANEL (INCLUDES ITEMS 7 & 9) (BLACK)
9	CLIP, GROUNDING
10	SCREW (BLACK)
10	WP3400836 Whirlpool Dishwasher Screw
11	Screw
12	SCREW
13	ASSEMBLY, BADGE (WHITE)
13	ASSEMBLY, BADGE (OILED BRONZE)
13	ASSEMBLY, BADGE (BLACK)
14	MAY W10276608
15	STUD, MOUNTING
15	MAY W10208695
16	PLATE, BACKING
17	MAY W10123421
18	MAY W10234541
18	MAY W10208770
18	MAY W10208771
19	STANDOFF (L.HAND(WHITE))
19	STANDOFF (L.HAND(BRONZE))
19	STANDOFF (L.HAND(BLACK))
19	STANDOFF (R.HAND(WHITE))
19	STANDOFF (R.HAND(BLACK))
19	STANDOFF (R.HAND(BRONZE))
20	MAY W10201588
21	TOE PANEL (INCLUDES ITEMS 7 & 9)
