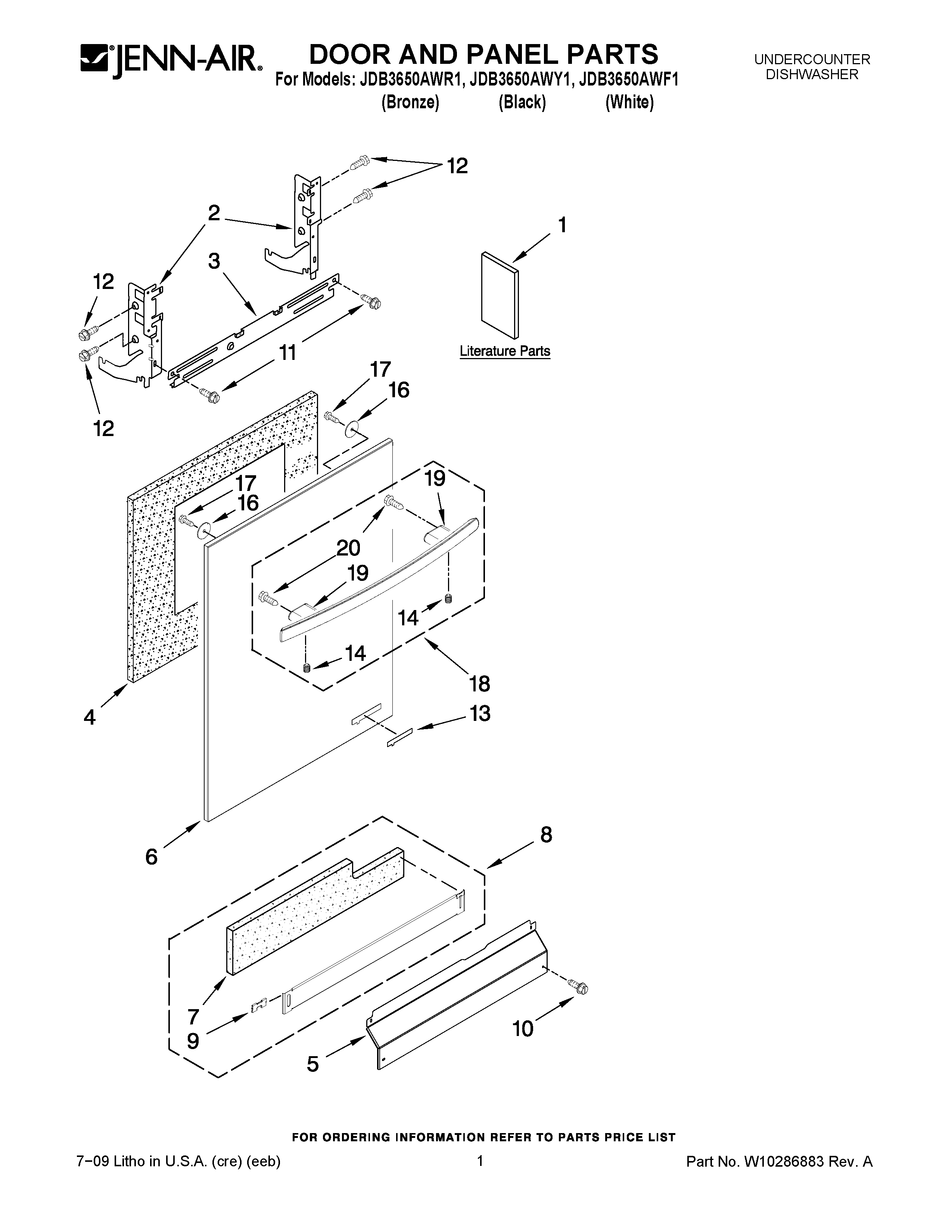

JDB3650AWF1 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	MAY W10247484
1	MAY W10208701
1	MAY W10208700
1	MAY W10208727
2	MAY 8534853
2	MAY 8534854
3	MAY 8268983
4	MAY W10073520
5	MAY 8573256
5	ACCESS PANEL (BLACK)
6	PANEL, FULL FRONT (INCLUDES ITEMS 4, 13, 14, 16 & 17) (BRONZE)
6	PANEL, FULL FRONT (INCLUDES ITEMS 4, 13, 14, 16 & 17) (BLACK)
6	PANEL, FULL FRONT (INCLUDES ITEMS 4, 13, 14, 16 & 17) (STAINLESS)
7	MAY W10056273
8	TOE PANEL (INCLUDES ITEMS 7 & 9)
9	CLIP, GROUNDING
10	SCREW (BLACK)
11	Screw
12	SCREW
13	ASSEMBLY, BADGE (OILED BRONZE)
13	ASSEMBLY, BADGE (BLACK)
13	ASSEMBLY, BADGE (WHITE)
14	MAY W10276608
16	PLATE, BACKING
17	MAY W10123421
18	MAY W10056415
18	MAY W10056414
18	MAY W10056382
19	STANDOFF (R.HAND(BRONZE))
19	STANDOFF (R.HAND(BLACK))
19	STANDOFF (R.HAND(WHITE))
19	STANDOFF (L.HAND(BLACK))
19	STANDOFF (L.HAND(WHITE))
19	MAY W10056318
20	MAY W10205188
