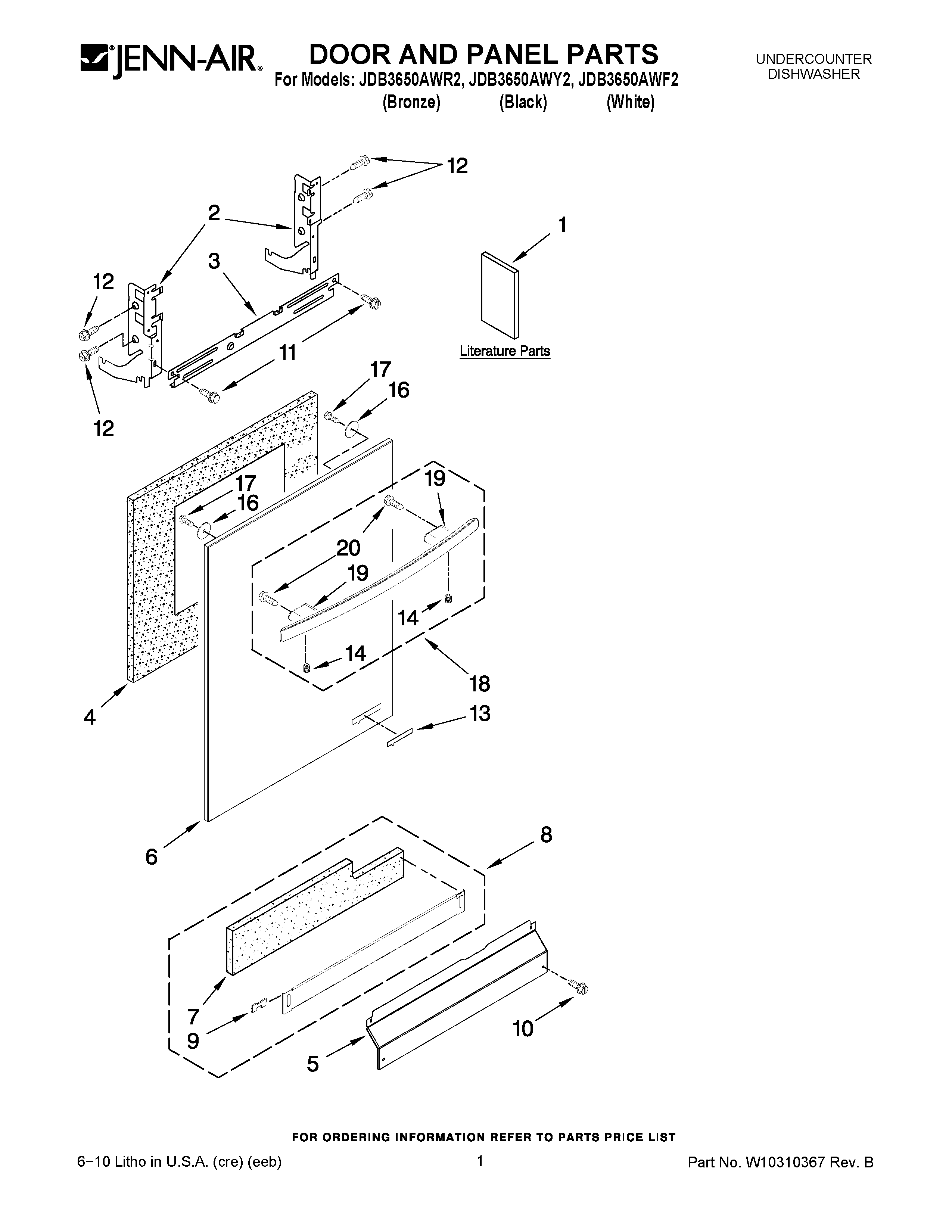

JDB3650AWF2 01 – DOOR AND PANEL PARTS

JDB3650AWF2 01 – DOOR AND PANEL PARTS

Written by

in

JDB3650AWF2 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1MAY W10247484
1MAY W10208700
1MAY W10208727
1MAY W10208701
2MAY 8534853
2MAY 8534854
3MAY 8268983
4MAY W10073520
5ACCESS PANEL (BLACK)
5MAY 8573256
6PANEL, FULL FRONT (INCLUDES ITEMS 4, 13, 14, 16 & 17) (STAINLESS)
6PANEL, FULL FRONT (INCLUDES ITEMS 4, 13, 14, 16 & 17) (BLACK)
6PANEL, FULL FRONT (INCLUDES ITEMS 4, 13, 14, 16 & 17) (BRONZE)
7MAY W10056273
8TOE PANEL (INCLUDES ITEMS 7 & 9)
9CLIP, GROUNDING
10SCREW (BLACK)
11Screw
12SCREW
13ASSEMBLY, BADGE (WHITE)
13ASSEMBLY, BADGE (OILED BRONZE)
13ASSEMBLY, BADGE (BLACK)
14MAY W10276608
16PLATE, BACKING
17MAY W10123421
18MAY W10056415
18MAY W10056414
18MAY W10056382
19STANDOFF (L.HAND(BLACK))
19STANDOFF (R.HAND(WHITE))
19STANDOFF (R.HAND(BLACK))
19STANDOFF (L.HAND(BRONZE))
19STANDOFF (R.HAND(BRONZE))
19STANDOFF (L.HAND(WHITE))
20MAY W10201588
