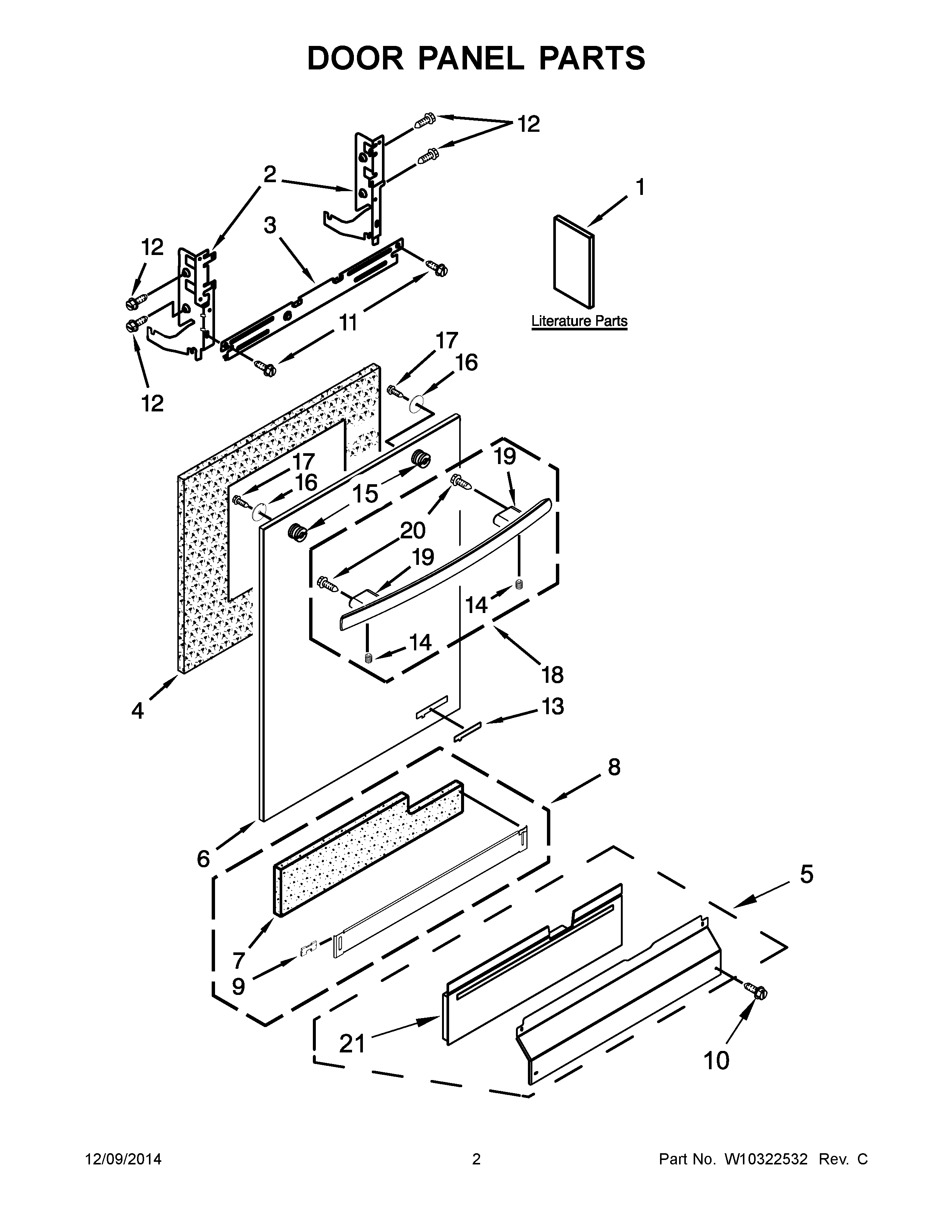

JDB3650AWF3 02 – DOOR PANEL PARTS

Products

Position	Product
1C	TECH SHEET
1A	MAY W10300216
1	MAY W10282554
1D	MAY W10158347
1B	MAY W10300217
2	MAY 8534854
2A	MAY 8534853
3	MAY 8268983
4	MAY W10073520
5A	MAY W10287592
5	MAY W10287593
6	PANEL, FULL FRONT (INCLUDES ITEMS 4, 13, 14, 16 & 17) (BRONZE)
6B	PANEL, FULL FRONT (INCLUDES ITEMS 4, 13, 14, 16 & 17) (STAINLESS)
6A	PANEL, FULL FRONT (INCLUDES ITEMS 4, 13, 14, 16 & 17) (BLACK)
7	INSULATION, TOE PANEL
8	TOE PANEL (INCLUDES ITEMS 7 & 9) (BLACK)
8A	TOE PANEL (INCLUDES ITEMS 7 & 9) (WHITE)
9	CLIP, GROUNDING
10	SCREW (BLACK)
10A	WP3400836 Whirlpool Dishwasher Screw
11	Screw
12	SCREW
14	MAY W10276608
15A	MAY W10208695
15	STUD, MOUNTING
16	PLATE, BACKING
17	MAY W10123421
18B	ASSEMBLY, BADGE (WHITE)
18	ASSEMBLY, BADGE (OILED BRONZE)
18A	ASSEMBLY, BADGE (BLACK)
19B	STANDOFF (L.HAND(WHITE))
19A	STANDOFF (L.HAND(BLACK))
19E	STANDOFF (R.HAND(WHITE))
19D	STANDOFF (R.HAND(BLACK))
19C	STANDOFF (L.HAND(BRONZE))
19	STANDOFF (R.HAND(BRONZE))
20	MAY W10201588
21	MAY W10350437
