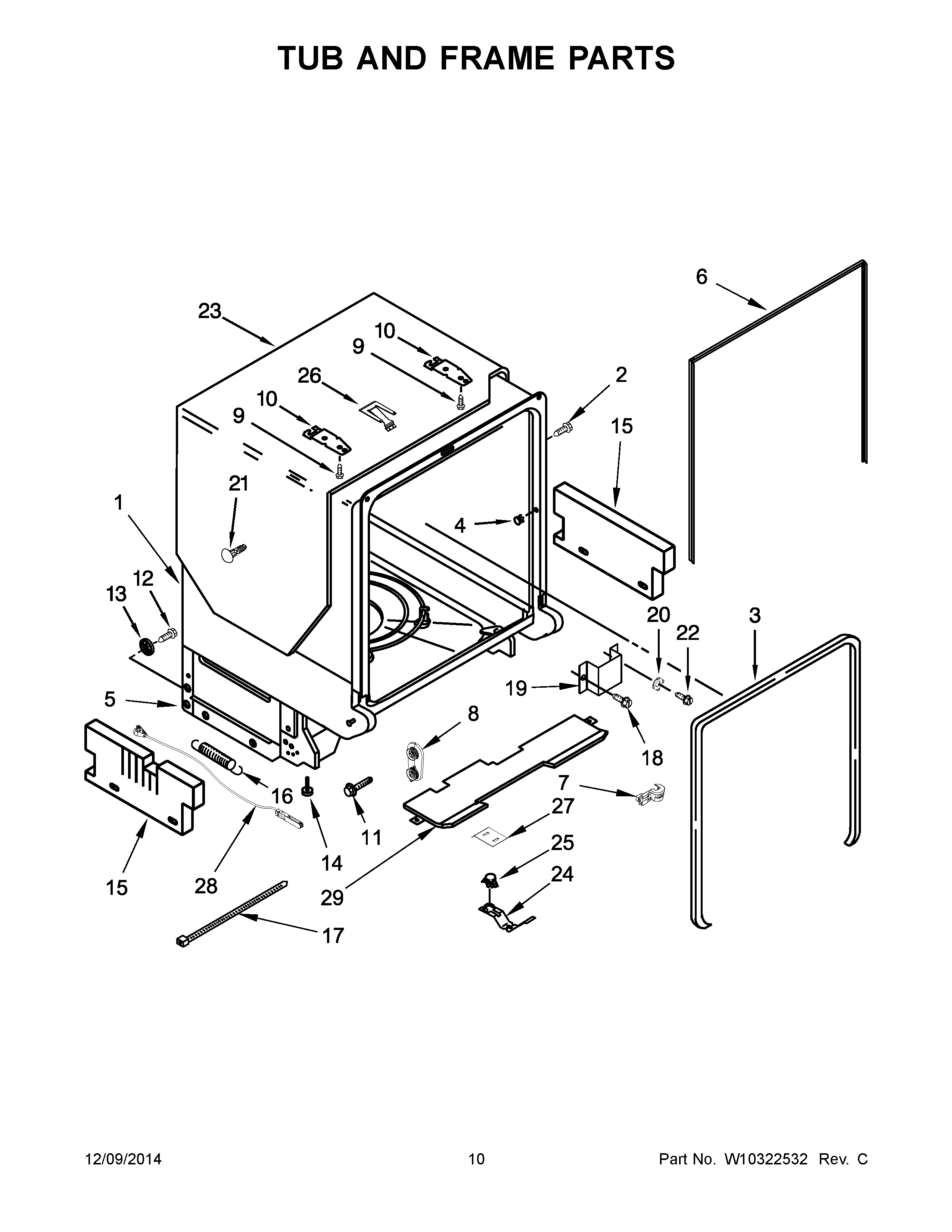

JDB3650AWF3 06 – TUB AND FRAME PARTS

JDB3650AWF3 06 – TUB AND FRAME PARTS

Written by

in

JDB3650AWF3 06 – TUB AND FRAME PARTS

Products

PositionProduct
1MAY W10319023
2MAY W10309090
3MAY W10112096
4MAY W10082838
5MAY W10185389
6SEAL, CABINET
7MAY W10337661
8DOOR BALANCE ASSEMBLY
9MAY 3367670
10MAY 8269145
11SCREW
12MAY W10348411
13WHEEL, LEG
14MAY W10304228
15SIDE SHIELD (RIGHT AND LEFT)
16MAY 8270020
16ASPRING, DOOR BALANCE
17MAY 8539404
18MAY 3400892
19MAY 8268991
20WASHER, PRONGED CUP
21RETAINER, PUSH
22MAY 3400014
23MAY 8573239
24MAY 9742648
25MAY 661566
26MAY W10317686
27MAY W10321574
28CABLE, DOOR ASSEMBLY
29INSULATION BOTTOM
