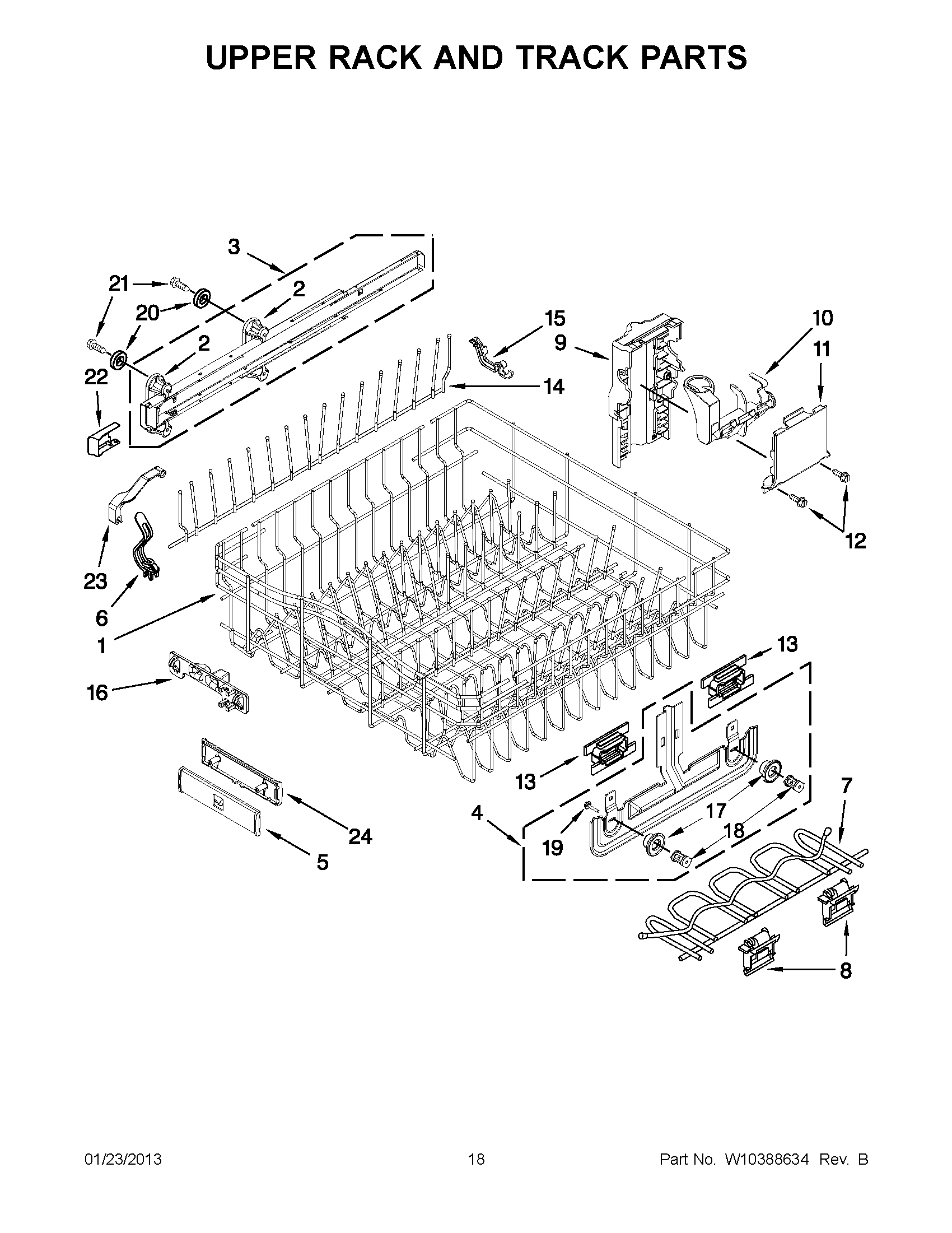

JDB3650AWF4 09 – UPPER RACK AND TRACK PARTS
Written by
in
JDB3650AWF4 09 – UPPER RACK AND TRACK PARTS
Products
Position
Product
1
DISHRACK, UPPER
2
MOUNT, WHEEL STATIONARY
3
MAY W10247512
3
MAY W10247511
4
ADJUSTER, ASSEMBLY
5
MAY W10056297
6
MAY W10238406
7
MAY W10208697
8
MAY W10238407
9
MAY W10238416
10
MAY W10238418
10
MAY W10238417
11
MAY W10238419
12
MAY 9741232
13
MAY W10238420
14
TINE, FOLD DOWN
15
MAY W10238404
16
MAY W10238405
17
MAY 8270138
18
MAY 8268703
19
SCREW STATIONARY
20
MAY 9743002
21
MAY W10309090
22
TRACK STOP (LEFT HAND)
22
TRACK STOP (RIGHT HAND)
23
CLIP, DISPENSER GUARD
24
MAY W10056298
←
