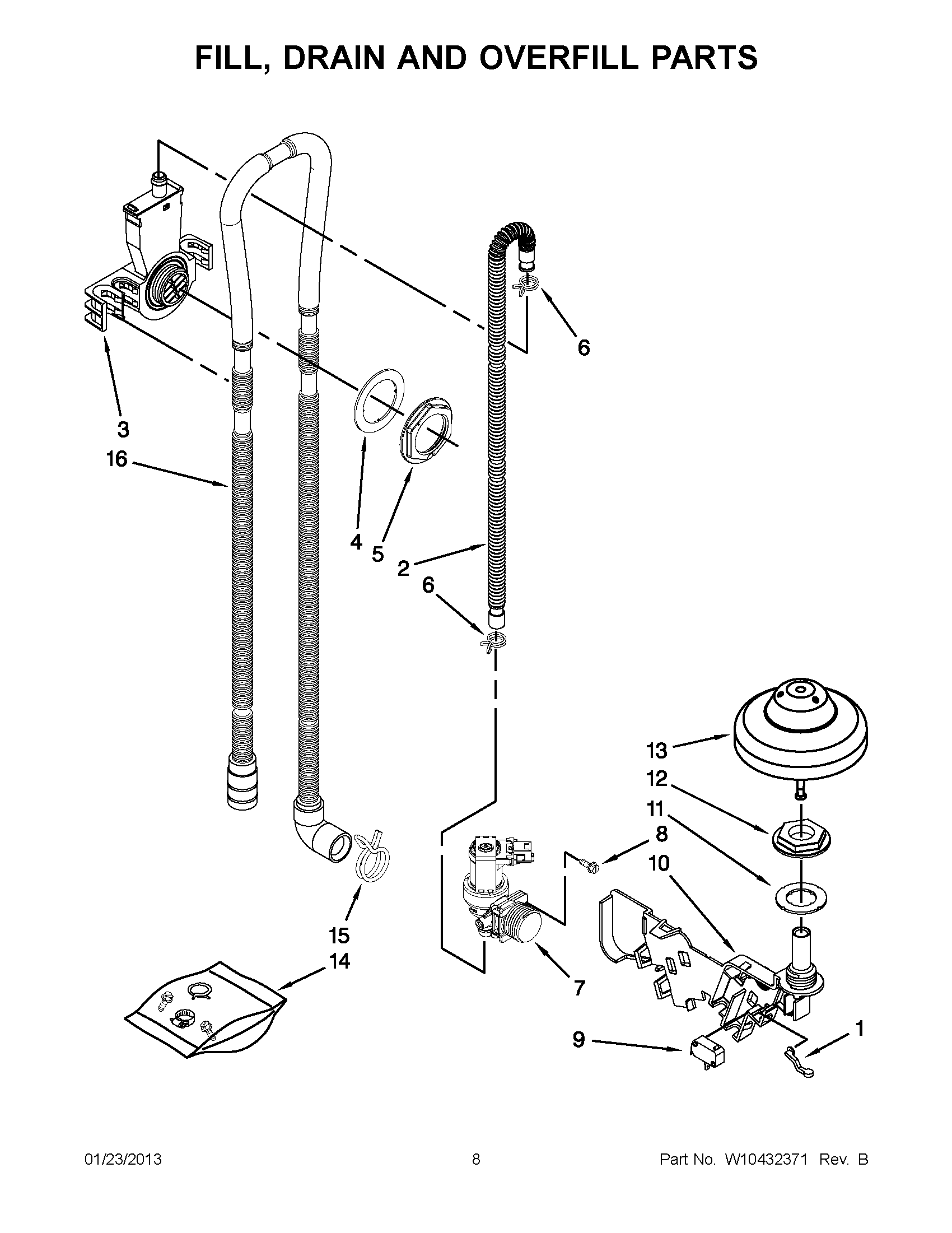

JDB3650AWF5 04 – FILL, DRAIN AND OVERFILL PARTS

JDB3650AWF5 04 – FILL, DRAIN AND OVERFILL PARTS

Written by

in

JDB3650AWF5 04 – FILL, DRAIN AND OVERFILL PARTS

Products

PositionProduct
1LEVER, OVERFLOW SWITCH
2MAY 8531412
3WATER INLET (ALSO ORDER ITEMS 4)
4MAY 8531323
5NUT, WATER INLET (ALSO ORDER ITEM 4)
6MAY 371505
7MAY W10316814
8Screw
9SWITCH, OVERFILL
10STANDPIPE, OVERFILL (ALSO INCLUDES ITEM 13)
11MAY 8531743
12MAY W10195038
13MAY W10077871
14MISCELLANEOUS PARTS BAG (CONTAINS 2 HOSE CLAMPS, SCREWS & 2UNDER COUNTER BRACKETS)
15MAY 370445
16MAY W10195751
