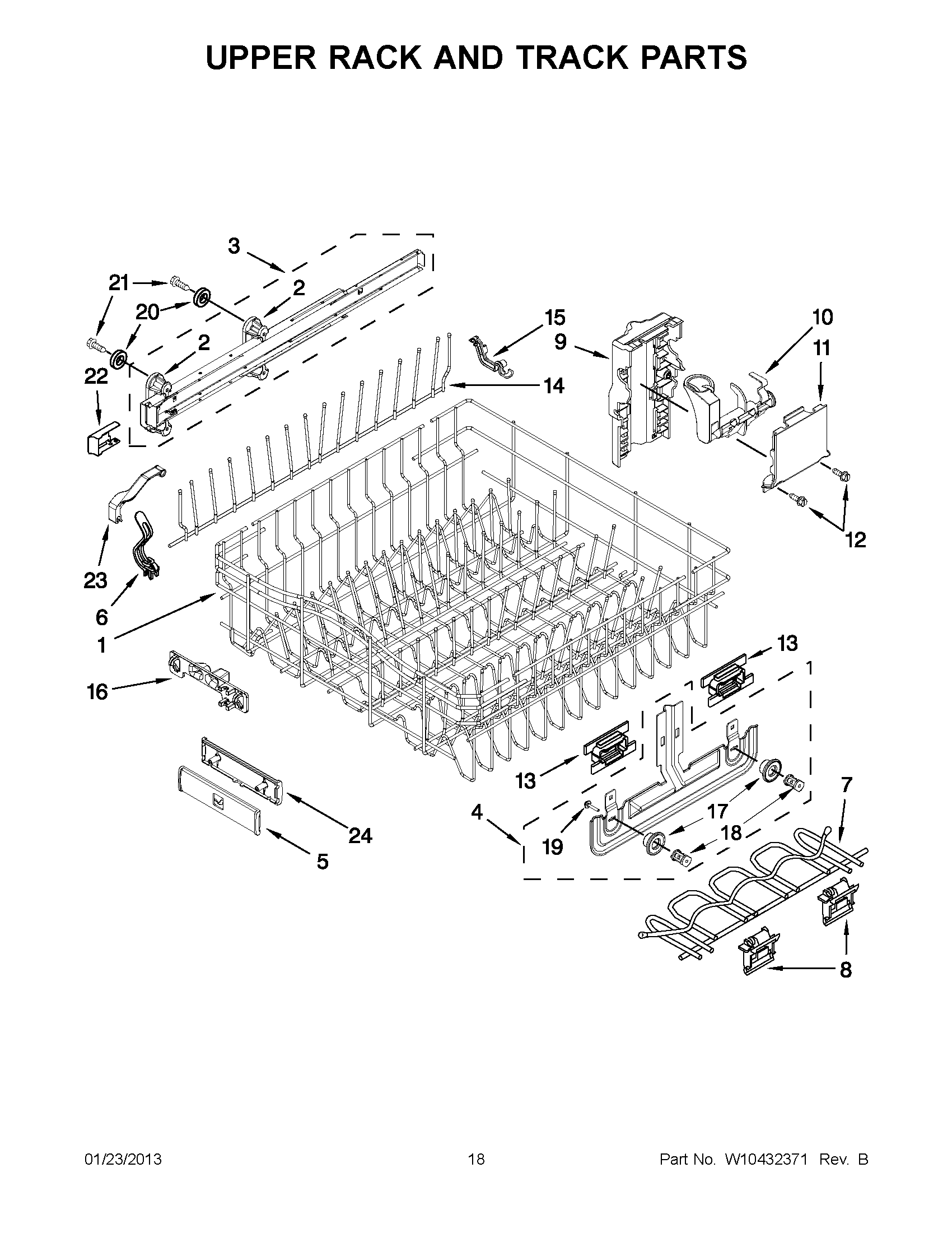

JDB3650AWF5 09 – UPPER RACK AND TRACK PARTS

Products

Position	Product
1	DISHRACK, UPPER
2	MOUNT, WHEEL STATIONARY
3	MAY W10247511
3	MAY W10247512
4	ADJUSTER, ASSEMBLY
5	MAY W10056297
6	MAY W10238406
7	MAY W10208697
8	MAY W10238407
9	MAY W10238416
10	MAY W10238417
10	MAY W10238418
11	MAY W10238419
12	MAY 9741232
13	MAY W10238420
14	TINE, FOLD DOWN
15	MAY W10238404
16	MAY W10238405
17	MAY 8270138
18	MAY 8268703
19	SCREW STATIONARY
20	MAY 9743002
21	MAY W10348407
22	TRACK STOP (LEFT HAND)
22	TRACK STOP (RIGHT HAND)
23	CLIP, DISPENSER GUARD
24	MAY W10056298
