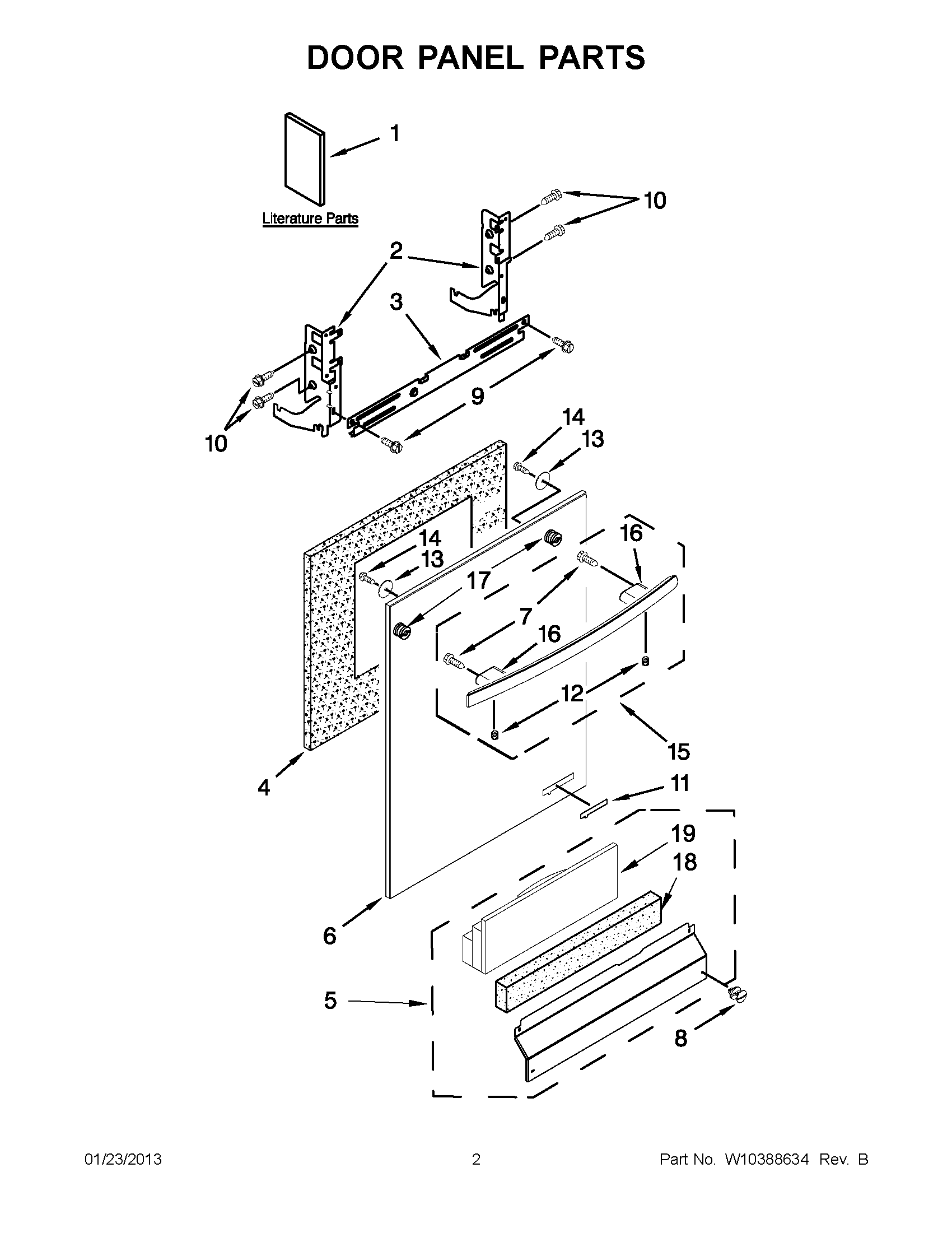

JDB3650AWR4 01 – DOOR PANEL PARTS

Products

Position	Product
1	MAY W10311174
1	TECH SHEET
1	MAY W10300217
1	MAY W10300216
1	MAY W10321619
1	MAY W10158347
2	MAY 8534853
2	MAY 8534854
3	MAY 8268983
4	MAY W10073520
5	MAY W10368715
5	MAY W10368716
6	PANEL, FULL FRONT (INCLUDES ITEMS 4, 13, 14, 16 & 17) (BRONZE)
6	PANEL, FULL FRONT (INCLUDES ITEMS 4, 13, 14, 16 & 17) (STAINLESS)
6	PANEL, FULL FRONT (INCLUDES ITEMS 4, 13, 14, 16 & 17) (BLACK)
7	MAY W10201588
8	SCREW (BLACK)
8	SCREW (WHITE)
9	Screw
10	SCREW
11	ASSEMBLY, BADGE (BLACK)
11	ASSEMBLY, BADGE (WHITE)
11	ASSEMBLY, BADGE (OILED BRONZE)
12	MAY W10276608
13	PLATE, BACKING
14	MAY W10123421
15	MAY W10208771
15	MAY W10234541
15	MAY W10208770
16	STANDOFF (L.HAND(WHITE))
16	STANDOFF (L.HAND(BLACK))
16	STANDOFF (R.HAND(WHITE))
16	STANDOFF (R.HAND(BLACK))
16	STANDOFF (L.HAND(BRONZE))
16	STANDOFF (R.HAND(BRONZE))
17	MAY W10208695
17	STUD, MOUNTING
18	INSULATION, TOE PANEL
19	MAY W10350437
