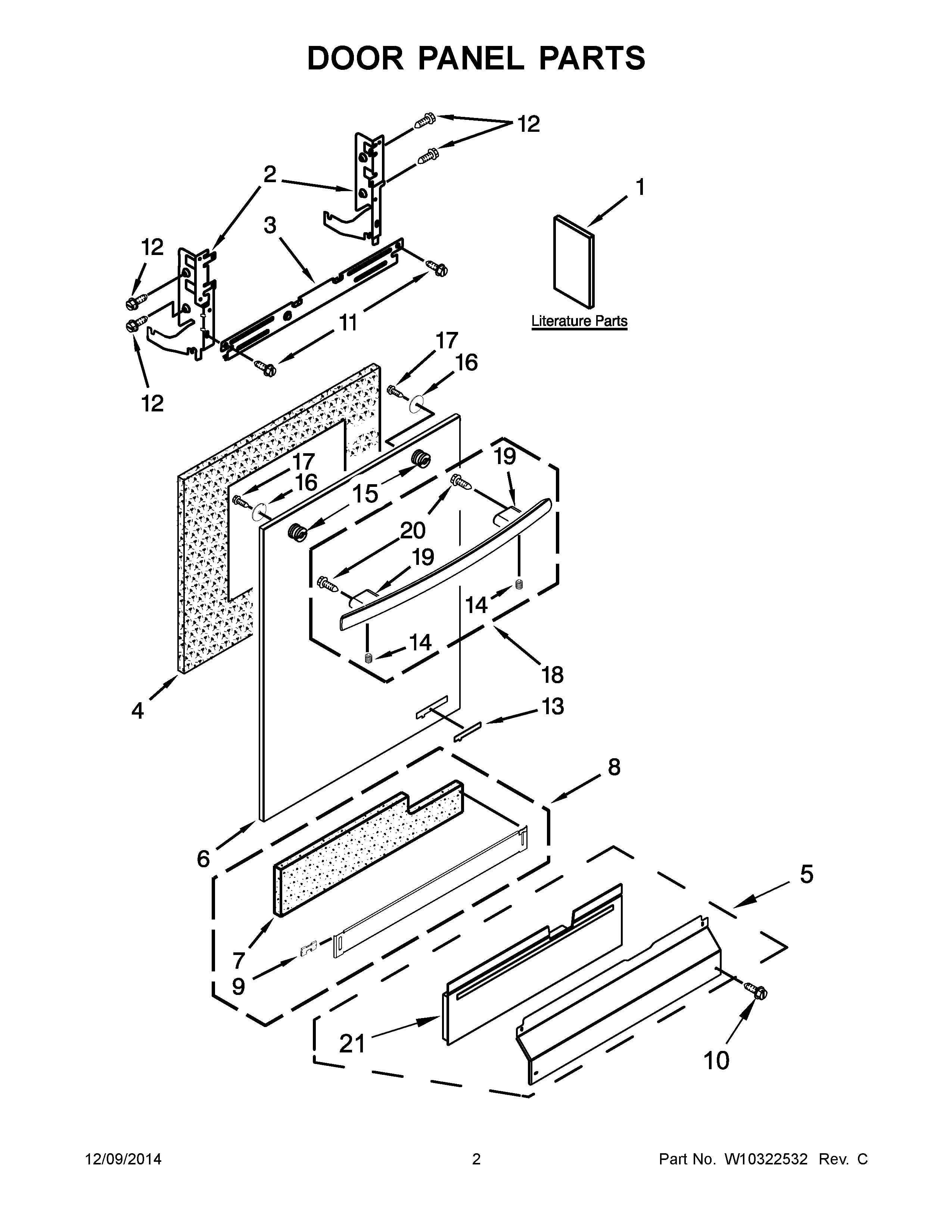

JDB3650AWY3 02 – DOOR PANEL PARTS

Products

PositionProduct
1CTECH SHEET
1AMAY W10300216
1MAY W10282554
1DMAY W10158347
1BMAY W10300217
2MAY 8534854
2AMAY 8534853
3MAY 8268983
4MAY W10073520
5AMAY W10287592
5MAY W10287593
6PANEL, FULL FRONT (INCLUDES ITEMS 4, 13, 14, 16 & 17) (BRONZE)
6BPANEL, FULL FRONT (INCLUDES ITEMS 4, 13, 14, 16 & 17) (STAINLESS)
6APANEL, FULL FRONT (INCLUDES ITEMS 4, 13, 14, 16 & 17) (BLACK)
7INSULATION, TOE PANEL
8TOE PANEL (INCLUDES ITEMS 7 & 9) (BLACK)
8ATOE PANEL (INCLUDES ITEMS 7 & 9) (WHITE)
9CLIP, GROUNDING
10SCREW (BLACK)
10AWP3400836 Whirlpool Dishwasher Screw
11Screw
12SCREW
14MAY W10276608
15AMAY W10208695
15STUD, MOUNTING
16PLATE, BACKING
17MAY W10123421
18BASSEMBLY, BADGE (WHITE)
18ASSEMBLY, BADGE (OILED BRONZE)
18AASSEMBLY, BADGE (BLACK)
19BSTANDOFF (L.HAND(WHITE))
19ASTANDOFF (L.HAND(BLACK))
19ESTANDOFF (R.HAND(WHITE))
19DSTANDOFF (R.HAND(BLACK))
19CSTANDOFF (L.HAND(BRONZE))
19STANDOFF (R.HAND(BRONZE))
20MAY W10201588
21MAY W10350437
