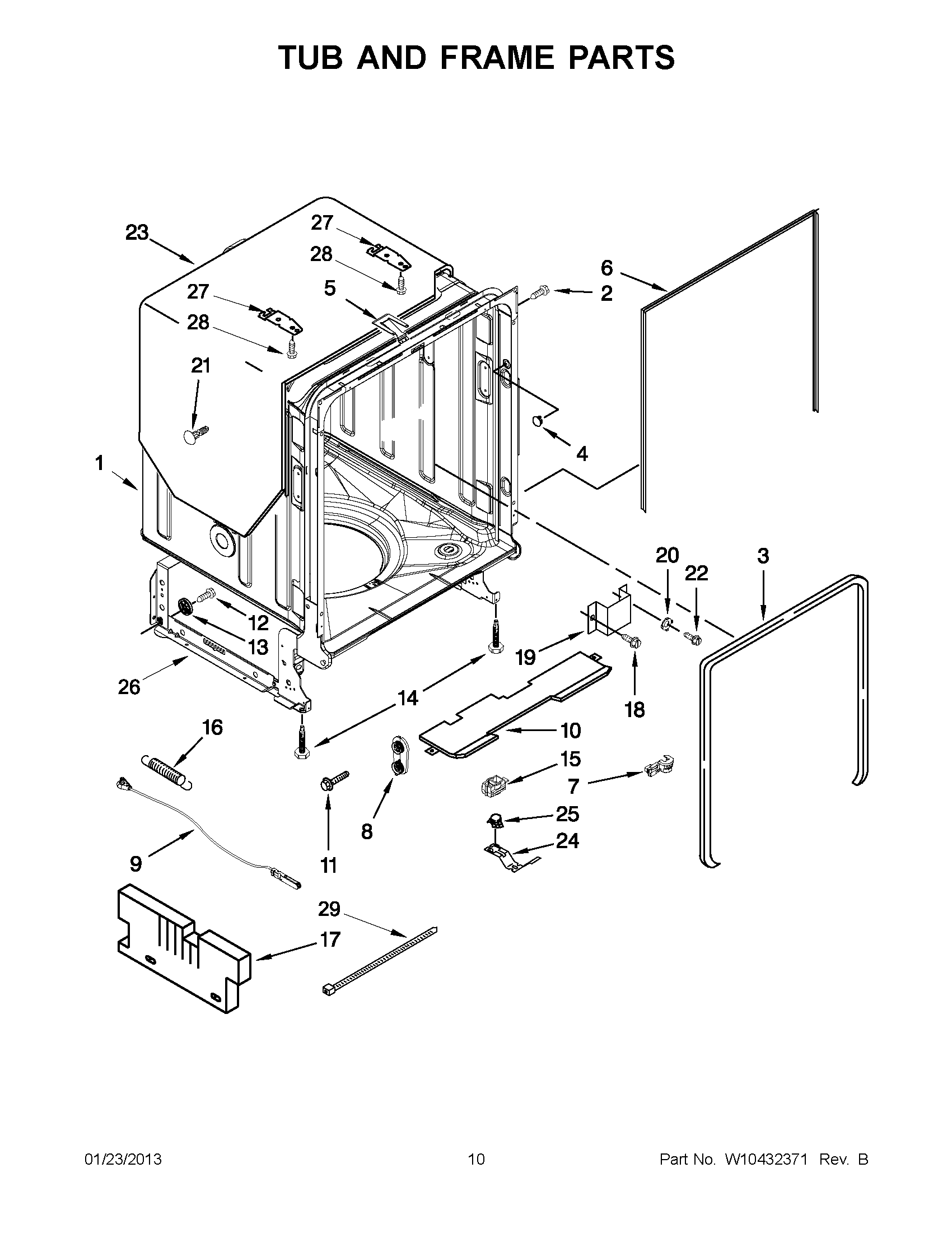

JDB3650AWY5 05 – TUB AND FRAME PARTS

JDB3650AWY5 05 – TUB AND FRAME PARTS

Written by

in

JDB3650AWY5 05 – TUB AND FRAME PARTS

Products

Position	Product
1	MAY W10390317
2	MAY W10348407
3	MAY W10112096
4	MAY W10082838
5	MAY W10317686
6	SEAL, CABINET
7	MAY W10337661
8	DOOR BALANCE ASSEMBLY
9	CABLE, DOOR ASSEMBLY
10	INSULATION BOTTOM
11	SCREW
12	MAY W10348411
13	WHEEL, LEG
14	MAY W10304228
15	MAY W10292870
16	MAY 8270020
16	SPRING, DOOR BALANCE
17	SIDE SHIELD (RIGHT AND LEFT)
18	MAY 3400892
19	MAY 8268991
20	WASHER, PRONGED CUP
21	RETAINER, PUSH
22	MAY 3400014
23	MAY 8573239
24	MAY W10450559
25	MAY W10339474
26	MAY W10398392
27	MAY 8269145
28	MAY 3367670
29	MAY 8539404
